CRL-U.S. Aluminum Bronze Black Anodized 250 Series Narrow Stile Inactive Leaf of Pair 3'0 x 7'0 Offset Hung with Geared Hinged Complete ADA Door with Lock Indicator, Cylinder Guard - for 1" Glazing

• Prepped for DH299 geared hinges (included)
• Prepped for standard DH184 3-point lock, DH004 cylinders, LI001 indicator, and cylinder guard (included)
• Prepped for standard PR032/PR034 push-pull hardware (included)
• Accommodates 1" (25 mm) glazing (not included); 1/4" or 3/16" (6 or 5 mm) also available

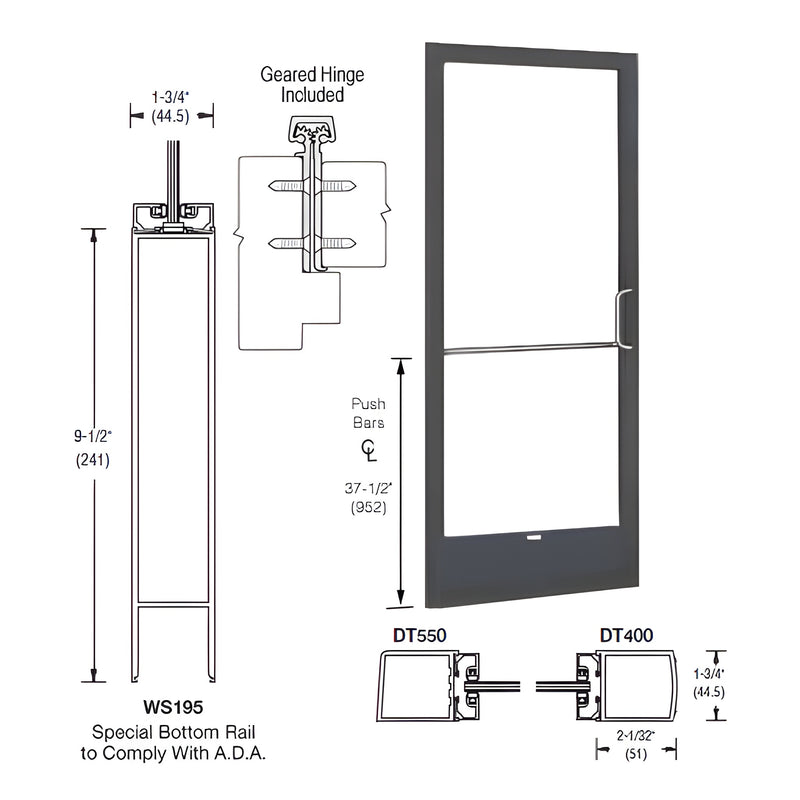

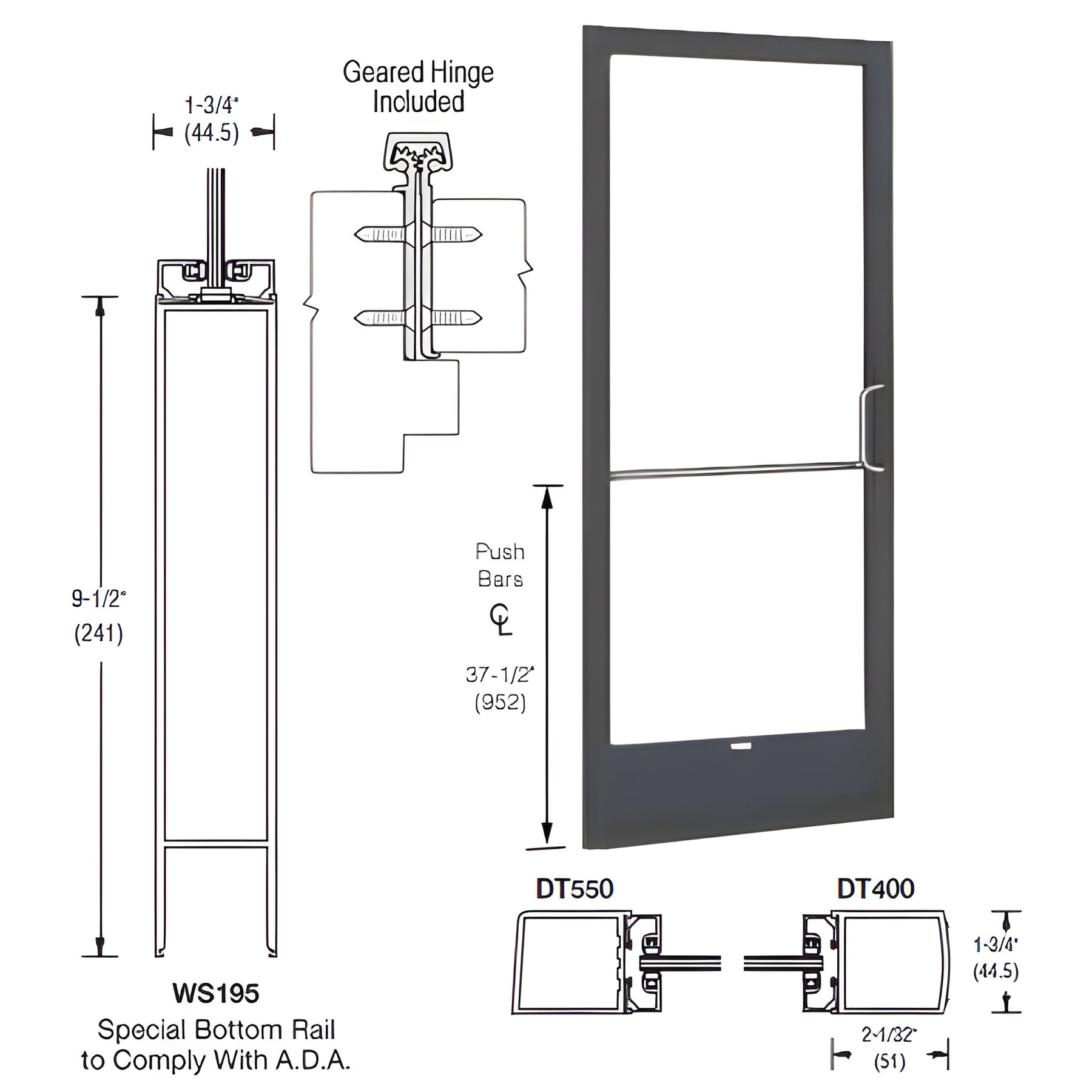

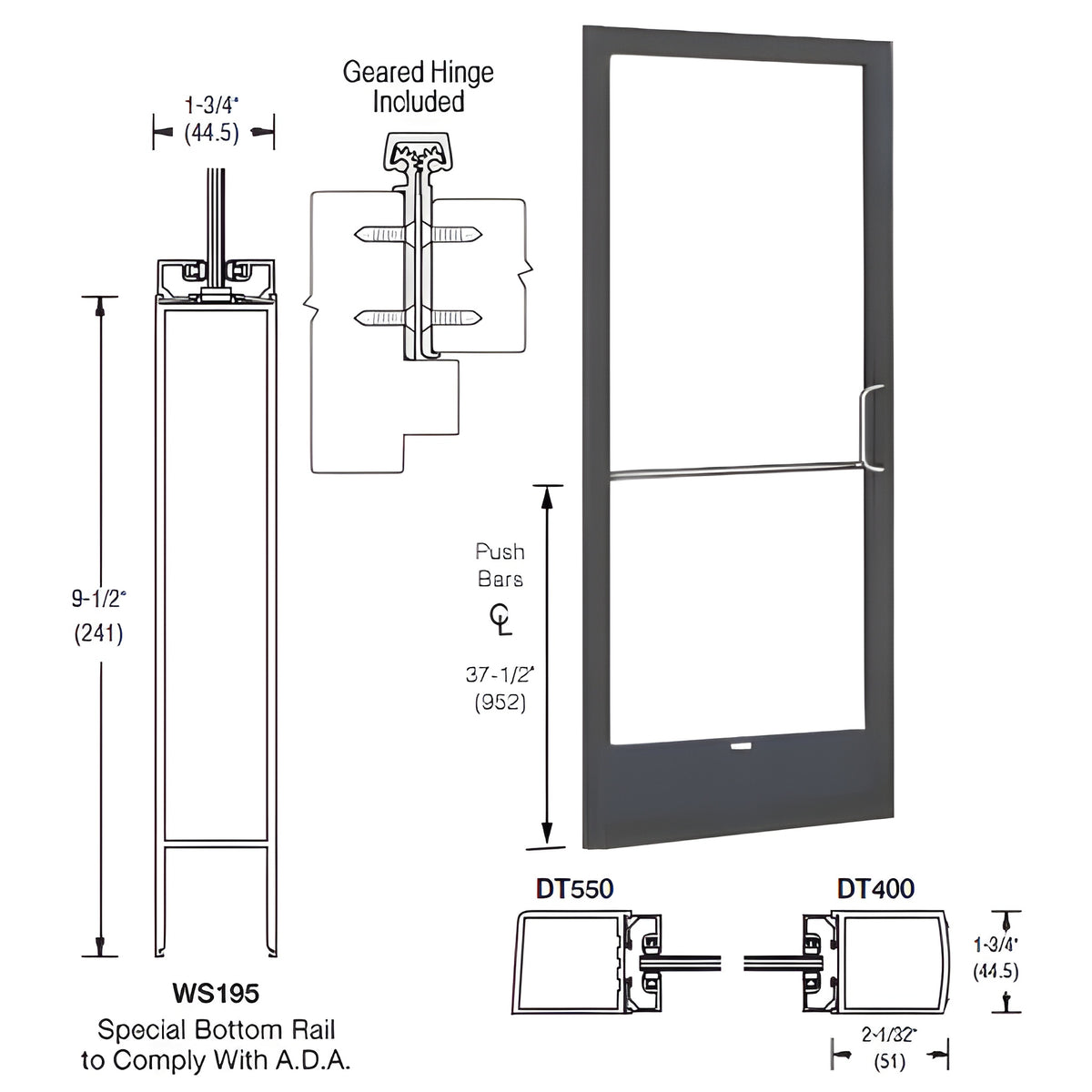

• 250 narrow stile door with 9-1/2" (241 mm) ADA bottom rail for a 36" x 84" (914 mm x 2.13 m) inactive leaf of pair

Stock narrow stile aluminum door — ready to ship: U.S. Aluminum's stocking program delivers stock-size narrow stile doors for exterior and interior applications. Available in Clear Anodized and Bronze Anodized finishes as single doors or pairs, in Offset Pivot and Center Pivot versions. Ideal for projects needing quick-ship aluminum doors with ADA-compliant 9-1/2" bottom rail and 1" glazing capacity.

These doors include standard 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and 9-1/2" (241 mm) A.D.A. access bottom rails. Standard hardware/features: push bar, offset pull handle, panic exit devices (select models), lock cylinder, glass stops, and glazing gaskets. You supply the glazing. Doors are packed for immediate shipment or pick up from all U.S. Aluminum and CRL service centers.
STANDARD FEATURES: – Offset pivots – Push bar and offset pull handle – Hookbolt lock (single doors) – Three-point lock (paired doors) – Lock indicator – Cylinders – Cylinder guard – Glazing gaskets
AVAILABLE OPTIONS: Panic devices – Continuous geared hinges – Butt hinges – Vanguard security astragal
SKU: 1CD22822R136

Order now to secure stock-size narrow stile aluminum doors for fast delivery and ADA-compliant performance.
