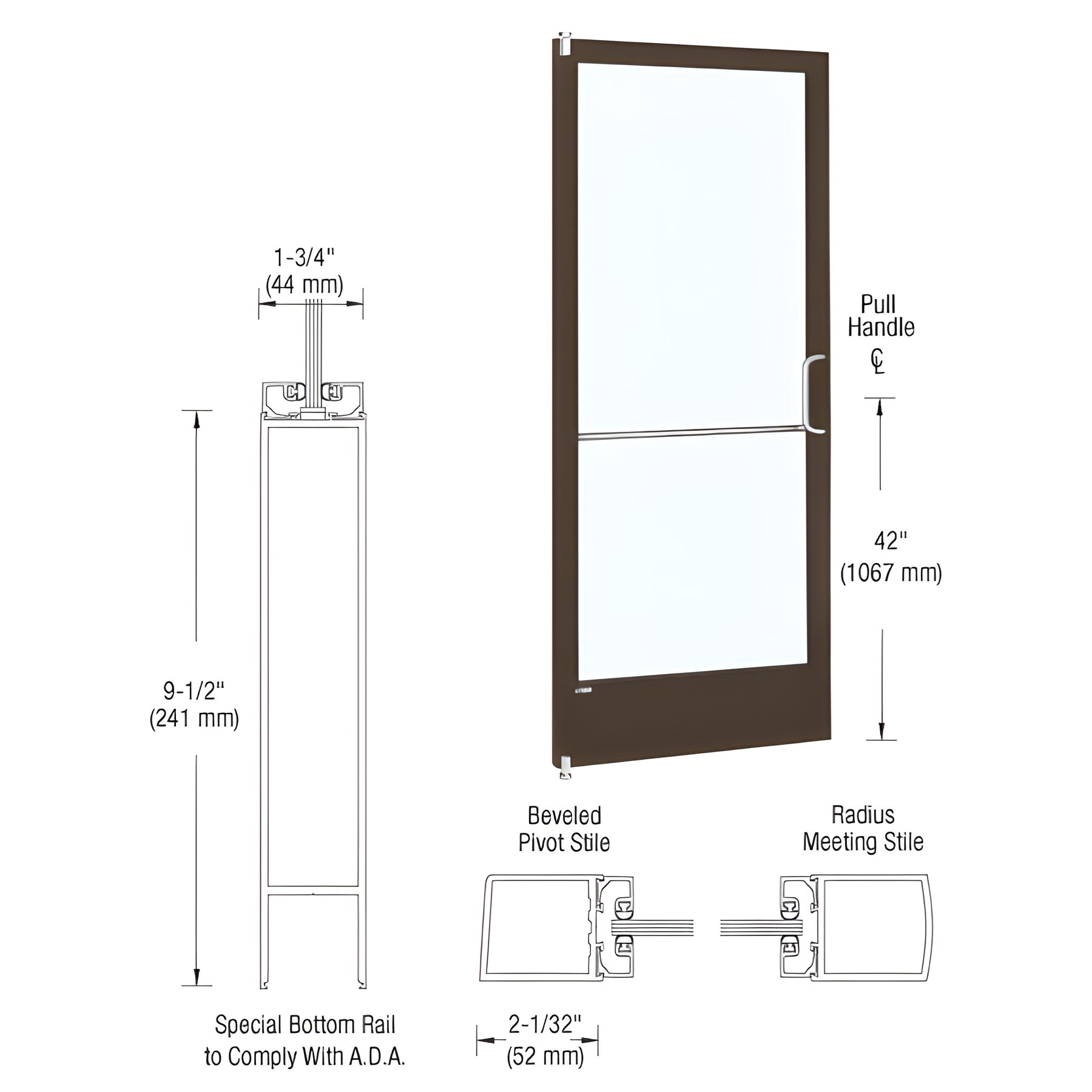

- 250 Narrow Stile Door with 9-1/2" (241 mm) ADA Bottom Rail for a 36" x 84" (914 mm x 2.13 m) Inactive Leaf of Pair
- Accommodates 1/4" or 3/16" (6 or 5 mm) Glazing (Not Included), 1" (25 mm) Also Available
- Prepped for Offset Pivots, Door Closer (Not Included)
- Push Bar and Offset Pull Handle
- Hookbolt Lock (Single Doors)
- Three-Point Lock (Paired Doors)
- Lock Indicator
- Cylinders
- Cylinder Guards
- Glazing Gaskets AVAILABLE OPTIONS:
- Panic Devices
- Continuous Geared Hinges
- Butt Hinges
- Vanguard Security Astragal Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
When you need a quality door in a hurry, our Stocking Program
is the solution. U.S. Aluminum now offers a line of stock size Narrow Stile Doors for exterior and interior applications. Both Clear Anodized and Bronze Anodized finishes are available as single doors or in pairs in two versions: Offset Pivot and Center Pivot.
These Offset Pivot Doors include standard 2" (51 mm) Stiles, 2-1/8" (54 mm) Top Rails, and 9-1/2" (241 mm) ADA Access Bottom Rails. Other standard features include a Push Bar, Offset Pull Handle, Lock, Lock Indicator, Cylinder and Cylinder Guards, Glass Stops, and Glazing Gaskets. You supply the glass. Doors are packed for immediate shipment or pickup from all U.S. Aluminum and CRL Service Centers. Pricing is available from U.S. Aluminum.
STANDARD FEATURES
Push Bar and Offset Pull Handle
Hookbolt Lock (Single Doors)
Three-Point Lock (Paired Doors)
Lock Indicator
Cylinders
Cylinder Guards
Glazing Gaskets
AVAILABLE OPTIONS
Panic Devices
Continuous Geared Hinges
Butt Hinges
Vanguard Security Astragal
