CRL-U.S. Aluminum 250 Offset Narrow-Stile Hinge - Black Anodized ADA
Item# CD22922R136105
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Prepped for Offset Overhead Concealed 105º Closer (Not Included)
- Prepped for DH299 Geared Hinge (Included)
- Prepped for Standard PR032/PR034 Push-Pull Hardware (Included)
- 36" x 84" (914 mm x 2.13 m) inactive leaf of a pair — SKU: CD22922R136105
- 250 Narrow Stile Door with 9-1/2" (241 mm) ADA bottom rail

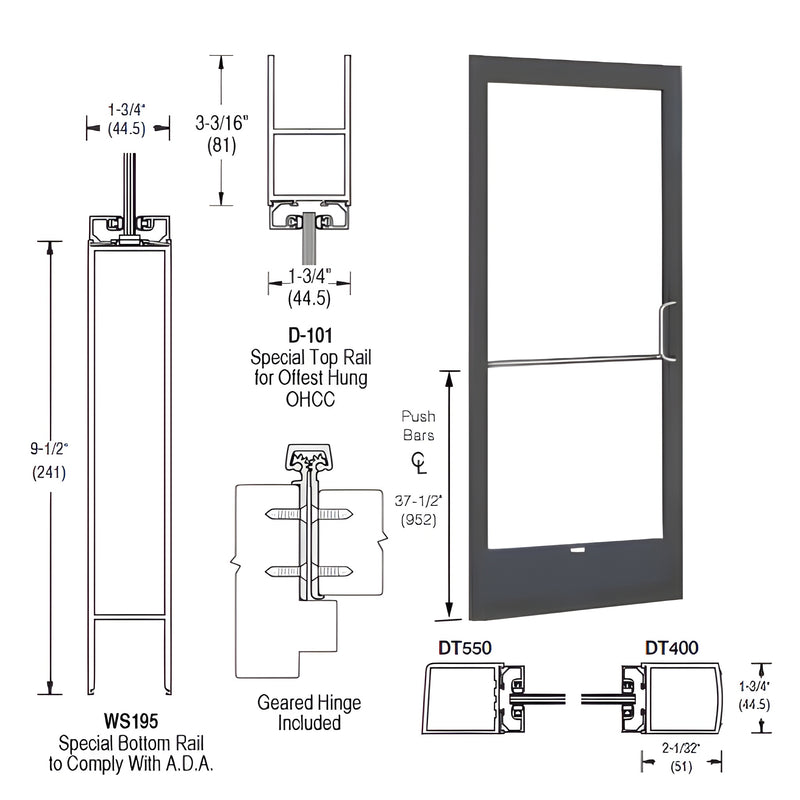

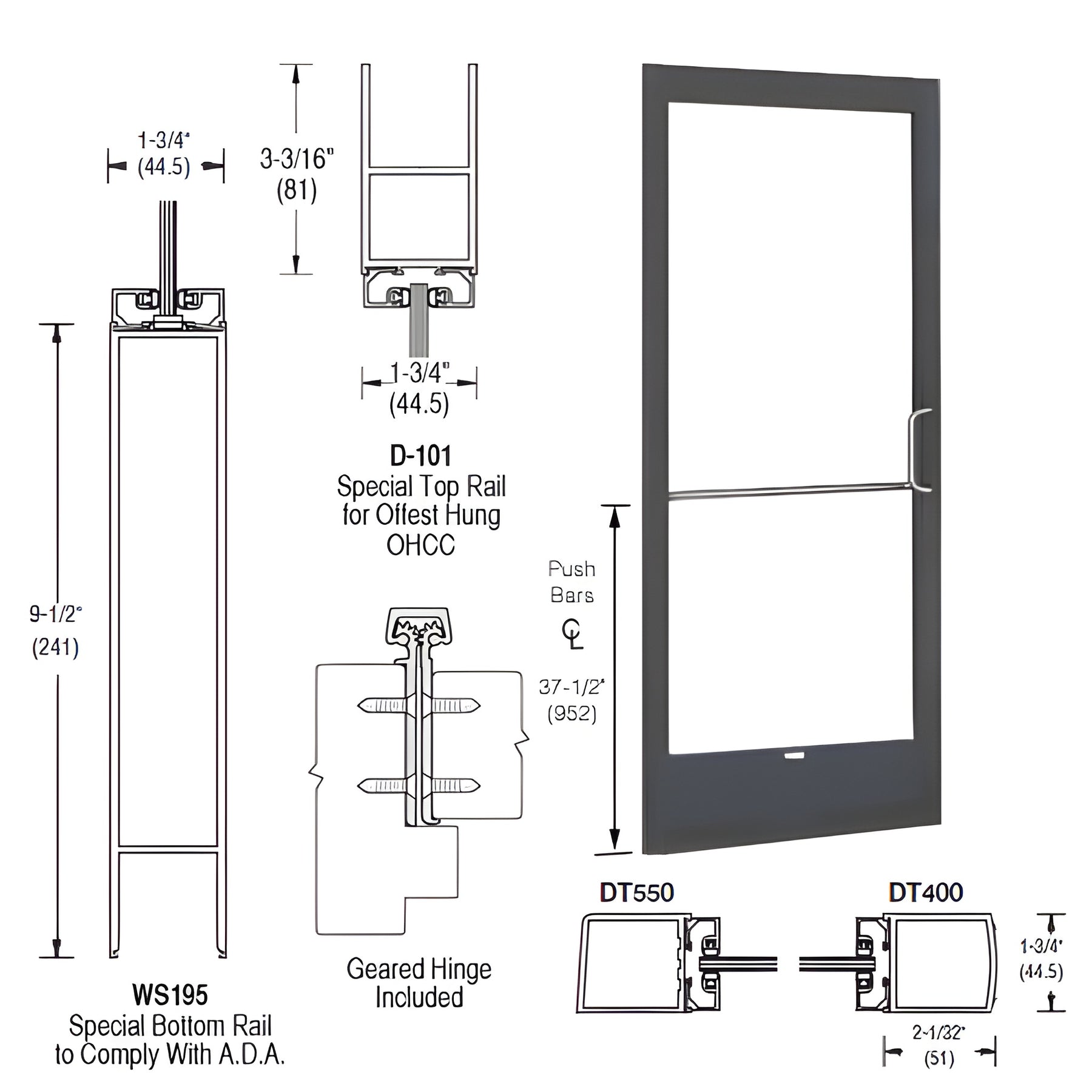

Series 250 Narrow Stile Door — Commercial-grade 36x84 narrow stile door with 2" (51 mm) stiles, 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Prepped for an offset overhead concealed 105º closer, equipped for DH299 geared hinge and standard PR032/PR034 push-pull hardware, and fitted for a 3-point lock strike. Ideal as an inactive leaf in a pair for storefronts, offices, and accessible entrances requiring ADA-compliant bottom rails and concealed closer prep.
Doors include special 3-3/16" (81 mm) top rails specifically for offset overhead concealed closers to ensure proper installation and reliable closer integration.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Need assistance or a quote for SKU CD22922R136105? Contact our sales team to get started.
