CRL-U.S. Aluminum 250 Narrow Stile 3'x7' Offset Hung ADA Door, Black
Item# CD21822R036
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- 250 Narrow Stile Door with 9-1/2" (241 mm) ADA bottom rail — fits 36" x 84" (914 mm x 2.13 m) opening using included geared hinge (DH299)
- Accepts 1/4" (6 mm) glazing (not included); 1" (25 mm) option also available
- Prepped and supplied with DH299 geared hinge
- Prepped for standard DH129 hookbolt, DH004 cylinders, LI001 indicator, and cylinder guard (all included)
- Complete with PR034/PR032 push/pull hardware

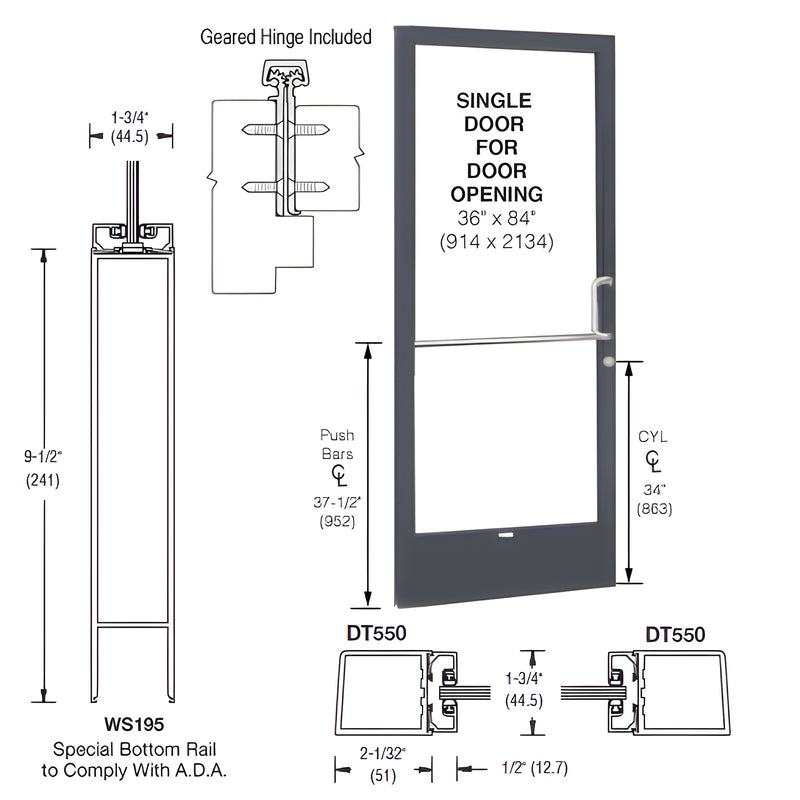

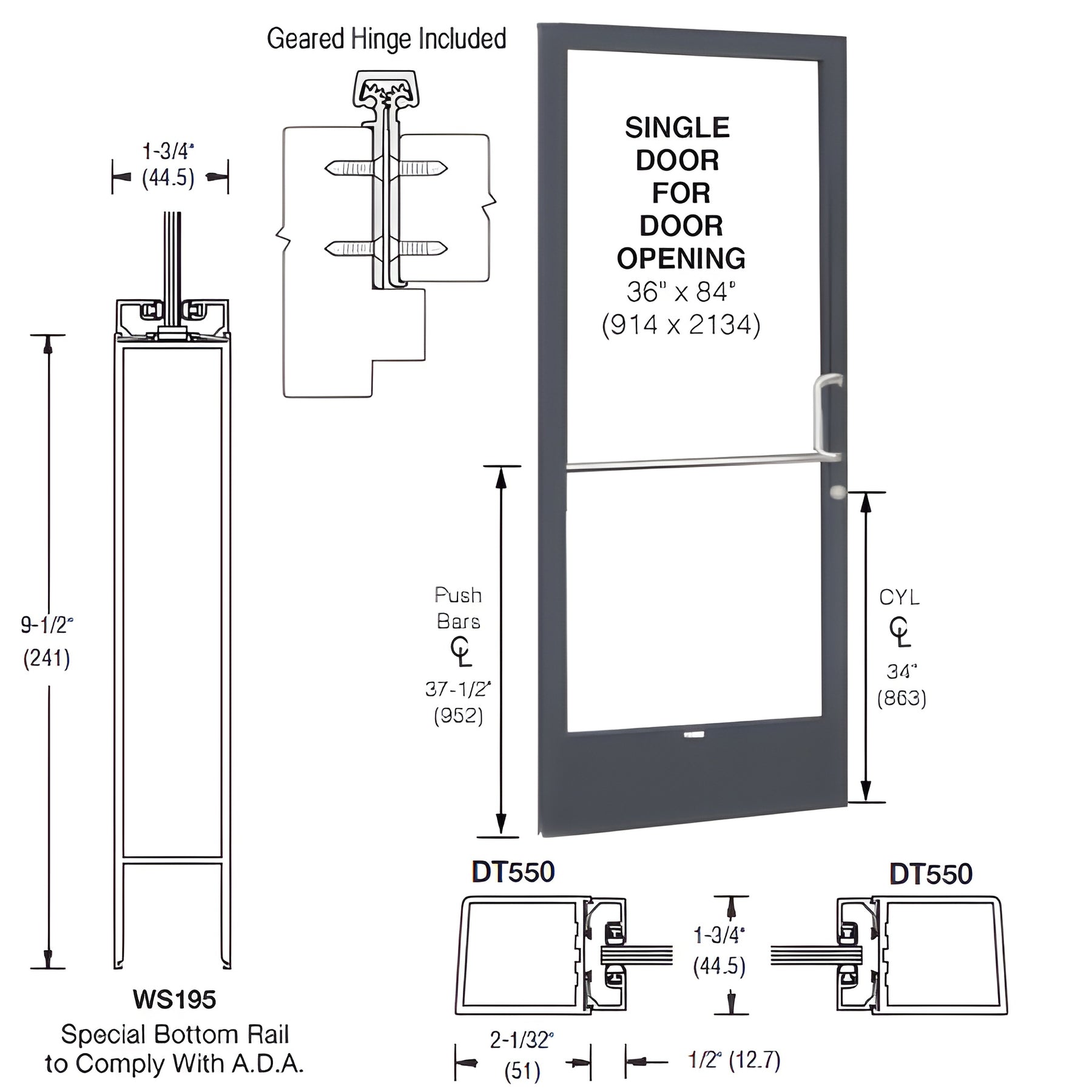

CRL 250 Narrow Stile Door 36" x 84" (914 mm x 2.13 m) — SKU: CD21822R036 complete with standard hookbolt lock, lock indicator, cylinders, cylinder guard, push/pull hardware, and geared hinge. Fabricated with a 2-1/8" (54 mm) top rail and 9-1/2" (241 mm) ADA bottom rail for accessibility compliance and narrow-stile aesthetics.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor and video card settings.
Order SKU CD21822R036 or contact us for glazing options and installation accessories.
