CRL-U.S. Aluminum Series 250 36x84 Bronze Black Narrow Stile Hinge

• Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders — ready for immediate installation
• Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance on qualifying widths
• Custom fabricated to accept a wide range of optional hardware applications and commercial glass entrance door configurations

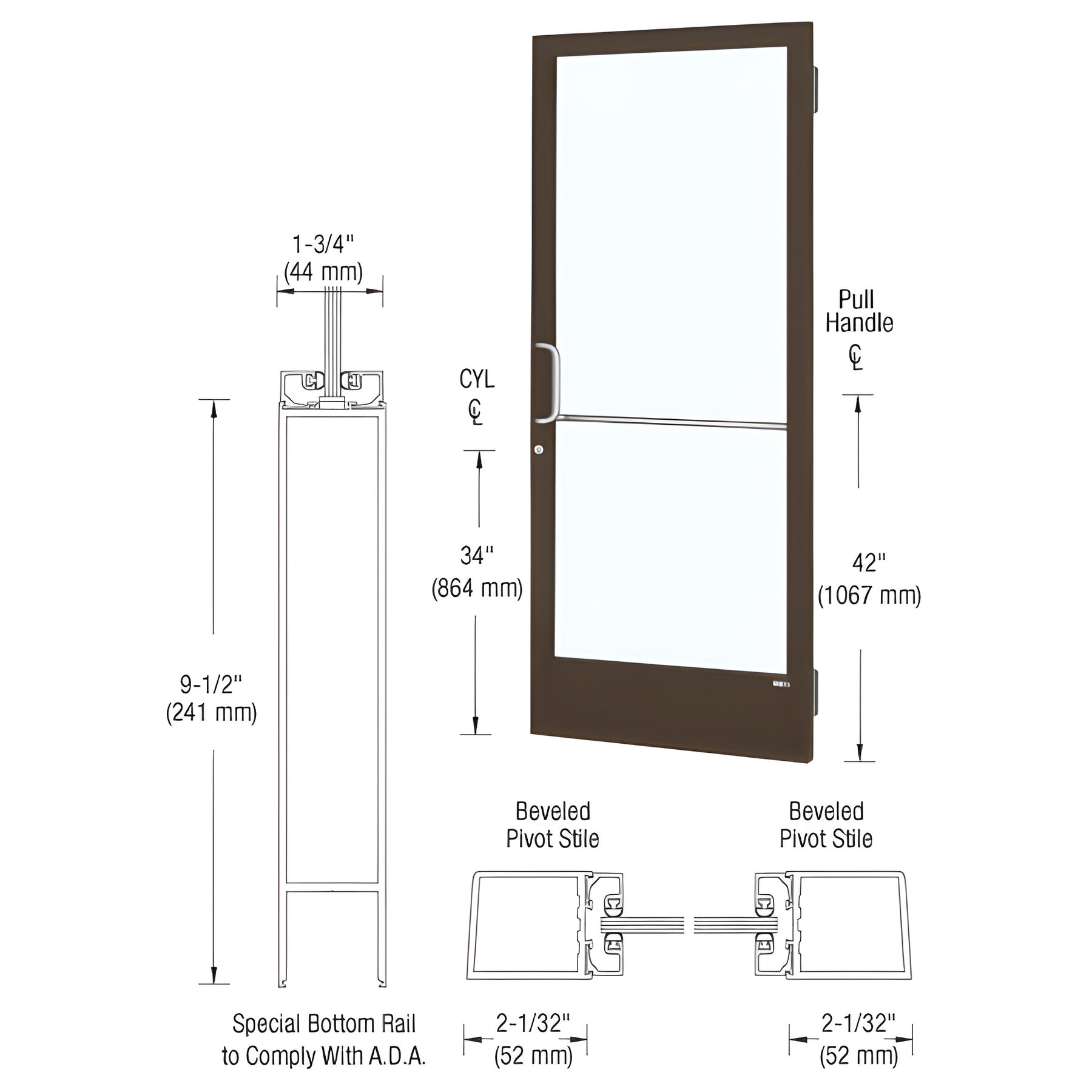

This CRL Custom Narrow Stile Entrance Door (SKU: CD21522) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial glass entrances, the door includes stiles prepped for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication, it supports optional hardware upgrades and insulated glass options for thermal performance.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements.

Order CRL CD21522 today to spec a narrow stile commercial glass entrance with keyed-alike security and ADA-ready bottom rail.
