CRL-U.S. Aluminum Series 250 Narrow-Stile Geared Hinge, Anodized Black

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)

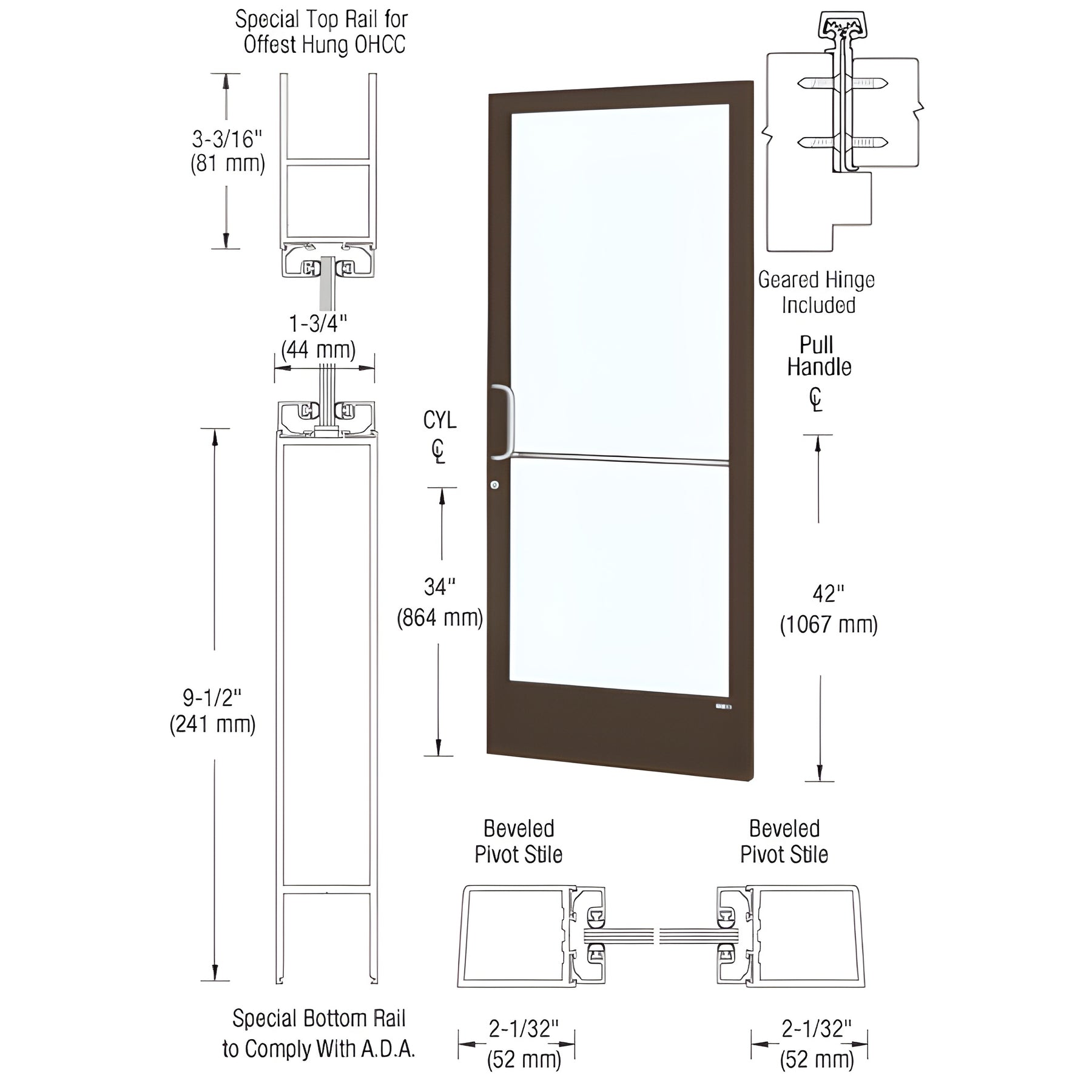

CRL Custom Narrow Stile Entrance Door (SKU: CD21922) is built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard features include stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). This narrow stile entrance door is ready for custom fabrication to support a wide range of optional commercial hardware applications, making it ideal for ADA-compliant storefronts and retrofit projects.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent damage in transit. Door widths less than 36" (914 mm) may not meet A.D.A. inspection requirements.

Why choose CD21922? Durable narrow stile construction, ADA-compliant bottom rail, and flexible hardware accommodation simplify commercial installations and storefront upgrades.

Order CD21922 today or contact CRL for custom hardware options and exact shipping weights.
