CRL-U.S. Aluminum 250 Narrow-Stile Geared Hinge, Black, Surface-Mount

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• 9-1/2" (241 mm) ADA-compliant Bottom Rail installed
• Custom fabricated to accept a wide range of optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass (standard) or optional 1" (25 mm) tempered insulating unit (glass not included)

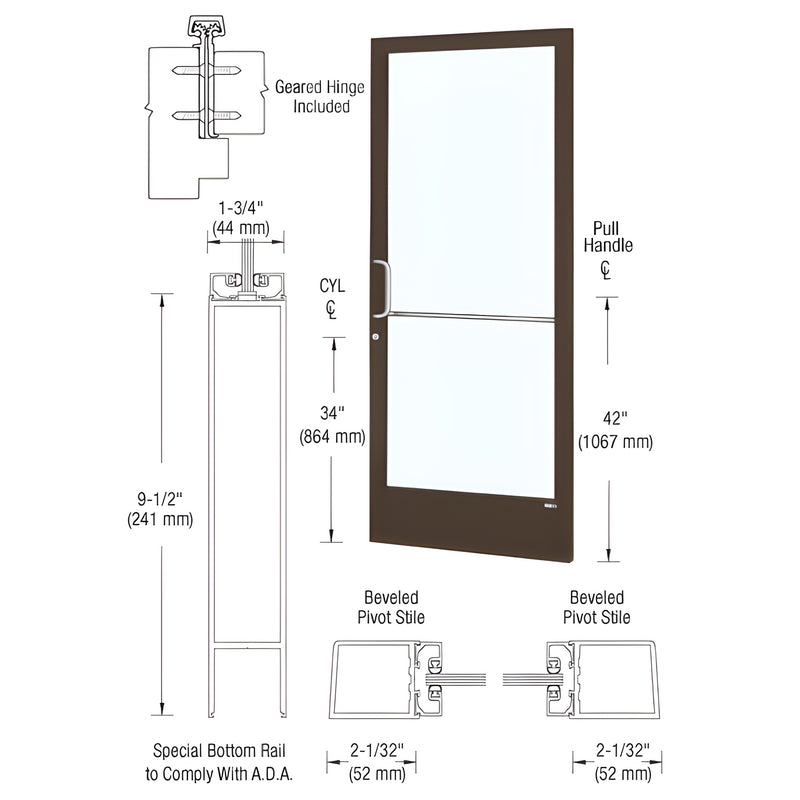

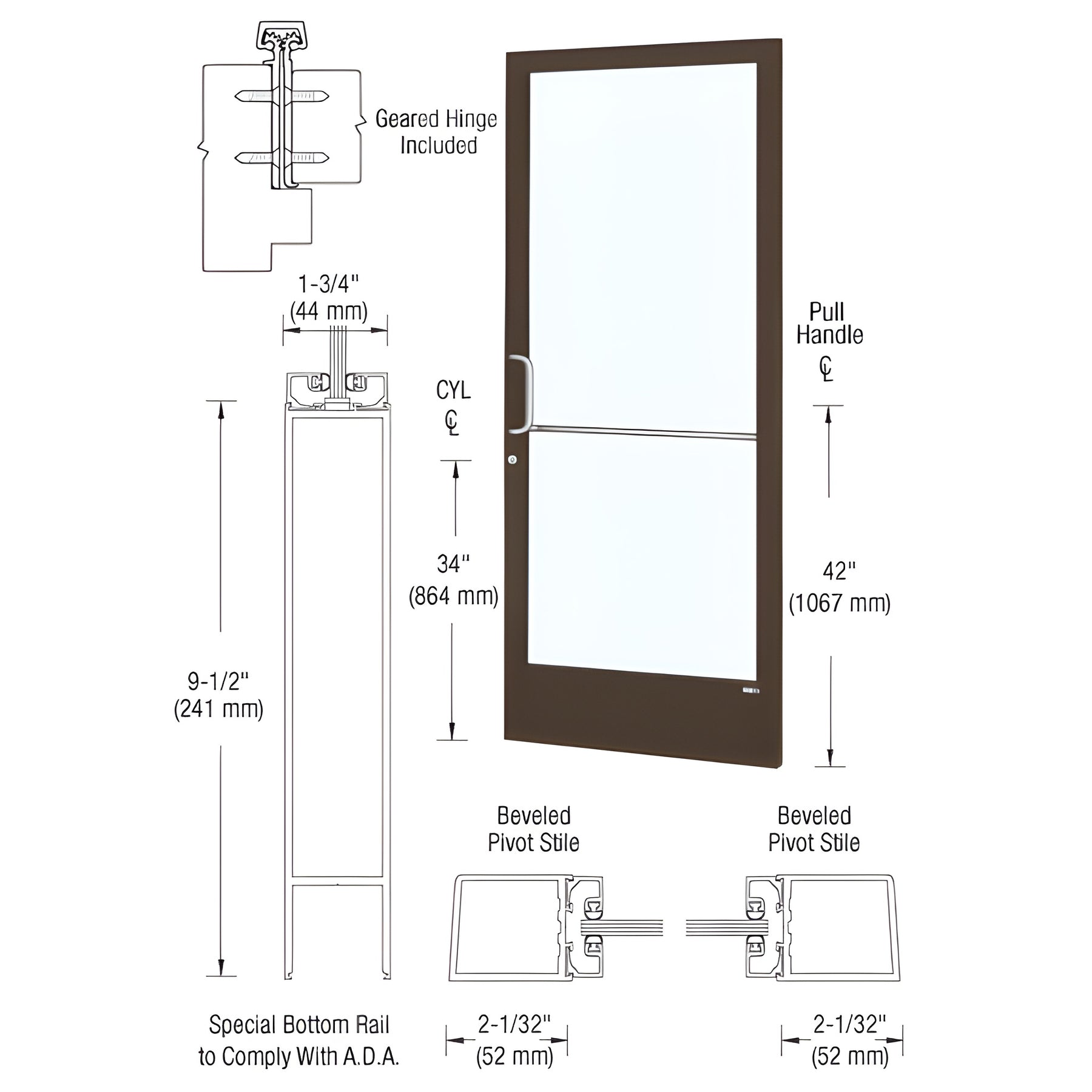

This CRL Custom Narrow Stile Entrance Door (SKU: CD21822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed as a narrow stile aluminum entrance door for commercial applications, it includes stiles configured for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The door ships with protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage and requires customer installation. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.


Order SKU CD21822 today to specify a customizable, ADA-ready narrow stile aluminum entrance door for commercial storefronts.
