CRL-U.S. Aluminum Bronze Entrance Door Butt Hinge for Concealed Closer

• Accommodates 1/4" (6 mm) tempered glass with the option for 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. for accessible entries
• Custom fabricated to accept a wide range of optional hardware applications (butt hinges, pivots, locks)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

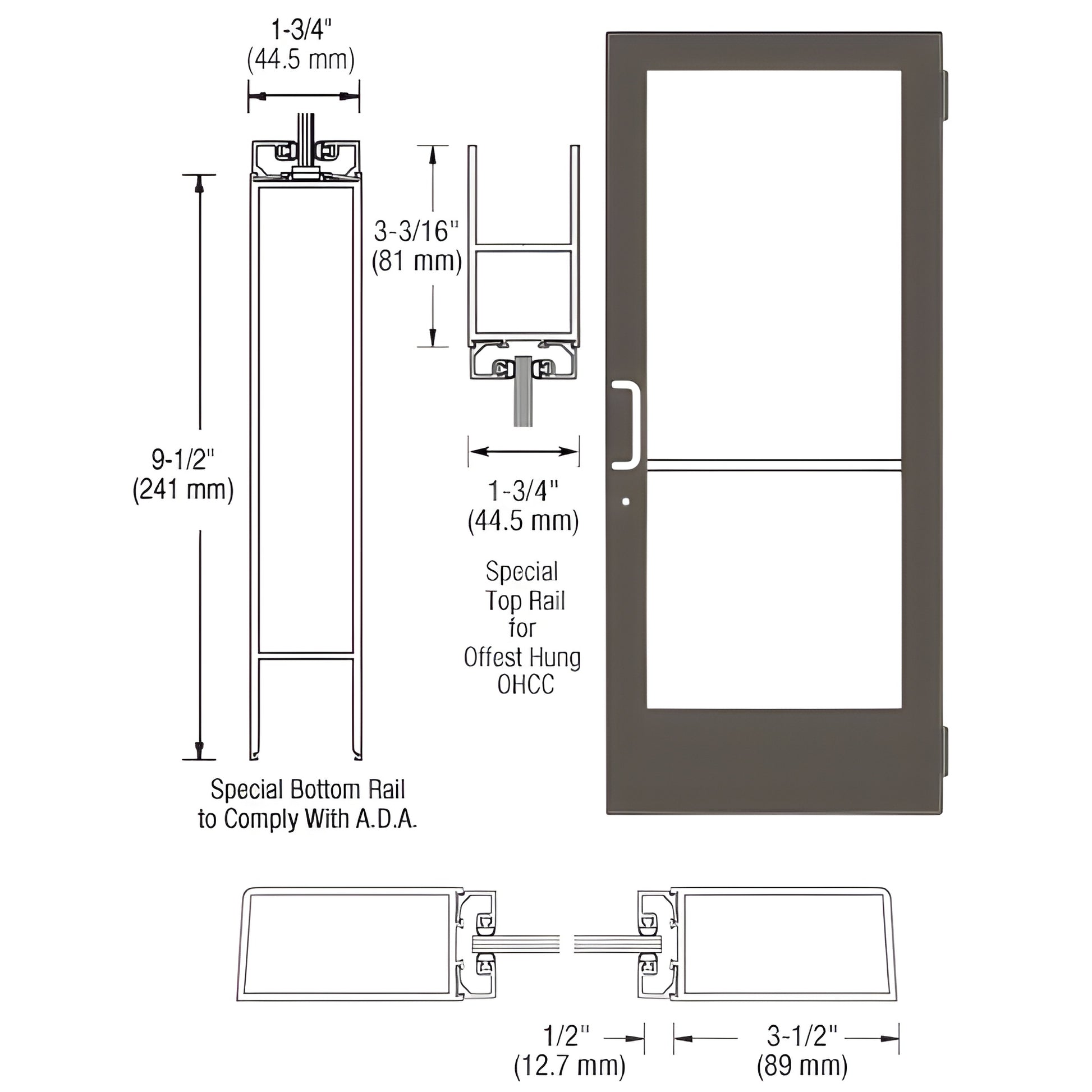

This Custom Medium Stile Entrance Door (SKU: CD41422) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Stiles are prepared for butt hinge hardware and include glass stops for 1/4" (6 mm) tempered glass (by others). Door is ready for custom fabrication to support optional commercial door hardware and ADA-compliant applications.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed on-site to avoid transit damage. Doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements.

Key differentiators: ADA-ready 9-1/2" bottom rail, accepts insulated tempered glass units, and custom-fabrication for a wide range of commercial hardware options—ideal for storefront and commercial entrance door projects.

Order SKU CD41422 or contact us for a quote and customization options.
