CRL-U.S. Aluminum 400 Geared Hinge, Overhead Closer - Black Anodized

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance on qualifying widths
• Custom fabricated to accept a wide range of optional hardware applications (gear hinge ready)

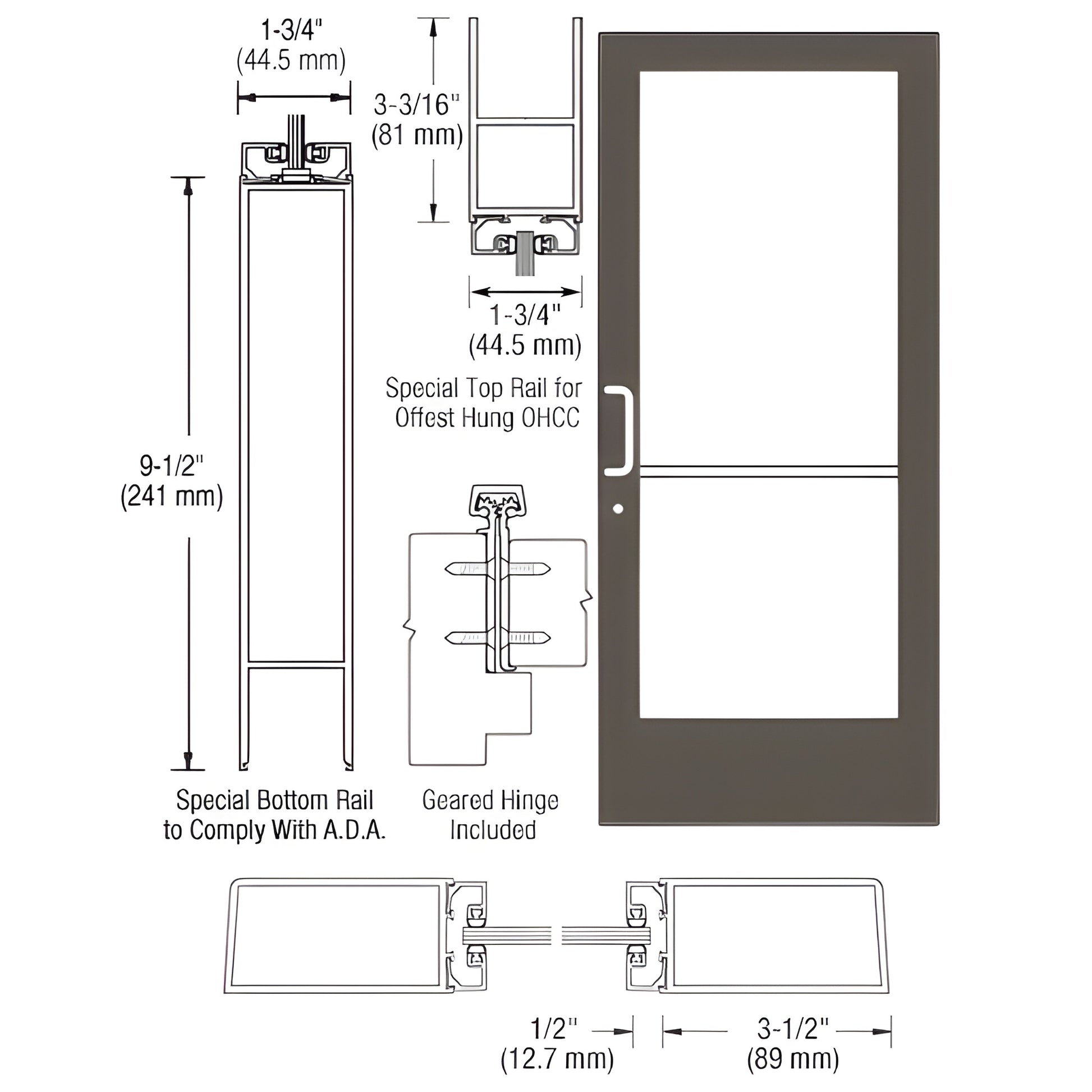

This CRL Custom Medium Stile Entrance Door (SKU: CD41922) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for storefront and commercial entry use, the door ships with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. It is ready for custom fabrication to accommodate optional locks, push/pull sets, and other hardware accessories.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements — confirm dimensions for ADA-compliant installations.

Shop SKU CD41922 — contact CRL for quotes, custom hardware options, or to confirm ADA compliance and glass compatibility.
