CRL-U.S. 400 Black Anodized Geared Hinge for Surface Mount Closer

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
• Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance on qualifying widths
• Custom fabricated to accept a wide range of optional hardware applications

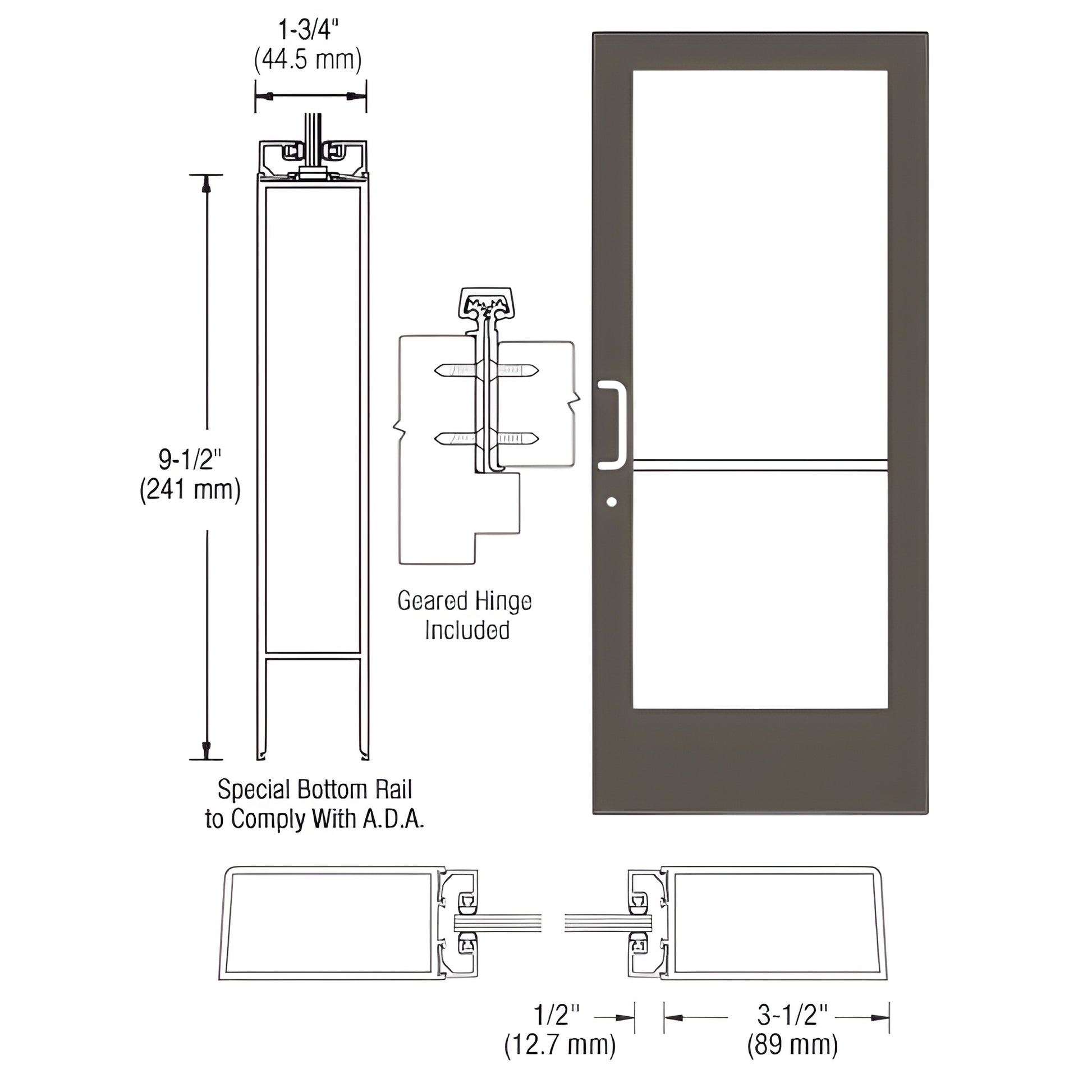

This CRL Custom Medium Stile Entrance Door (SKU: CD41822) is designed for commercial storefront and interior entrance applications. Constructed with 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail, the door features stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). It ships ready for custom fabrication to accommodate optional hardware configurations and keyed‑alike cylinder security.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order the CRL Medium Stile Entrance Door CD41822 for a customizable, ADA‑ready commercial glass door solution — contact us to request shipping weights or place your order.
