CRL-U.S. Series 250 Offset Pivot Door for Surface-Mount Closer, Black
CRL-U.S. Series 250 Offset Pivot Door for Surface-Mount Closer, Black
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD21222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders (SKU: CD21222)
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit for enhanced thermal performance (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept a wide range of optional hardware applications—ideal for commercial storefronts and narrow stile entrance door installations

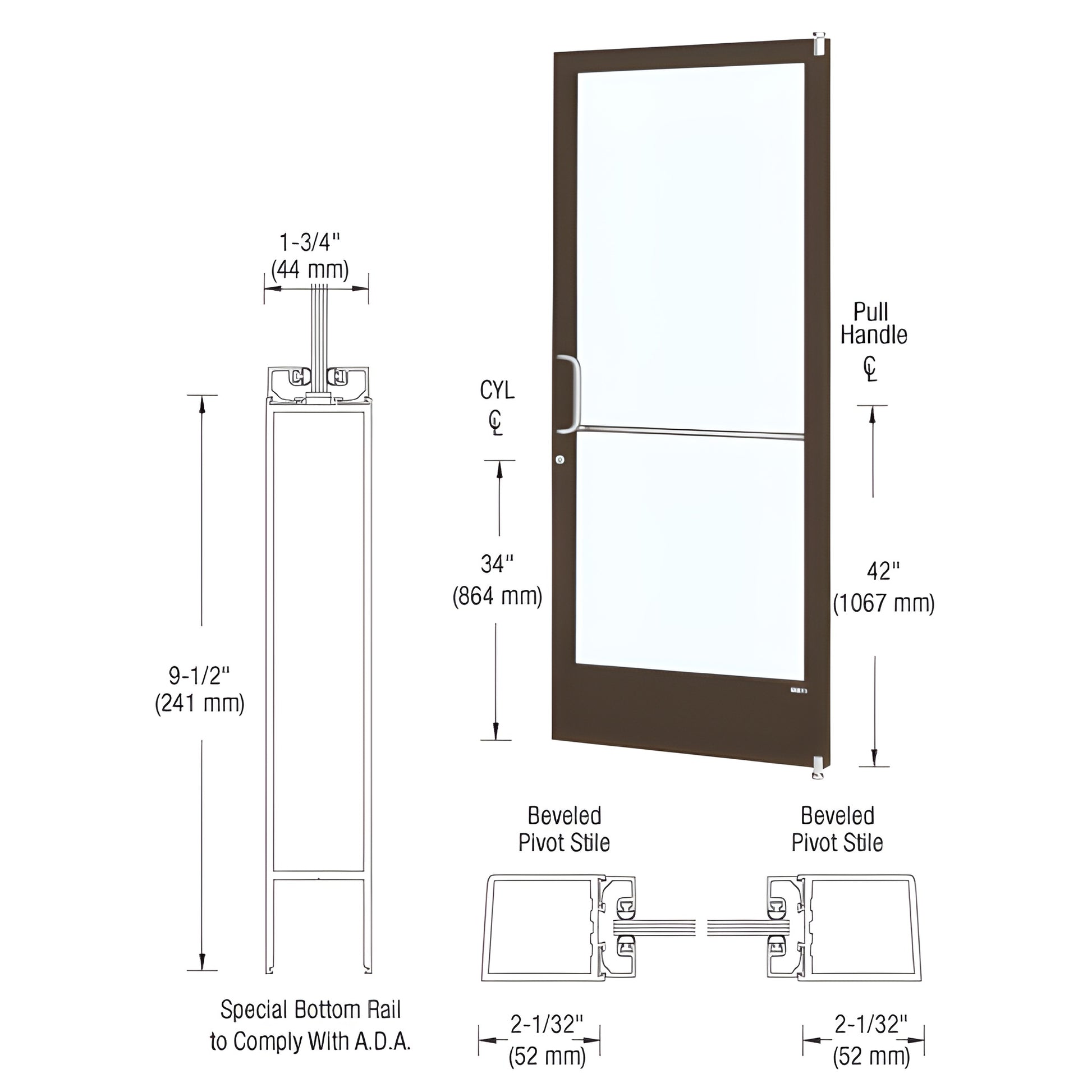

This CRL Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard configuration includes stiles sized for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door ships ready for custom fabrication to accommodate optional commercial hardware and storefront locking systems.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.
Order the CRL CD21222 narrow stile entrance door for a customizable, ADA-ready commercial storefront solution—contact us to get started.
Specifications
BIM Objects - rvt
