CRL-U.S. Aluminum Bronze Black Anodized IG600 Series Custom Up/Over Door Frame for Butt Hinge, and Overhead Concealed Closer

Product Details

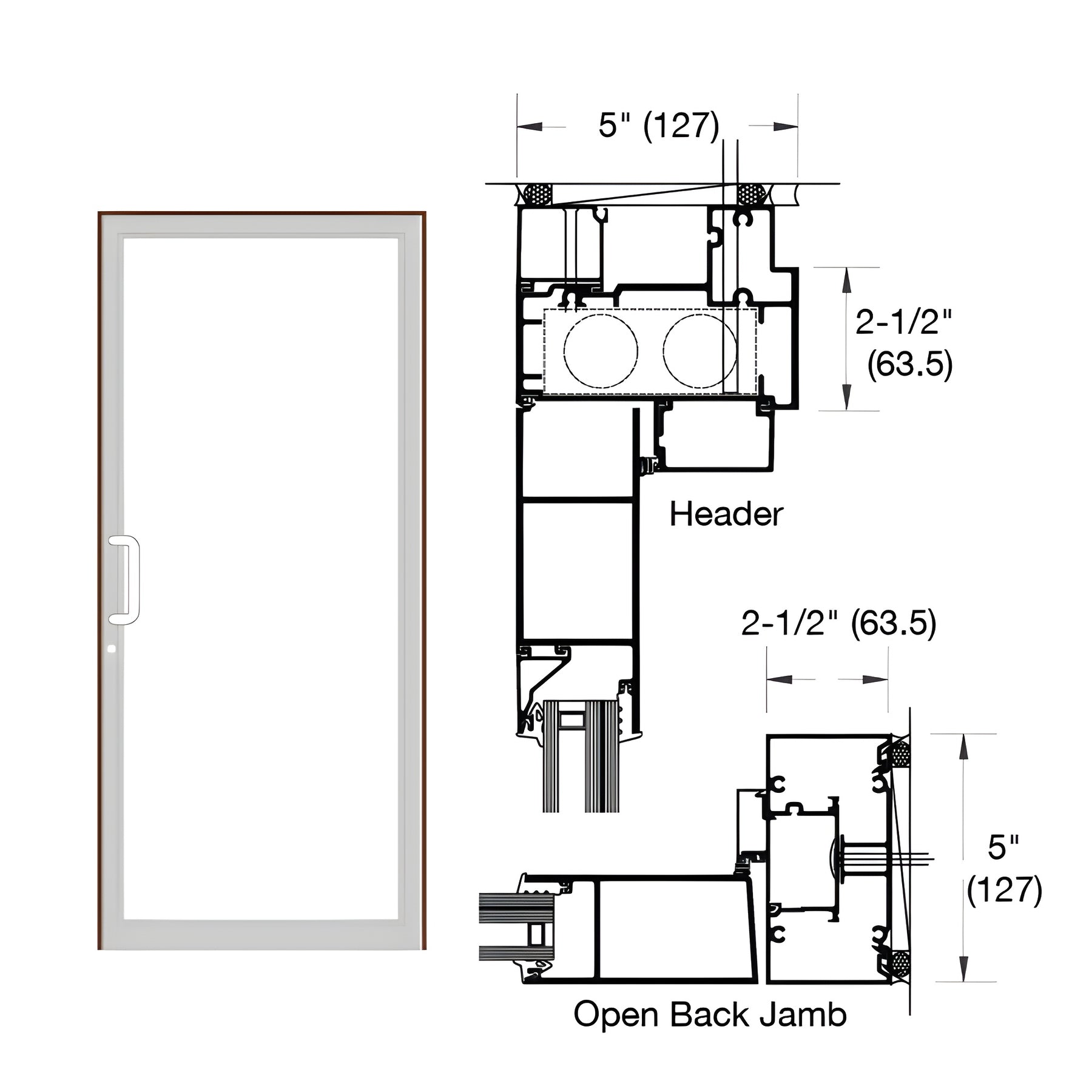

• 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
• Includes Prep for 1-1/2" Pair Butt Hinges (Not Included)
• Includes Prep for Over Concealed Closer and Standard Deadbolt Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Single Up/Over Door Frame is built to accommodate a single butt hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing, constructed using IG626/IG147/IG146 door jambs, IG626/IG146/IG147/IS100 header, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, overhead concealed closer, and standard deadbolt strike.

When installing hurricane impact product always refer to FPA Guidelines.
