CRL-U.S. Aluminum Bronze Black Anodized IG600 Series Custom Up/Over Door Frame for Butt Hinge, CVR Panic, and Overhead Concealed Closer

Product Details

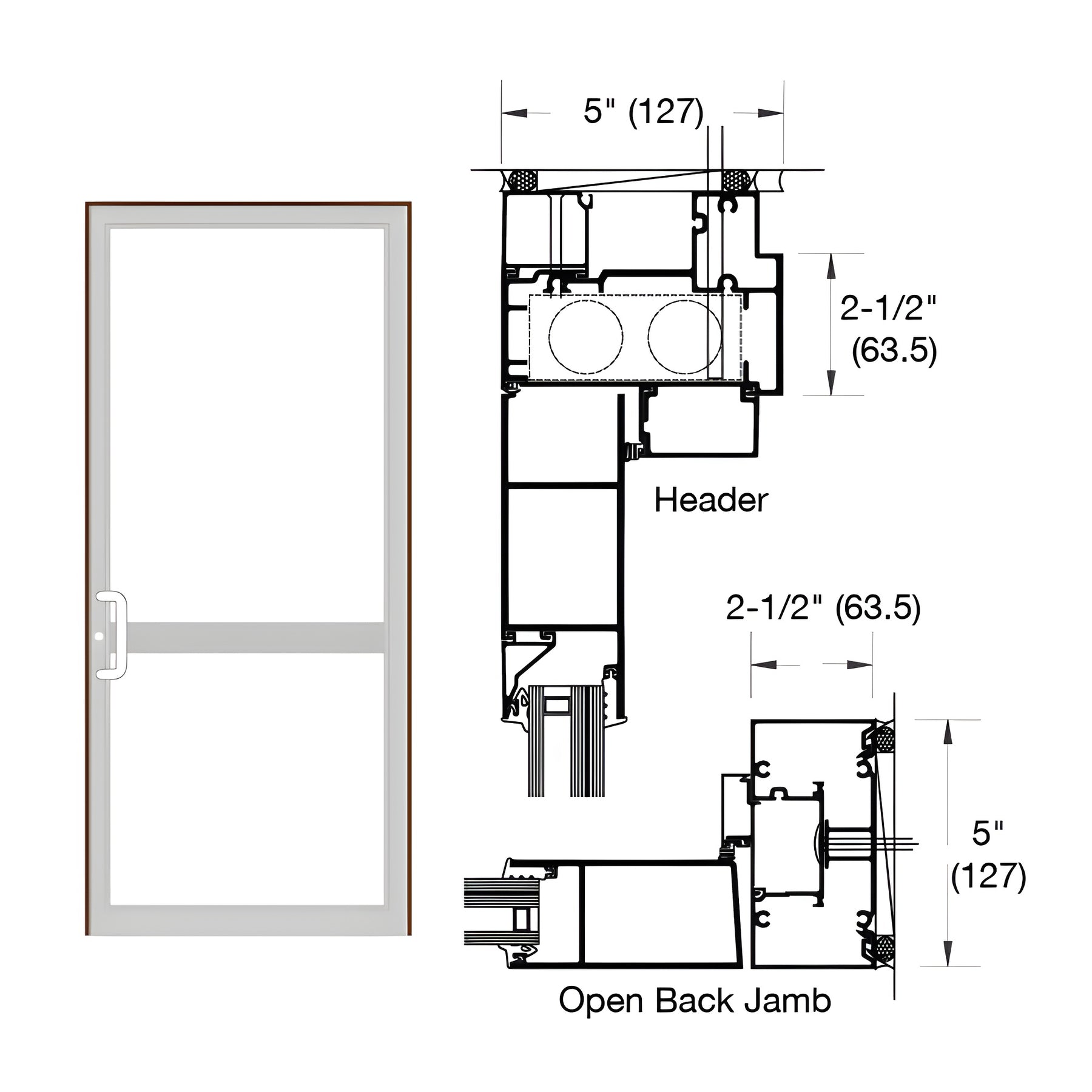

• 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
• Includes Prep for 1-1/2 Pair Butt Hinges (not Included)
• Includes Prep for Over Concealed Closer and Standard CVR Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Single Up/Over Door Frame is built to accommodate a Single Butt Hinged Hurricane Impact Door using 1-5/16"(33) Laminated Impact Glazing, Constructed using IG626/IG147/IG146 Door Jambs, IG677/IG200/IG663 Header, and TH811 Air Threshold, Hardware preparations include 1-1/2 pair of Butt Hinges, Overhead Concealed Closer, and Standard CVR Panic Strike.

When installing hurricane impact product always refer to FPA Guidelines.
