CRL-U.S. Aluminum IG600 Up/Over Door Frame for Geared Hinge & Closer
CRL-U.S. Aluminum IG600 Up/Over Door Frame for Geared Hinge & Closer
Regular price
$2,100.19 CAD
Regular price
Sale price
$2,100.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F71822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

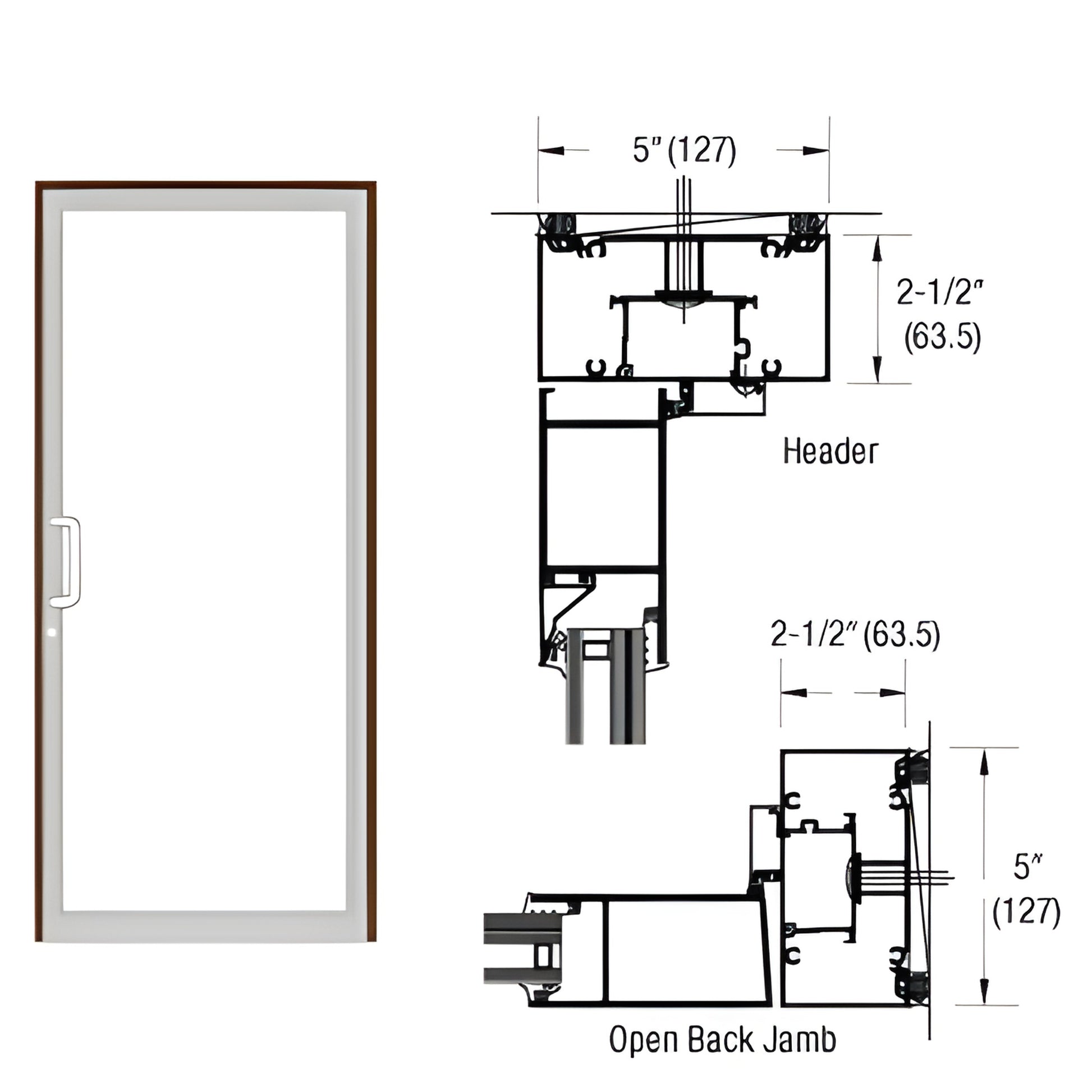

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged Up/Over hurricane impact door frame for surface mount closer
- Prepped for standard deadbolt strike
- Includes air resistant threshold
- Optional air/water resistant threshold available
This Custom Up/Over Door Frame (SKU: 0F71822) is engineered for a single geared-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing and a surface-mount closer. Constructed from IG626 door jambs, IG626/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold, it ships prepped for geared hinges and a standard deadbolt strike — making installation faster and reducing on-site modifications. Key differentiators: purpose-built for hurricane impact performance, integrated air-resistant threshold option, and factory hardware preparations for surface closers.
When installing hurricane impact products, always refer to FPA guidelines.
Order SKU 0F71822 or contact CRL Customer Service to confirm fit, weight, and lead time.
