CRL-U.S. Aluminum Bronze Black Anodized IG600 Series Custom Up/Over Door Frame for Geared Hinged and Overhead Concealed Closer

Product Details

• Includes Prep for Overhead Concealed Closer and Deadbolt Strike
• Label Certified
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

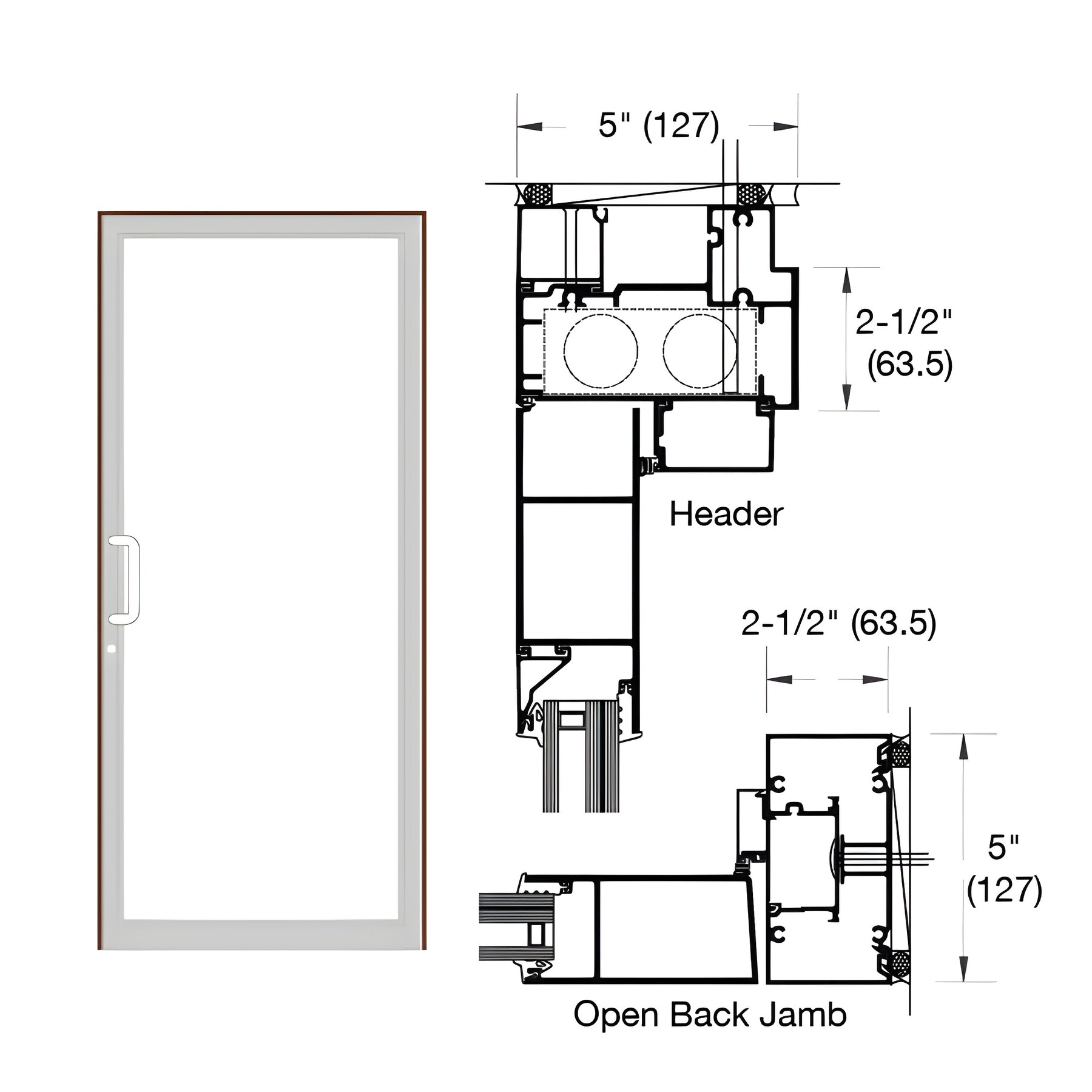

• 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame

This Custom Up/Over Door Frame is built to accommodate a single geared hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing, constructed using IG626/IG147/IG146 door jambs, IG667/IG663/IG200 with NP803 and NP801 gaskets header for overhead concealed closer, and TH811 air threshold, hardware preparations include overhead concealed closer, standard deadbolt strike.

When installing hurricane impact product always refer to FPA Guidelines.
