CRL-U.S. Aluminum Bronze Offset Pivot Entrance Door, Black Anodized
Item# CZ21222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) insulated tempered glass unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail installed to meet A.D.A. requirements (door widths under 36" / 914 mm may not pass A.D.A. inspection)
- Custom fabricated to accept a wide range of optional hardware, including offset pivot hardware
- Includes standard panic pull, hanging hardware, concealed vertical-rod panic hardware, and one cylinder (protruding hardware boxed separately to prevent transit damage)

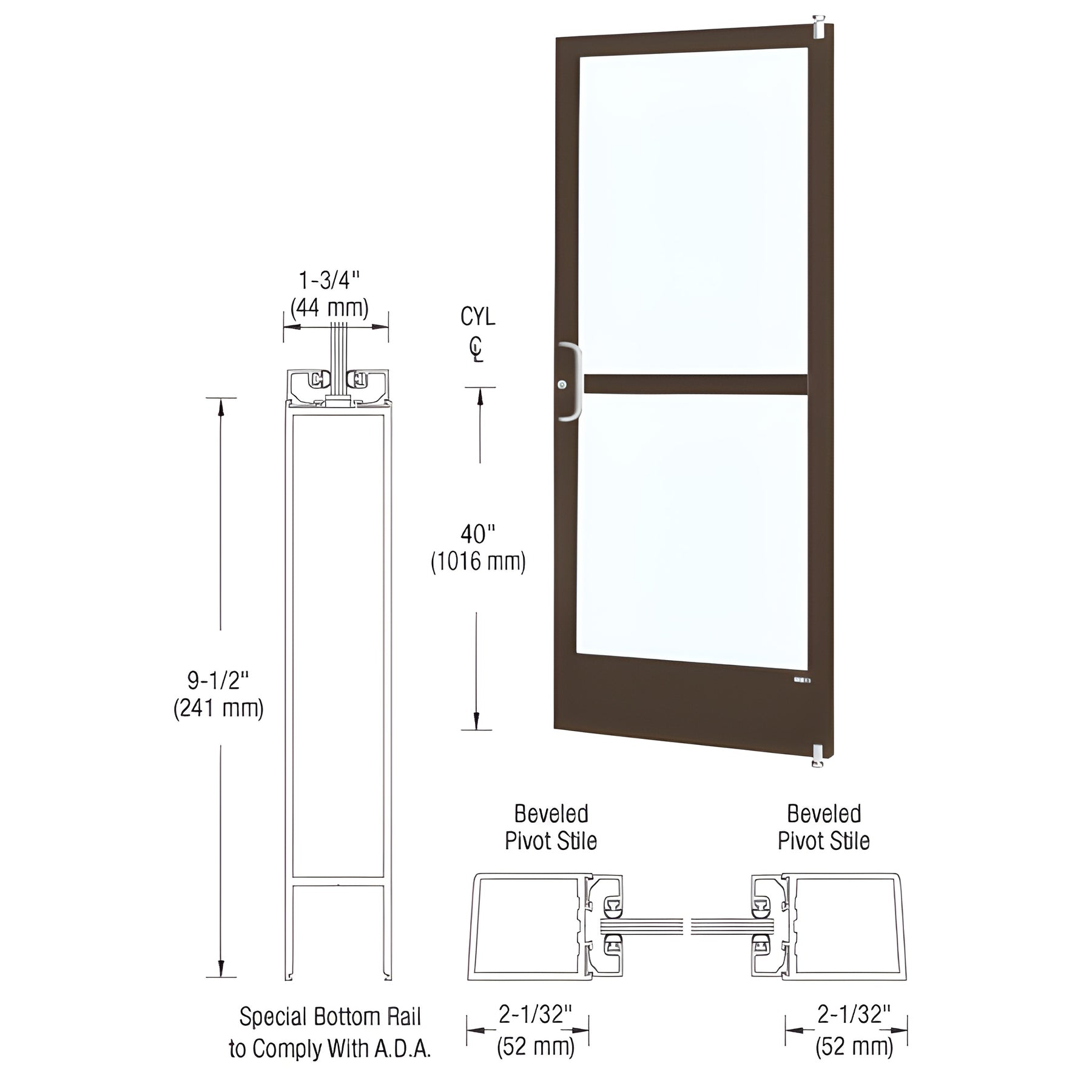

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21222) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial applications, it ships ready for glass installation and final hardware fitting, and is engineered for optional hardware applications including offset pivot systems and concealed vertical rod panic devices.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor settings.
Order SKU CZ21222 for a customizable, ADA-aware commercial narrow stile entrance door—contact us to configure hardware and glass options.
BIM Objects - rvt
