CRL-U.S. Aluminum Bronze Offset Pivot Entrance Door - Custom Size ADA
Item# DR21222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- 3-3/16" (81 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- Includes rim device, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

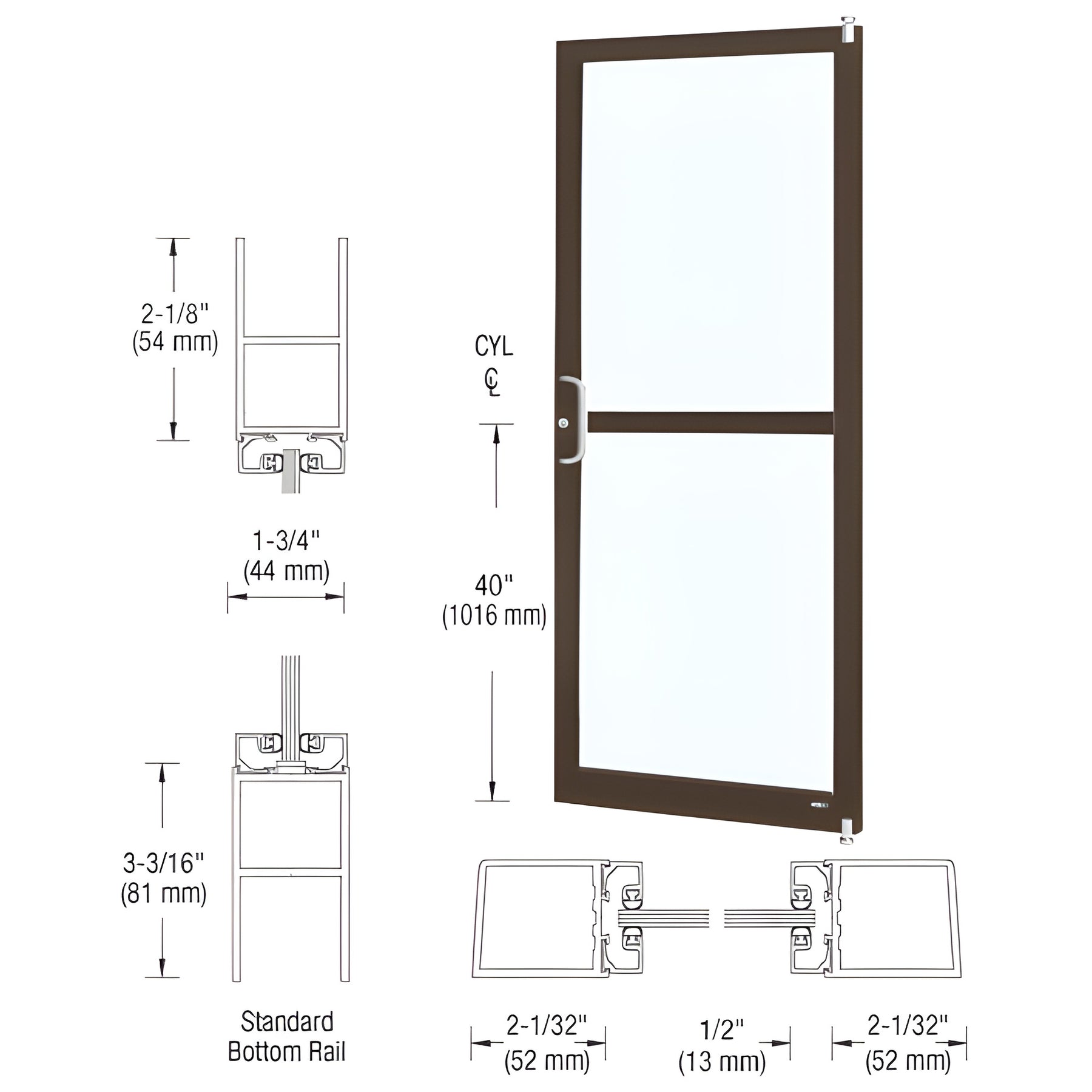

This Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard construction includes stiles for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass (provided by others). Door is prepared for custom fabrication to support a wide range of optional hardware applications. Glass not included.
Customer must install included protruding hardware (handles, pivots, etc.) shipped boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
SKU: DR21222
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
For lead times, exact weights, or to order this custom narrow stile entrance door with optional hardware, contact CRL Customer Service today.
BIM Objects - rvt
