CRL-U.S. Aluminum Butt Hinge Bronze Black Overhead Concealed Closer

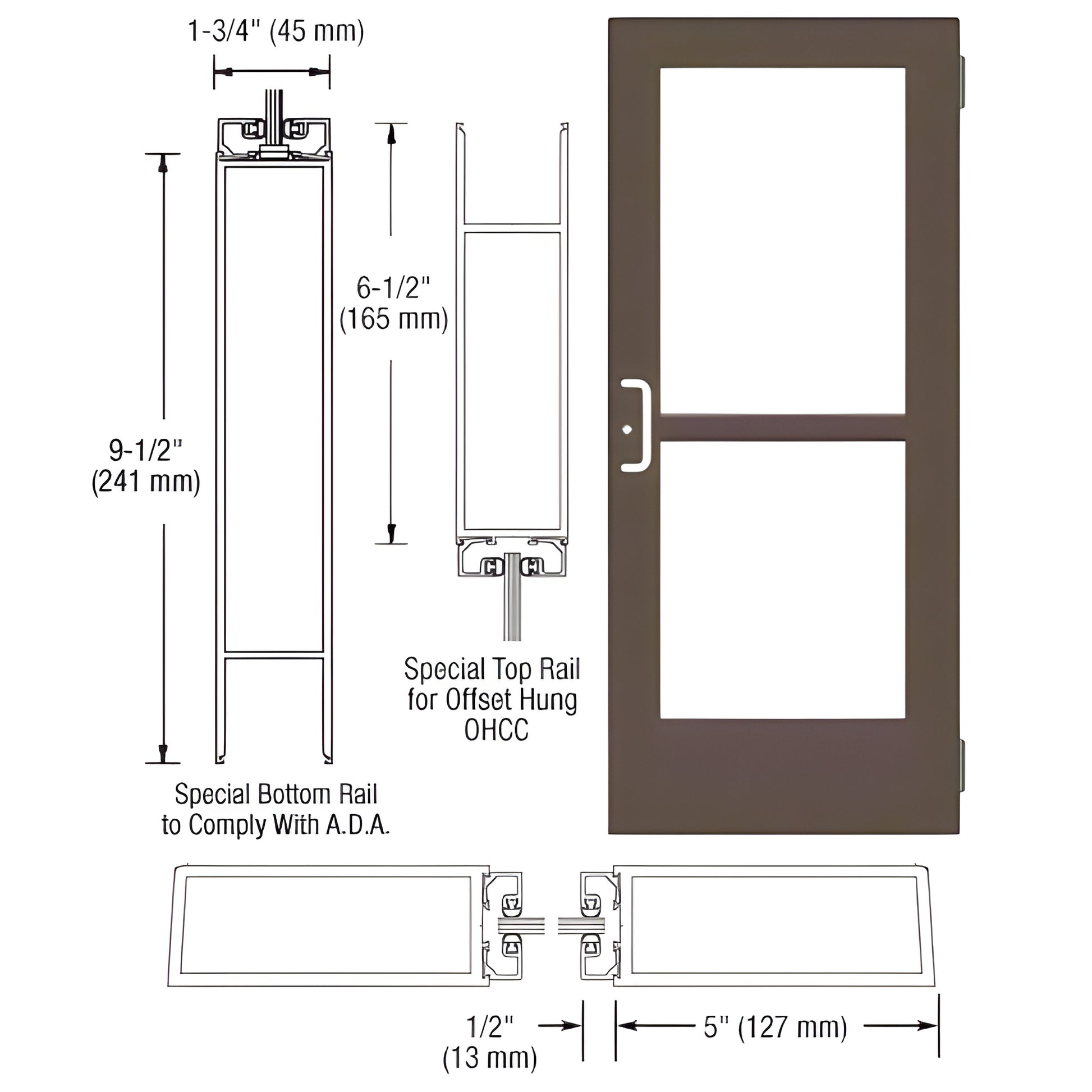

• 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

This CRL Custom Wide Stile Entrance Door (SKU: CZ51422) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Stiles are prepared for butt hinge hardware and include glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is designed for custom fabrication to accept a wide range of optional hardware, making it ideal for commercial storefront, ADA-compliant entrance, and tempered glass door applications.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Key differentiators: ADA-compliant bottom rail, concealed vertical rod panic hardware included, ready for tempered glass options, and custom hardware flexibility.

Order SKU CZ51422 or contact CRL for a quote and custom hardware options.
