CRL-U.S. Aluminum 250 Narrow Stile Offset Geared Hinge 105° ADA
Item# CD22911R136105
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- 36" x 84" (914 mm x 2.13 m) inactive leaf of a pair — fits standard commercial storefront openings
- Prepped for offset overhead concealed 105° closer (closer not included)
- Prepped for DH299 geared hinge (included)
- Prepped for standard PR032/PR034 push-pull hardware (included)
- 250 Narrow Stile door with 9-1/2" (241 mm) ADA-compliant bottom rail

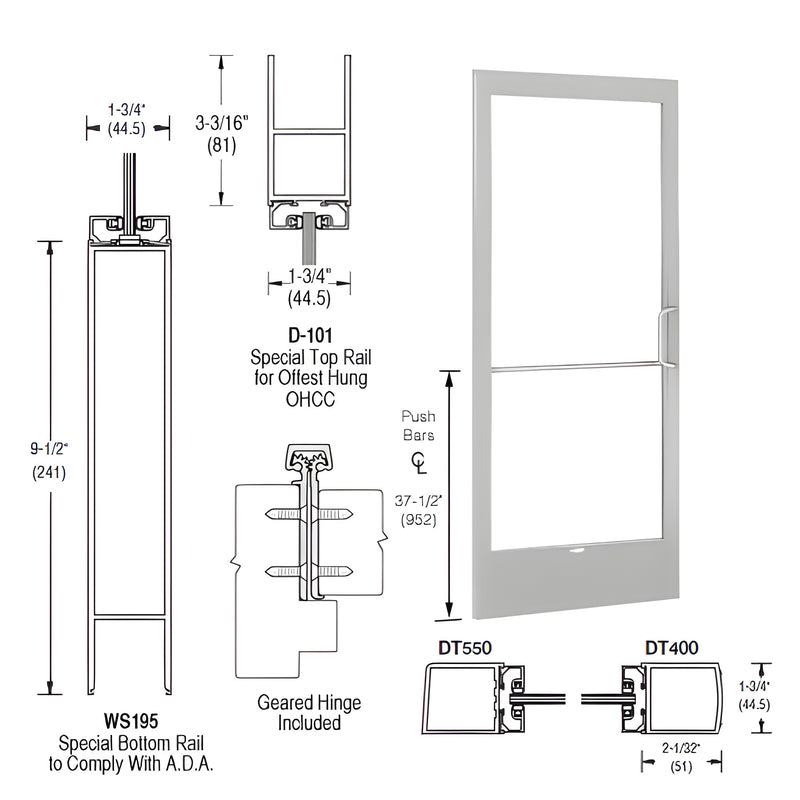

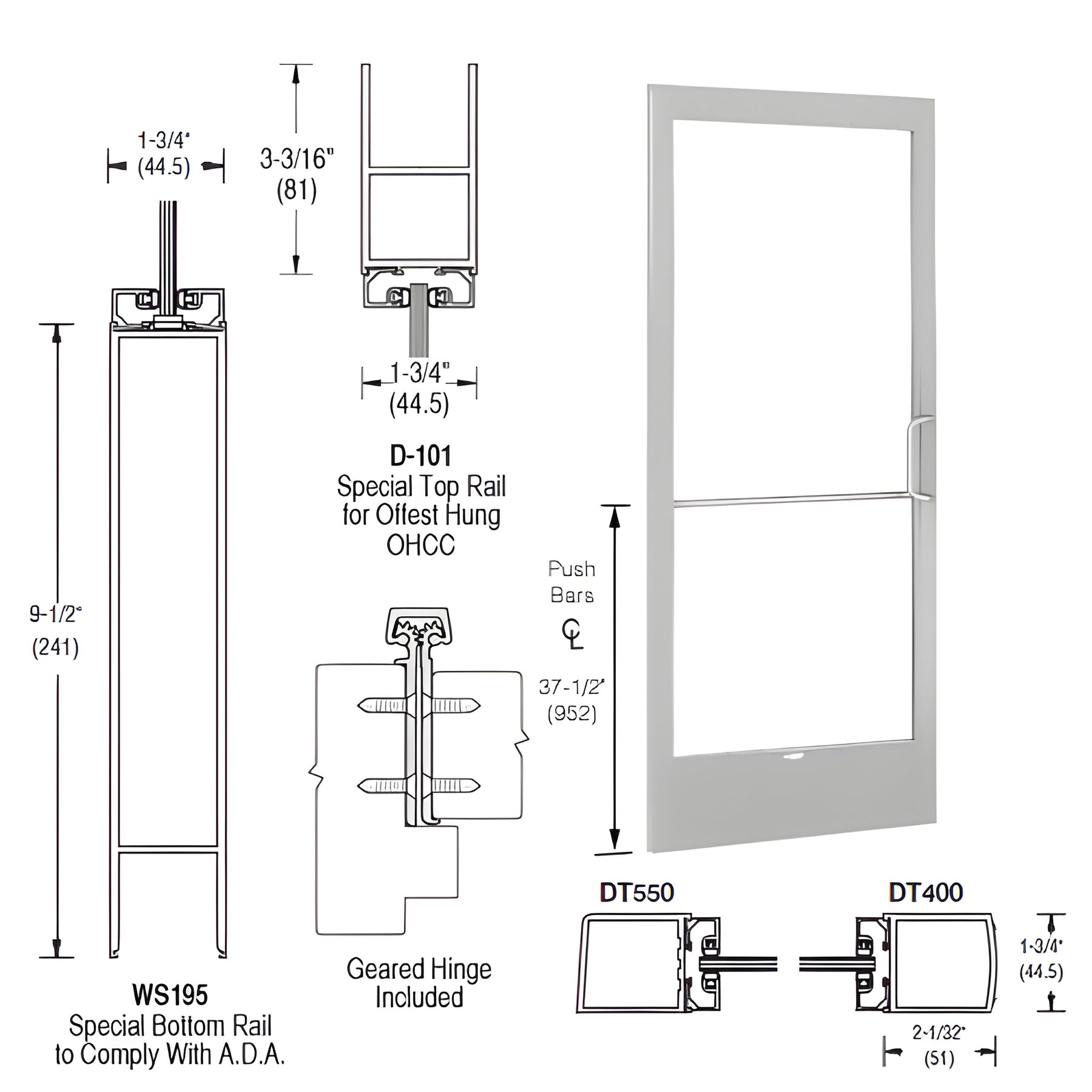

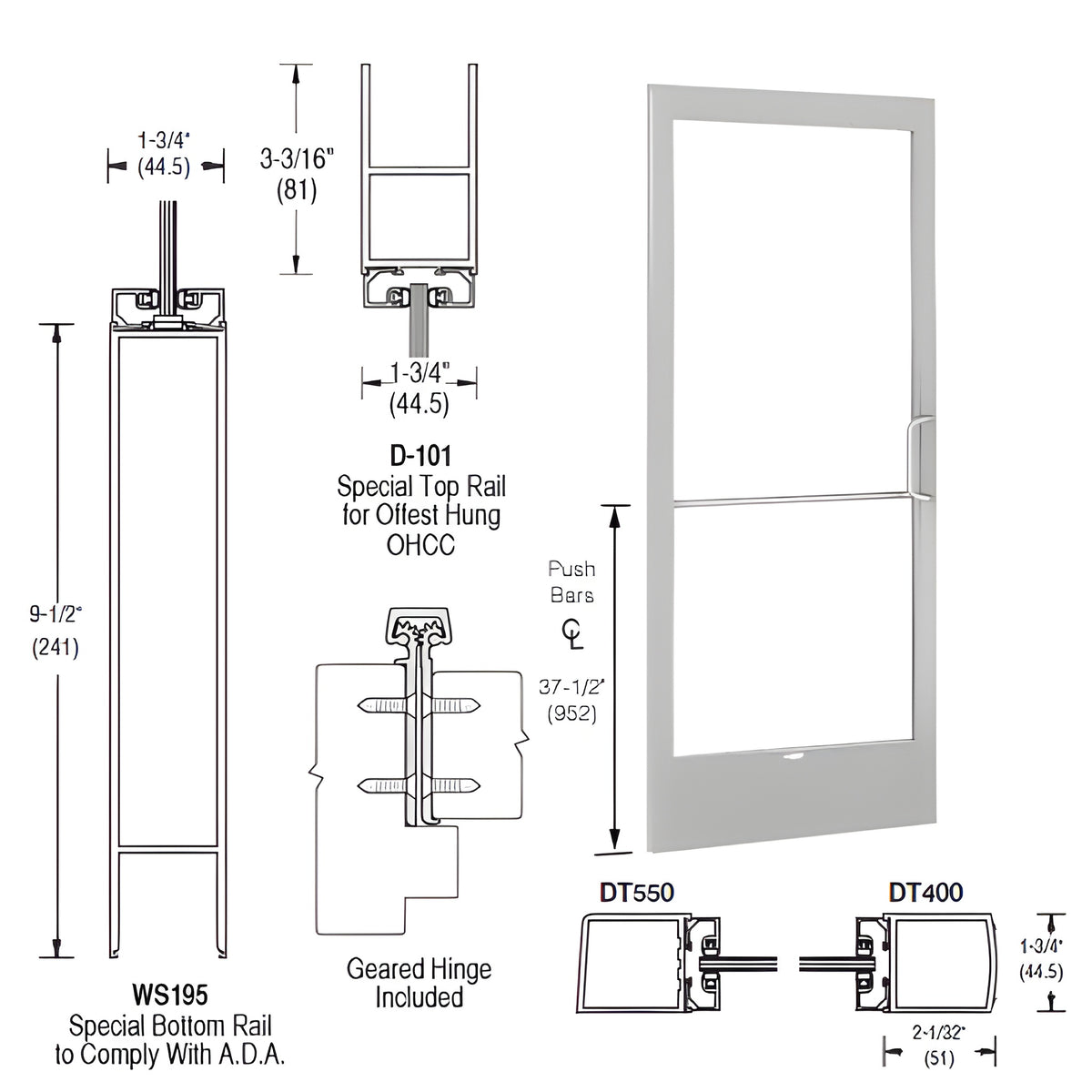

CRL Series 250 Narrow Stile Door — 2" (51 mm) stiles, 3-3/16" (81 mm) top rail, 9-1/2" (241 mm) bottom rail. Door is factory-prepped for an offset overhead concealed 105° closer, includes geared hinge and push/pull hardware, and accepts 3-point lock strike. Ideal for narrow-stile commercial storefronts and ADA-compliant entry applications.
Top rails are specially sized (3-3/16" / 81 mm) to accommodate offset overhead concealed closers.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images are representative; actual color may vary with monitor settings.
SKU: CD22911R136105
Order this narrow-stile 36" x 84" inactive leaf for ADA-compliant storefronts — contact us to confirm fit or request exact shipping weight.
BIM Objects - rvt
