CRL-U.S. Aluminum Clear Anodized 250 Series Narrow Stile (LHR) HLSO Single 3'0 x 7'0 Offset Hung with Pivots for Surface Mount Closer Complete ADA Door, Lock Indicator, Cylinder Guard - for 1" Glazing

• Prepped for Offset Pivots; Door Closer Not Included

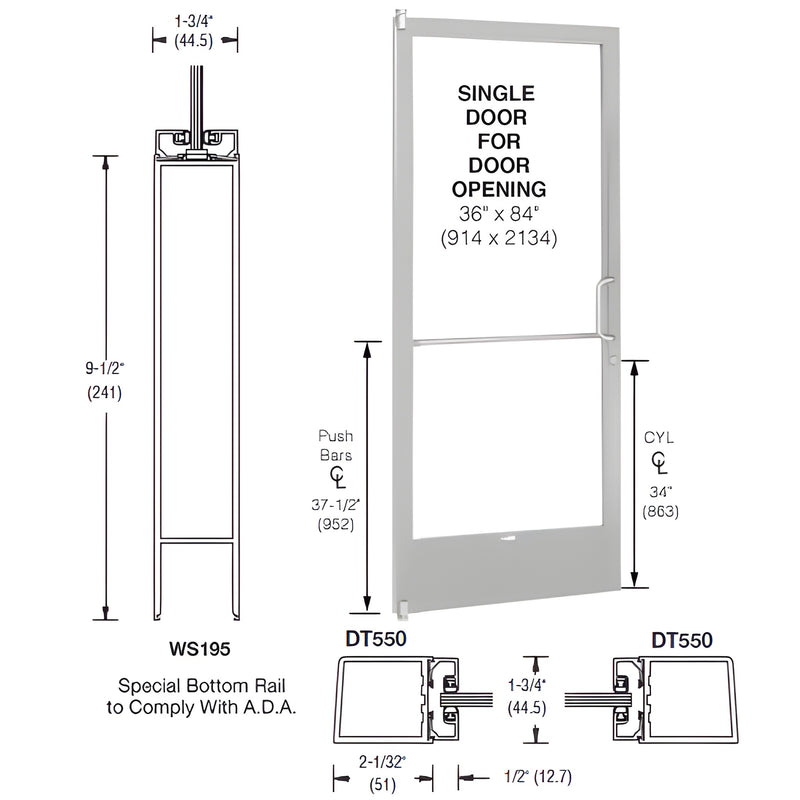

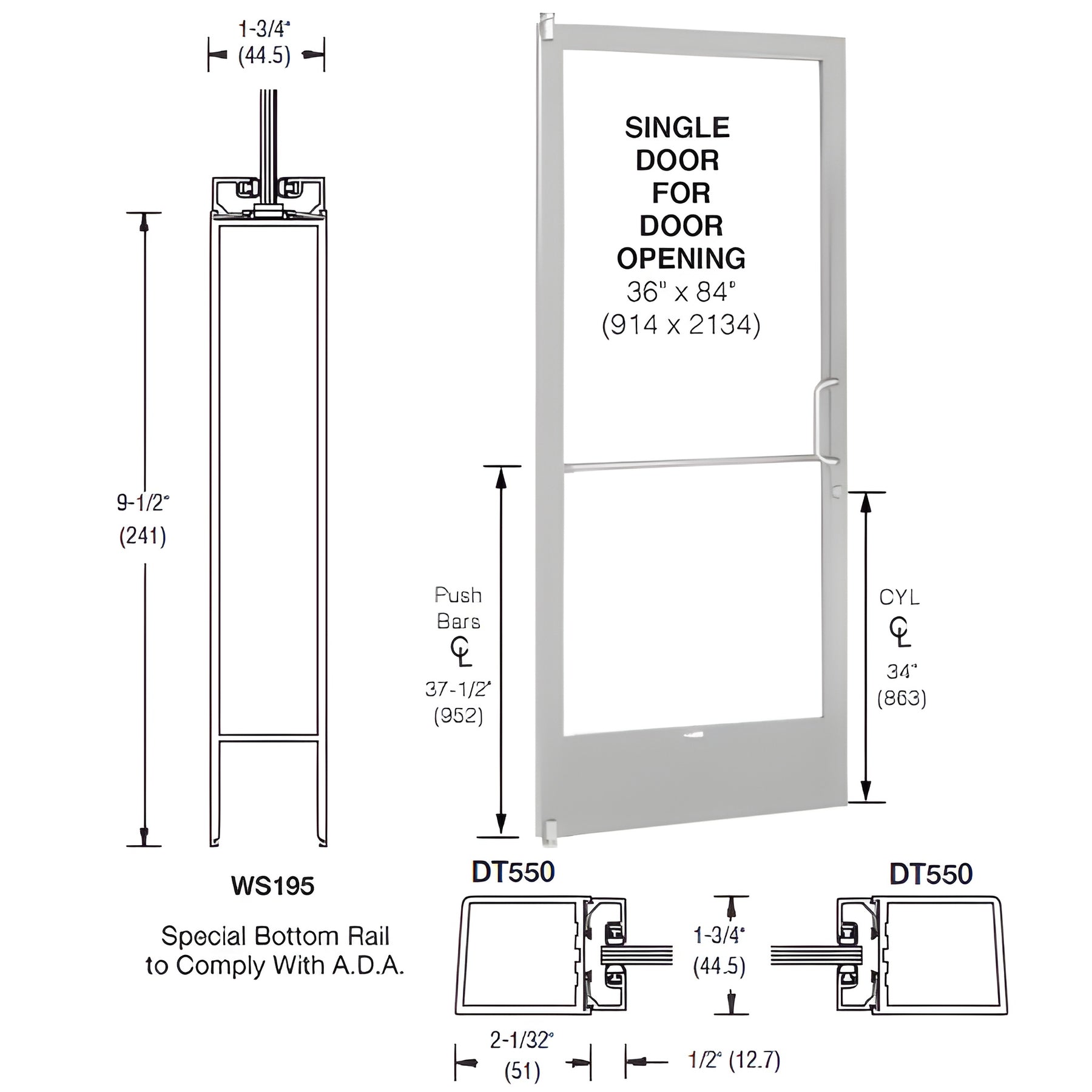

• 250 Narrow Stile aluminum door with 9-1/2" (241 mm) ADA bottom rail for a 36" x 84" (914 mm x 2.13 m) door
• Accepts 1" (25 mm) glazing (glazing not included). 1/4" or 3/16" (6 or 5 mm) glass also available — see CD21211R036 options

Stock Narrow Stile Door — Ready for Fast Delivery U.S. Aluminum's Stock Door Program supplies commercial-grade narrow stile aluminum doors for exterior and interior applications. Available in Clear Anodized and Bronze Anodized finishes as single or paired doors, in Offset Pivot and Butt Hinged configurations. Continuous geared hinges available by special order.

These stock narrow stile aluminum doors include standard 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and 9-1/2" (241 mm) ADA access bottom rails. Standard hardware and features (glass and glazing sold separately) ensure quick installation and reliable performance for commercial projects.

STANDARD FEATURES:

• Offset pivots
• Push bar and offset pull handle
• Hookbolt lock (single doors)
• Three-point lock (paired doors)
• Lock indicator and cylinders with cylinder guard
• Glass stops and glazing gaskets

AVAILABLE OPTIONS:

• Panic devices
• Continuous geared hinges
• Butt hinges
• Vanguard Security astragal

SKU: 1CD21211R036 — stock-sized narrow stile aluminum door, ideal for ADA-compliant commercial entrances requiring 1" glazing.
