CRL-U.S. Aluminum 250 3x7 Narrow Stile Clear Anodized ADA Offset Door
Item# CD21811L036
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Prepped for DH299 geared hinge (included)
- Prepped for standard DH129 hookbolt, DH004 cylinders, LI001 indicator, and cylinder guard (included)
- Complete with PR034/PR032 push/pull hardware
- Accommodates 1/4" (6 mm) glazing (not included); 1" (25 mm) also available

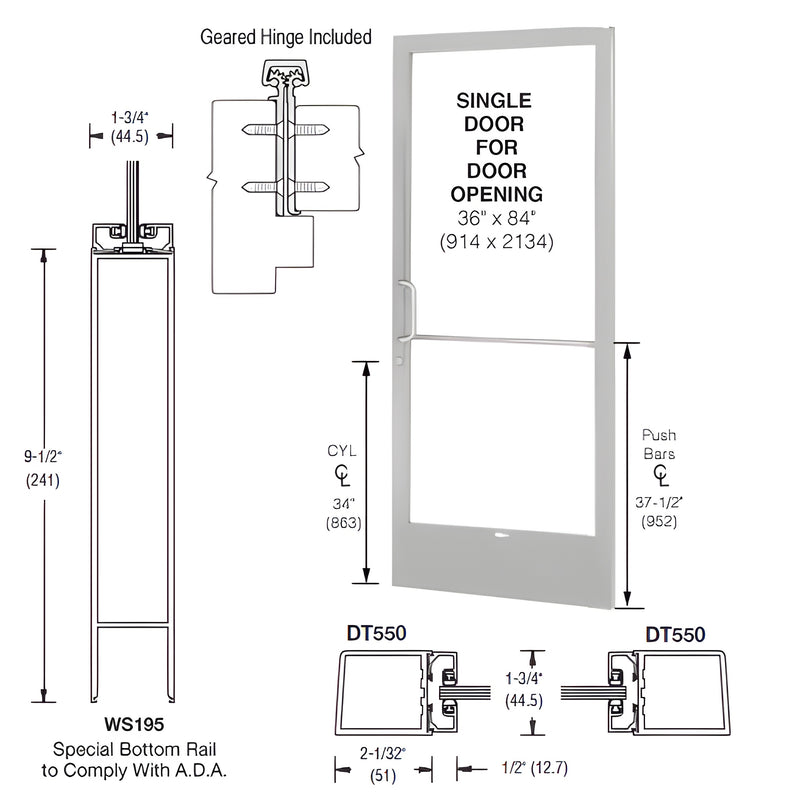

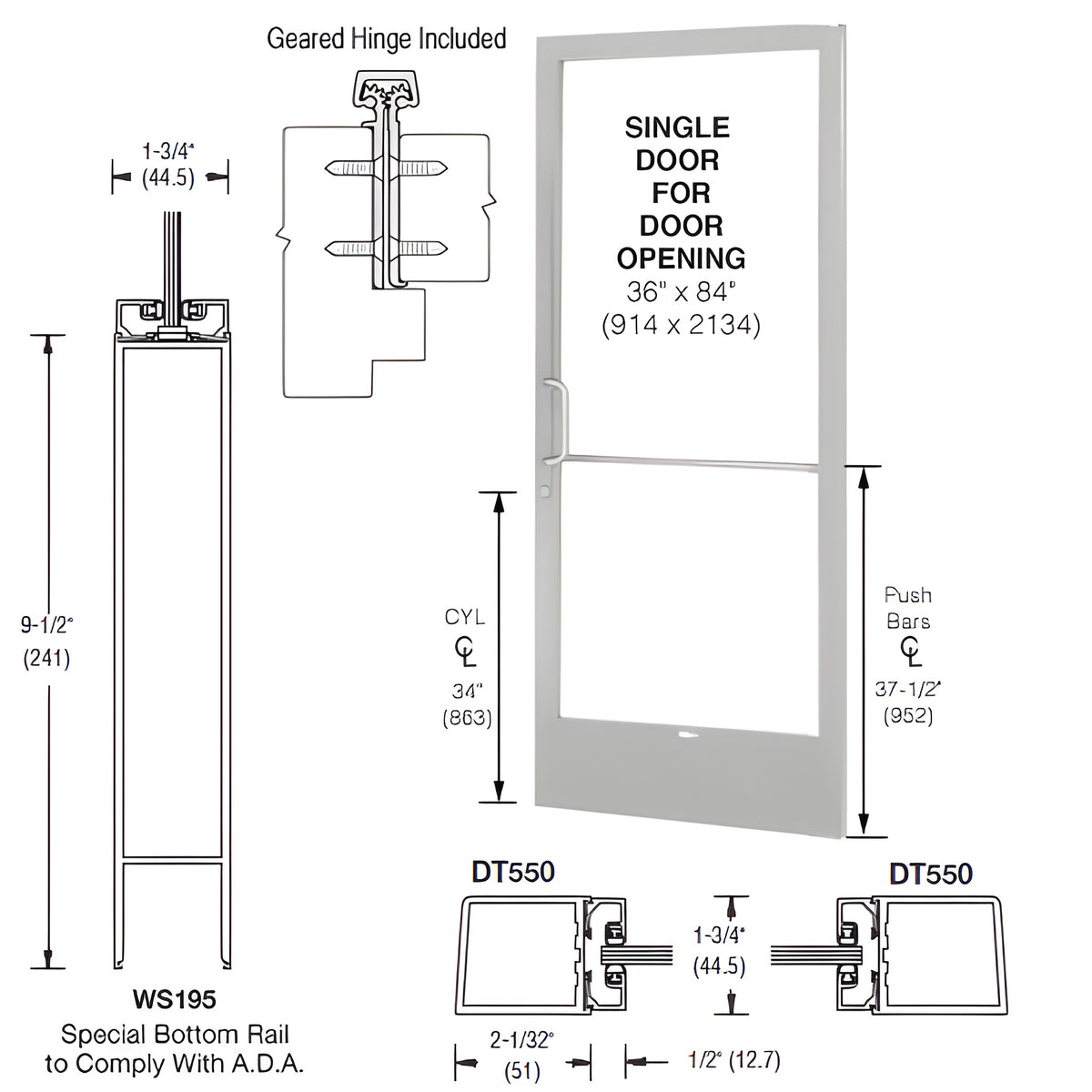

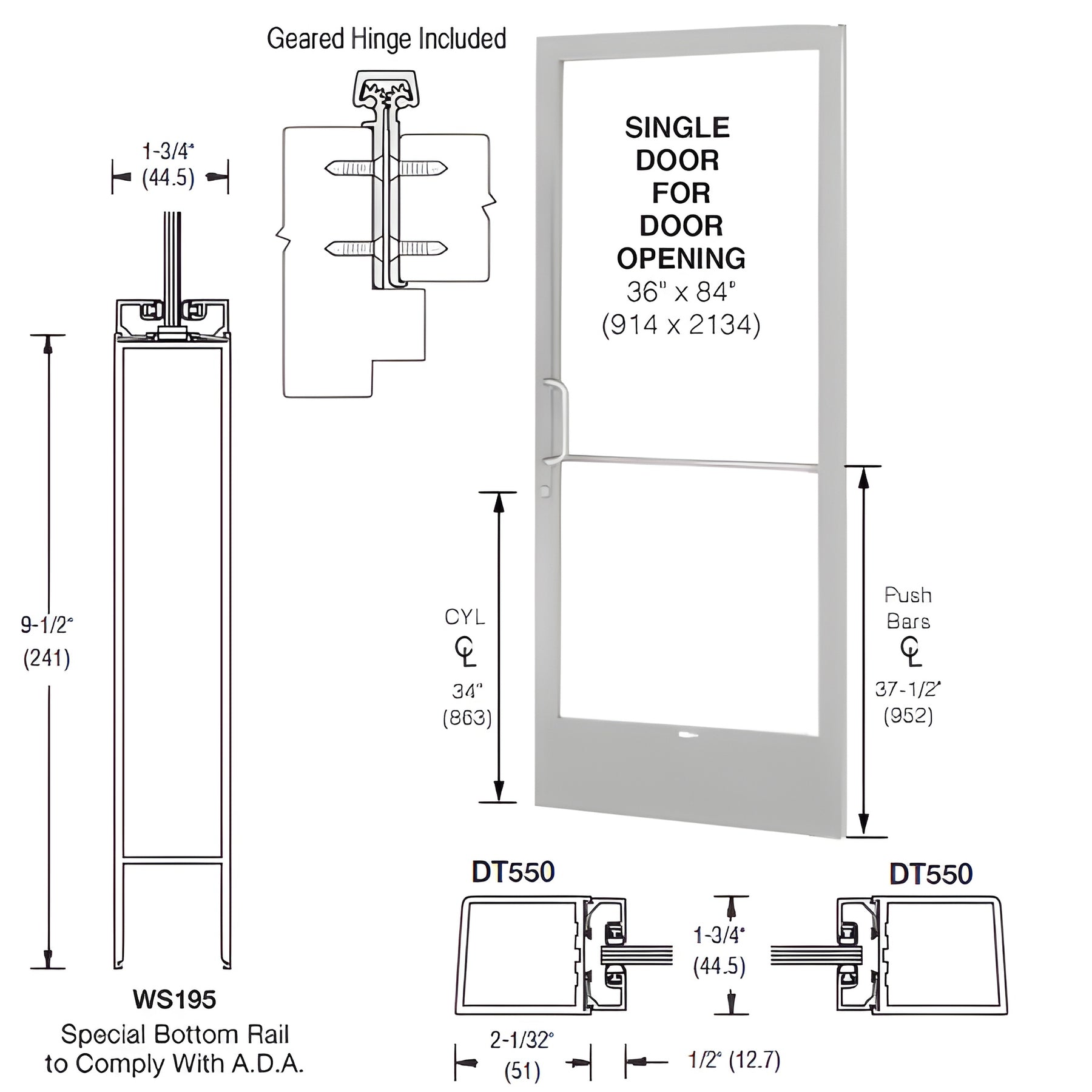

- 250 Narrow Stile door with 9-1/2" (241 mm) ADA bottom rail — fits a 36" x 84" (914 mm x 2.13 m) door opening using geared hinge
CRL 250 Narrow Stile Door 36" x 84" (914 mm x 2.13 m) — SKU: CD21811L036. Manufactured with a 2-1/8" (54 mm) top rail and 9-1/2" (241 mm) bottom rail. Includes standard hookbolt lock, lock indicator, cylinders, cylinder guard, PR034/PR032 push/pull hardware, and DH299 geared hinge. Ideal for commercial storefronts, ADA-compliant narrow stile aluminum door applications, and retrofit projects requiring prepped lock and hinge hardware.
Most shipping weights are approximate and may vary. If exact weight is required to calculate shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor settings.
Order the CRL 250 Narrow Stile 36" x 84" door (SKU CD21811L036) today for a ready-to-install, prepped commercial storefront solution.
