CRL-U.S. Aluminum Clear Anodized 550 Series Wide Stile Inactive Leaf of Pair 3'0 x 7'0 Offset Hung with Pivots for Surf Mount Closer Complete Door for 1" Glass with Standard MS Lock and Bottom Rail

• For 1" (25 mm) Glass
• 36" x 84" (914 x 2.13 m) Inactive leaf of pair — includes standard push/pull, hanging hardware, MS hookbolt strike, and flush bolts
• Glass not included

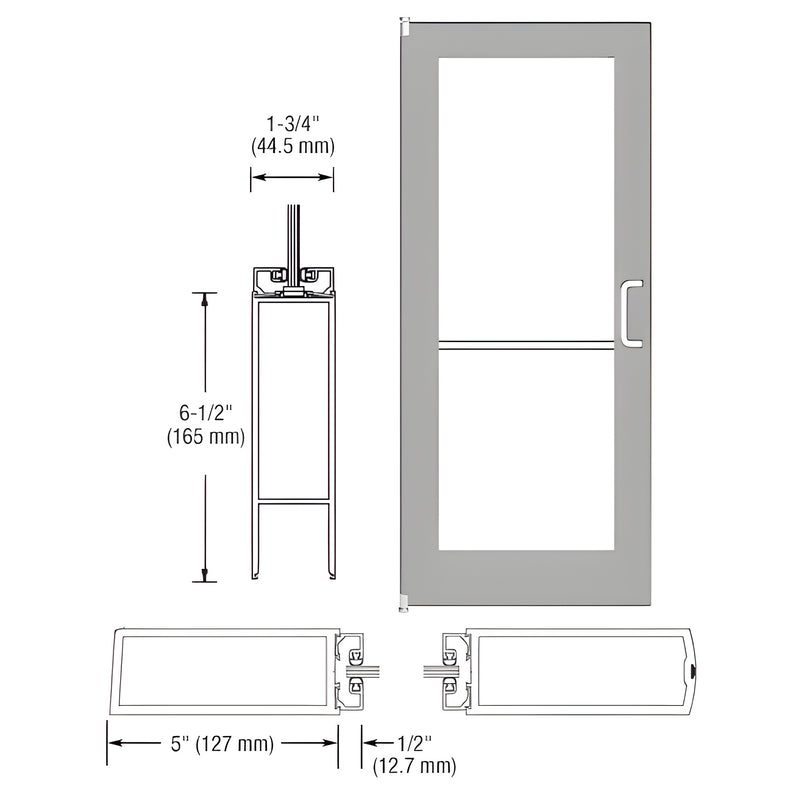

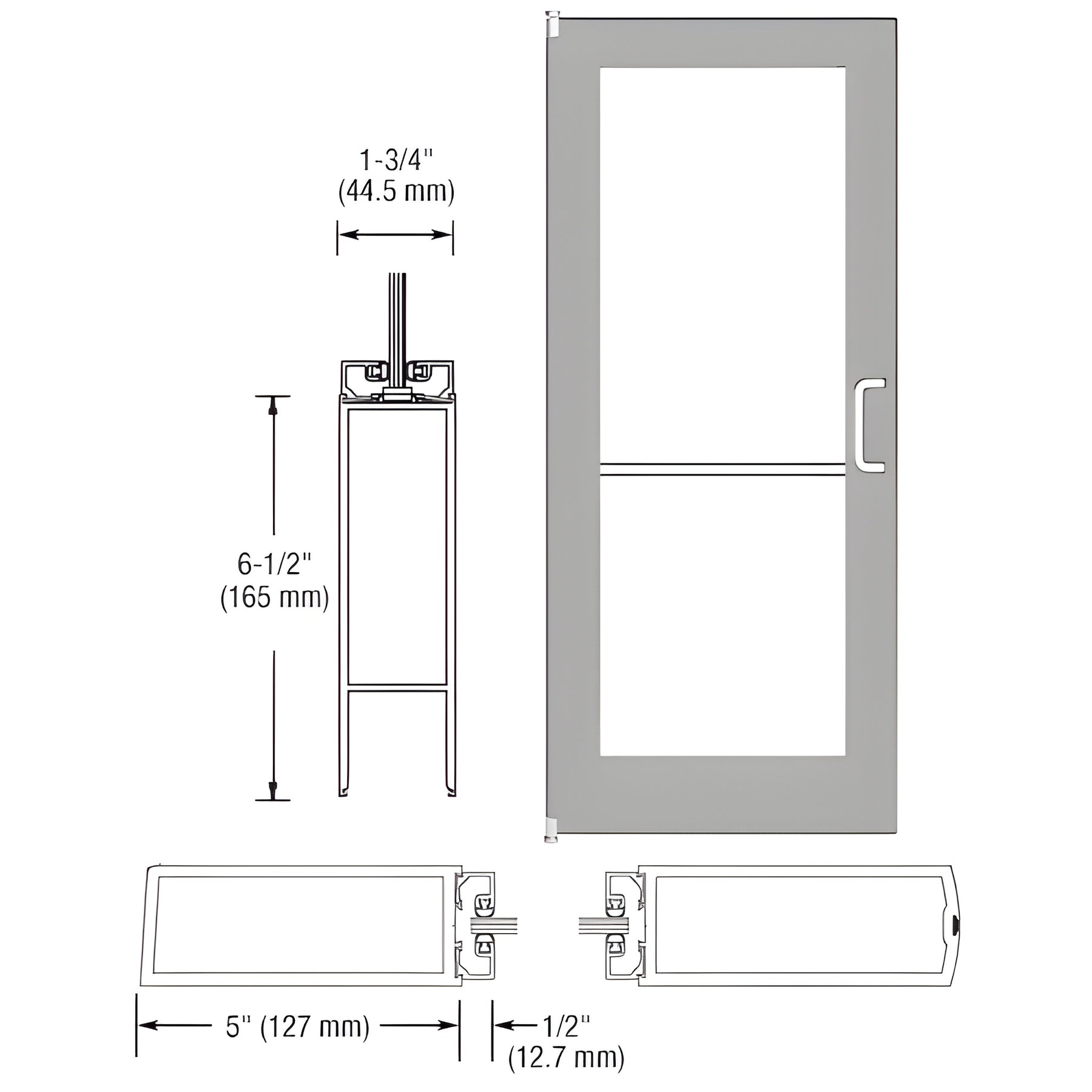

This Standard Wide Stile Entrance Door is designed for commercial and residential applications requiring a wide stile glass entry. Built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail, it accepts 1" (25 mm) glazing and includes stiles prepared for offset pivot hardware, glass stops, and standard hardware and fabrication.

Included hardware for the inactive leaf is boxed separately to prevent transit damage; customer must install protruding hardware (handles, pivots, etc.).

Key differentiators:

• Prepared for offset pivot hardware – simplifies installation of pivot door systems
• Wide stile design for robust support of 1" insulating glass units
• Inactive leaf supplied with push/pull, MS hookbolt strike, hanging hardware, and flush bolts for secure pair installation

SKU: 1DC52211R136
