Product Details
- 36" x 84" BASE (.914 x 2.13 m) Door Opening
- No Threshold, Hardware or Hardware Fabrication is Included

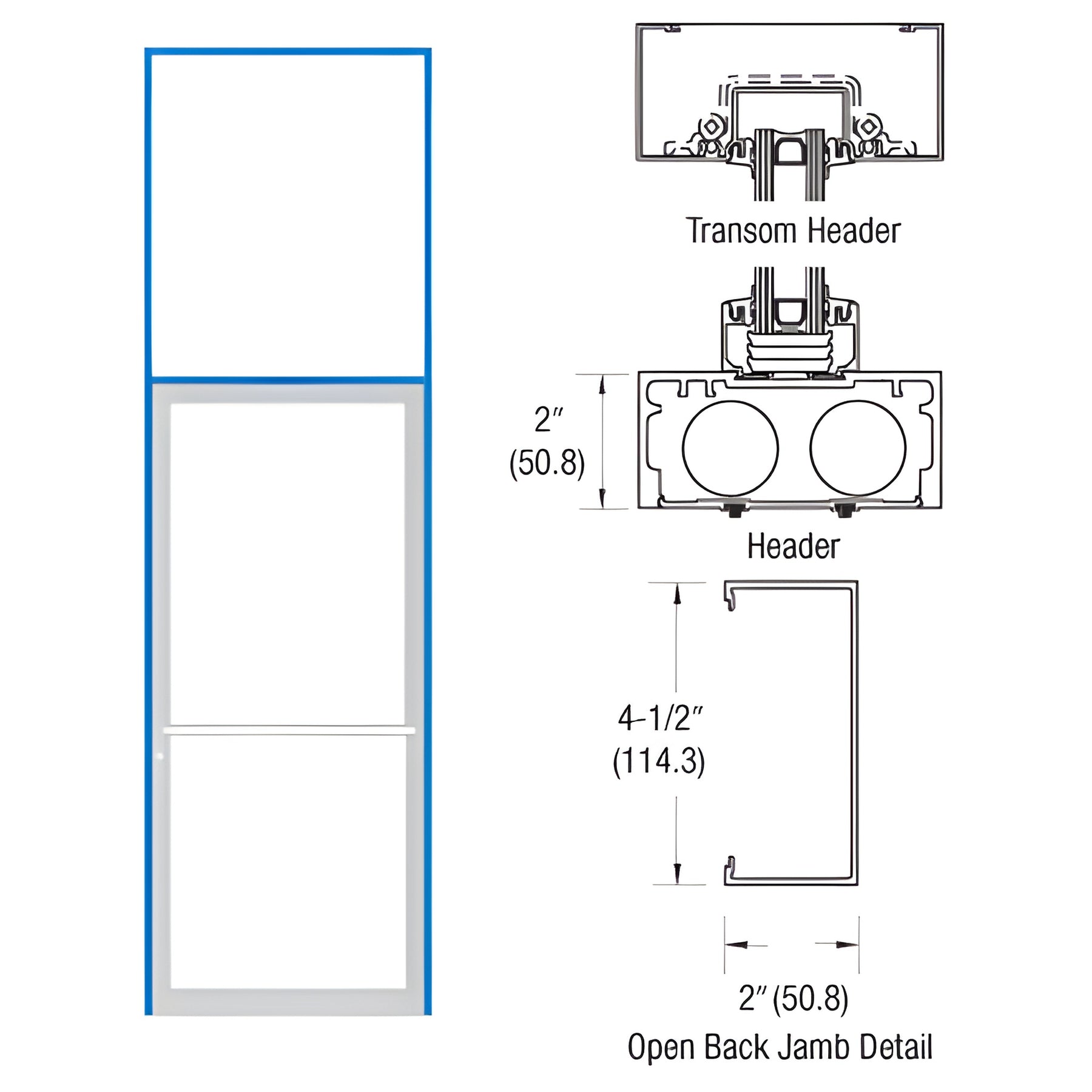

- 2" x 4-1/2" (50.8 x 114.3 mm) Transom Frame with Open Back Jambs
- 40 x 126" (1.01 x 3.20 m) Base Frame Size (Outside Dimensions)
CRL Blank frame is built to accommodate a base single 36" x 84" center hung door for Overhead Concealed or Concealed Floor Closer, constructed using 1S451 Open Back Jambs with 1C457/P427 Header. All hardware and hardware prep must be added to suit custom job conditions.
Blank frames only include hardware to attach the Header to the Jambs. All other hardware and hardware preparations must be added as needed. Frame widths less than 40" may not pass A.D.A. Inspection.
