Product Details

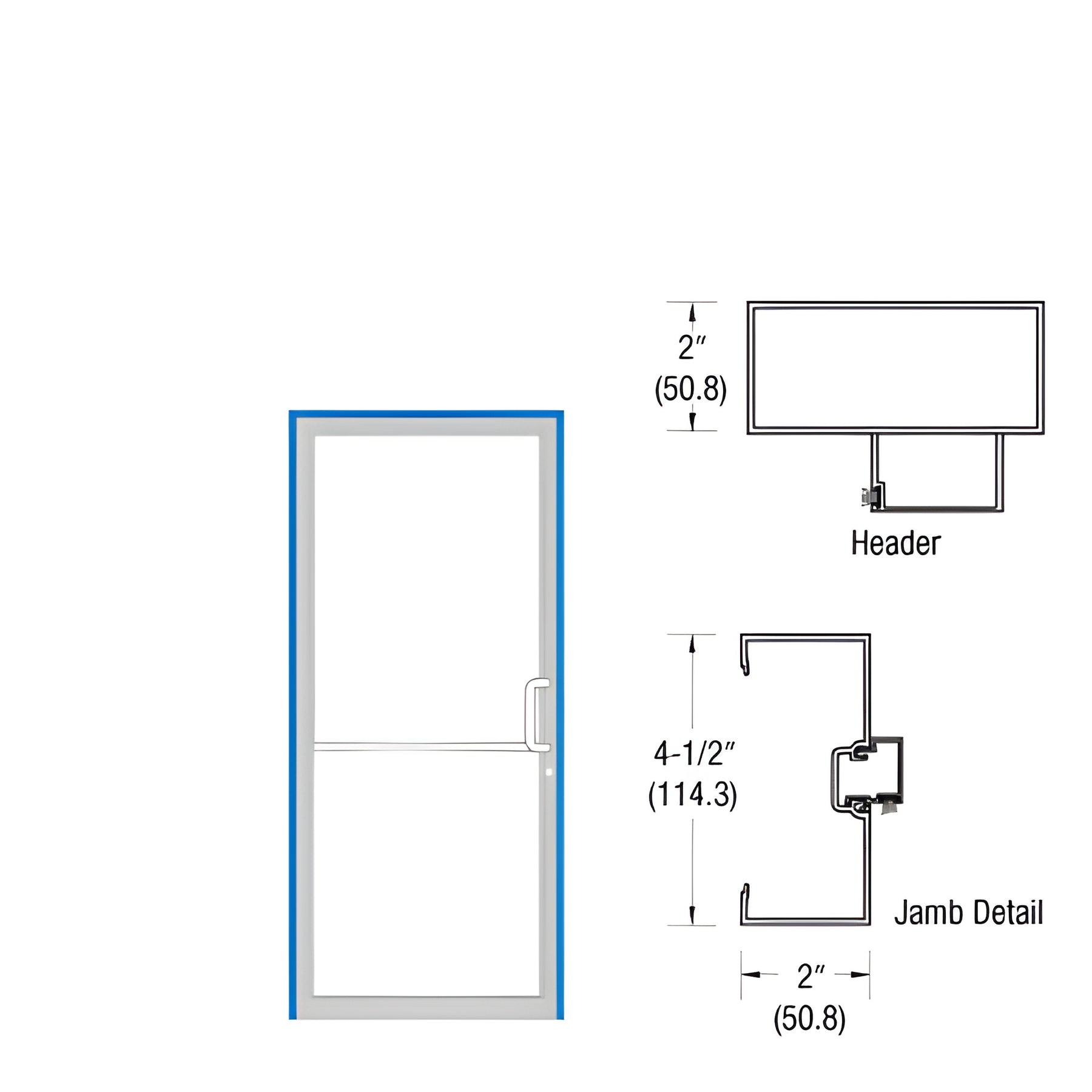

- 2" x 4-1/2" (50.8 x 114.3 mm) Butt Hinge Up and Over Frame with Open Back Jambs
- 40" x 86" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
- 36" x 84" (.9 x 2.1 m) Door Opening
- Aluminum Threshold is Included
Complete Frame is built to accommodate a base 36" x 84" Butt Hinge Maximum Security Lock Door for a 105º Overhead Concealed Closer with Offset Arm, constructed using 1S466 Open Back Jambs with 1S467 Header. All associated extrusions, weatherstrip, standard hardware, and hardware preparations are included.
All assembly fasteners, standard hardware, and hardware fabrication is included. Customer supplies fasteners to attach frame to opening. No modifications are offered on Standard Frames.
