CRL-U.S. Aluminum 250T Clear Anodized Thermal Narrow Stile Doors

• Includes Active and Inactive Leaf, custom fabricated to accept a variety of hardware of your selection
• Designed to accommodate 1" (25 mm) tempered insulating unit (glass not included)
• 4-5/16" (110 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications, including Offset Hung hardware

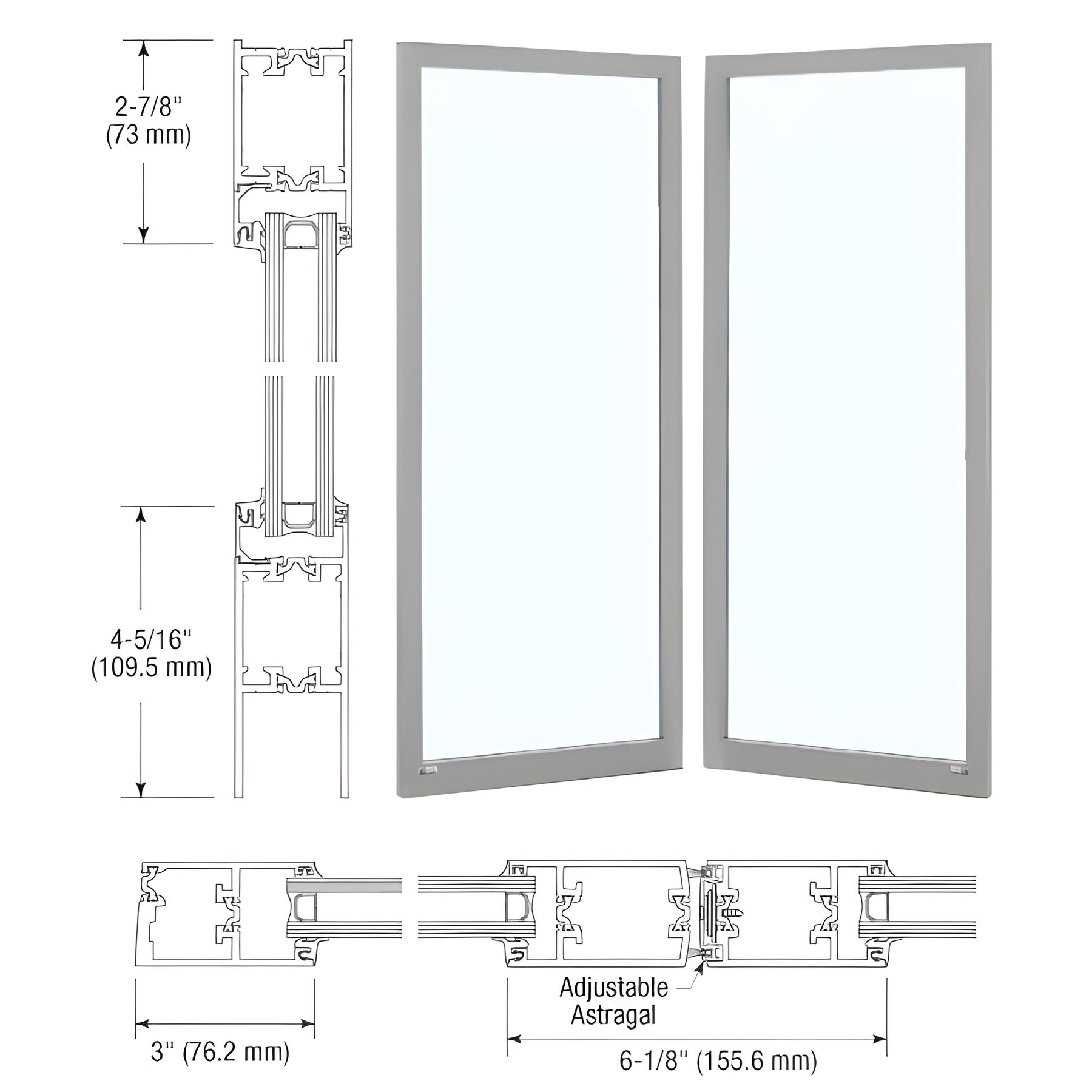

This CRL Blank Narrow Stile Entrance Door (SKU: 1D22611) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Standard design includes stiles prepped for Offset Hung hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The blank narrow stile configuration is ideal for storefronts and commercial entrances where custom hardware and insulated glass are installed separately.

All blank door hardware and hardware fabrication must be added separately.

Order SKU 1D22611 or contact CRL for custom hardware fabrication and ADA-compliant options.
