CRL
CRL-U.S. Aluminum Anodized 72x84 Entry Door Pair 400T Gear Hinge
CRL-U.S. Aluminum Anodized 72x84 Entry Door Pair 400T Gear Hinge
Regular price
$3,874.72 CAD
Regular price
Sale price
$3,874.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D42811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/4" (184 mm) bottom rail (10" / 254 mm bottom rail available to comply with A.D.A. and Title 21 applications)
- Custom fabricated to accept optional hardware applications

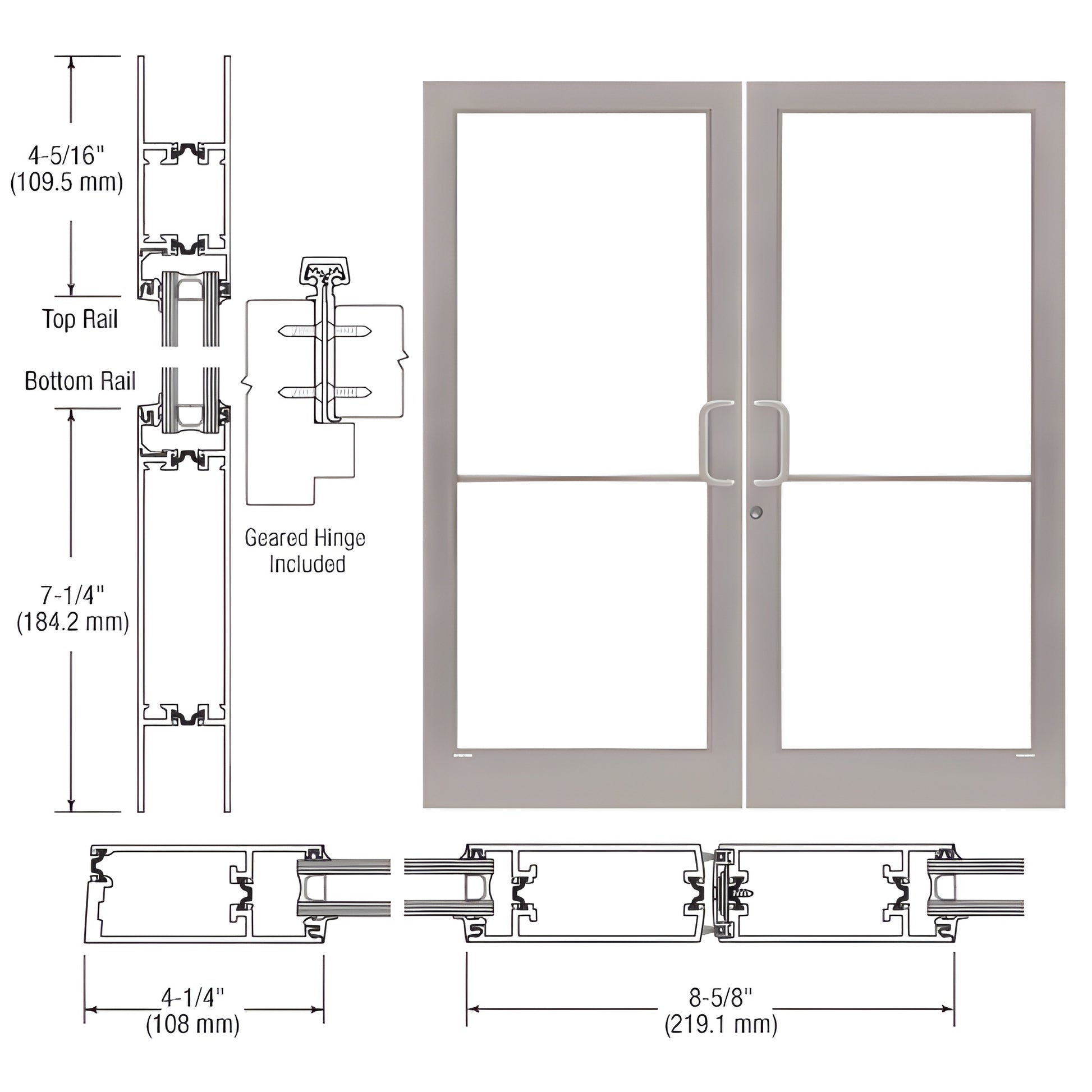

CRL Custom Medium Stile Entrance Door (SKU: 1D42811) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed for commercial storefronts and medium stile entrance applications, this door is built with stiles for Gear Hinge hardware and glass stops that accept 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication to support a wide range of optional hardware—ideal when you need a configurable, durable entrance solution.
Note: Glass is not included. Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order the CRL Custom Medium Stile Entrance Door (SKU: 1D42811) for a customizable, ADA-capable commercial entrance—contact CRL to get started.
Specifications
BIM Objects - rvt
