CRL-U.S. Aluminum 250T Narrow Stile Butt Hinge Pair - Clear Anodized
CRL-U.S. Aluminum 250T Narrow Stile Butt Hinge Pair - Clear Anodized
Regular price
$2,941.25 CAD
Regular price
Sale price
$2,941.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D22511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Active and Inactive Leaf with all standard hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 4-5/16" (110 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications

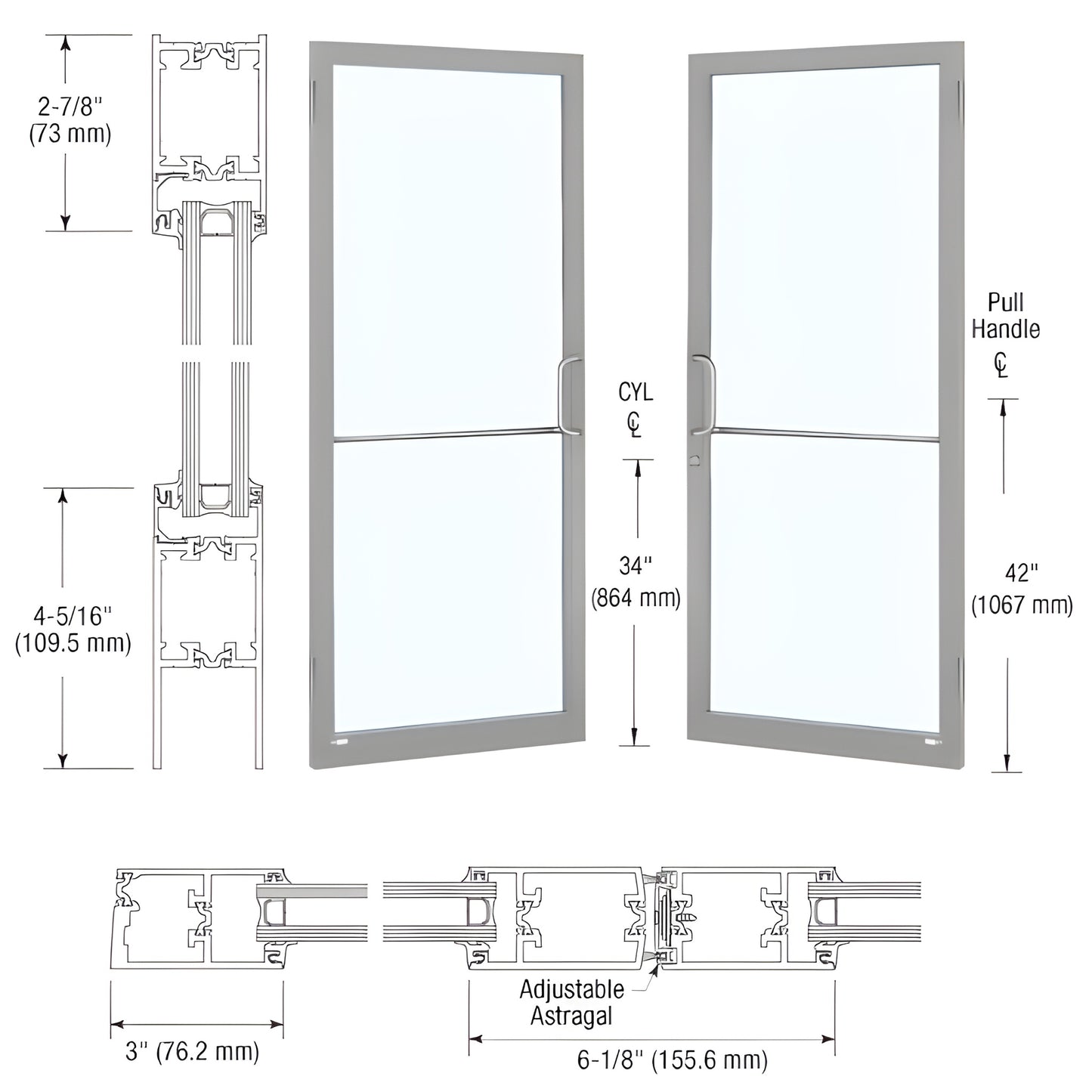

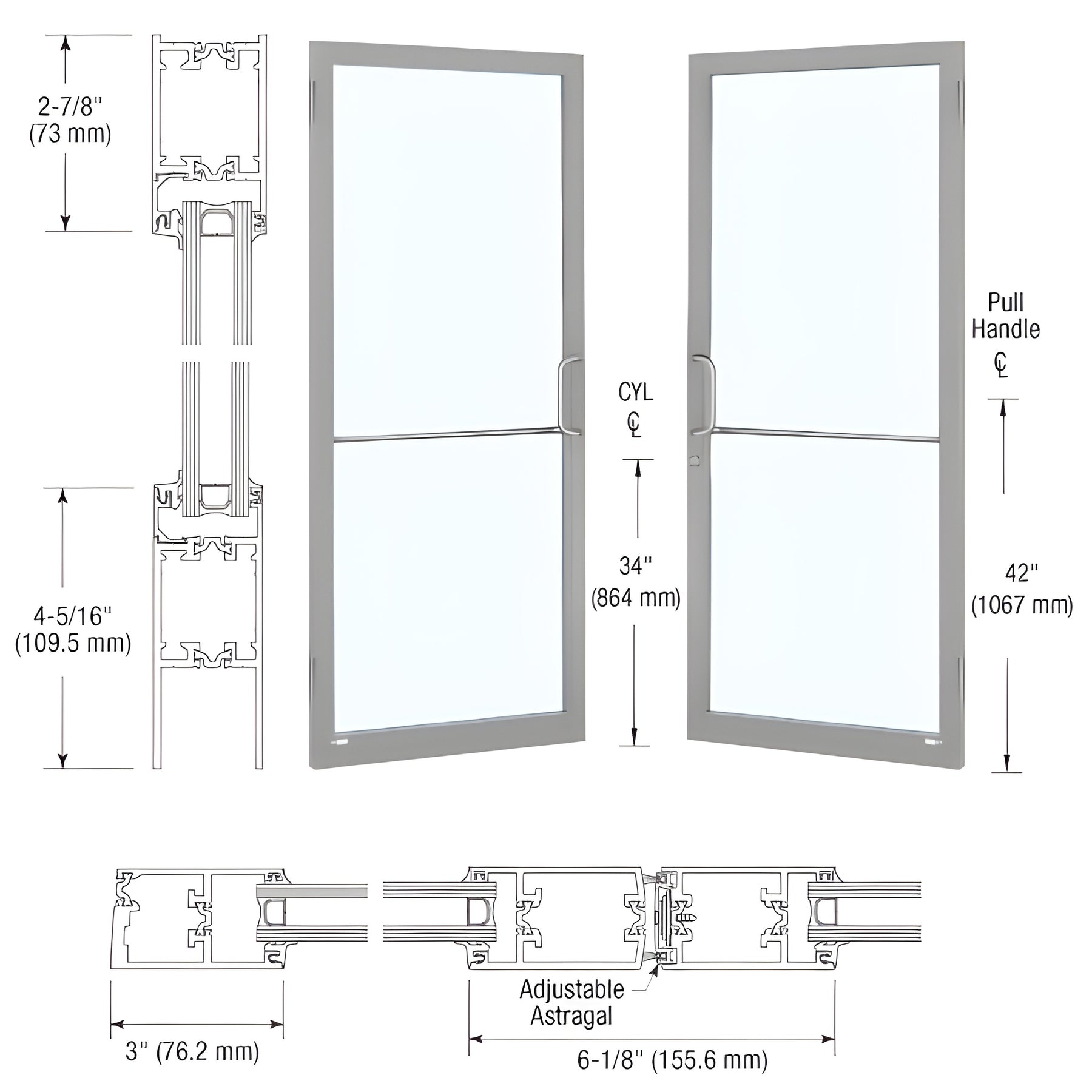

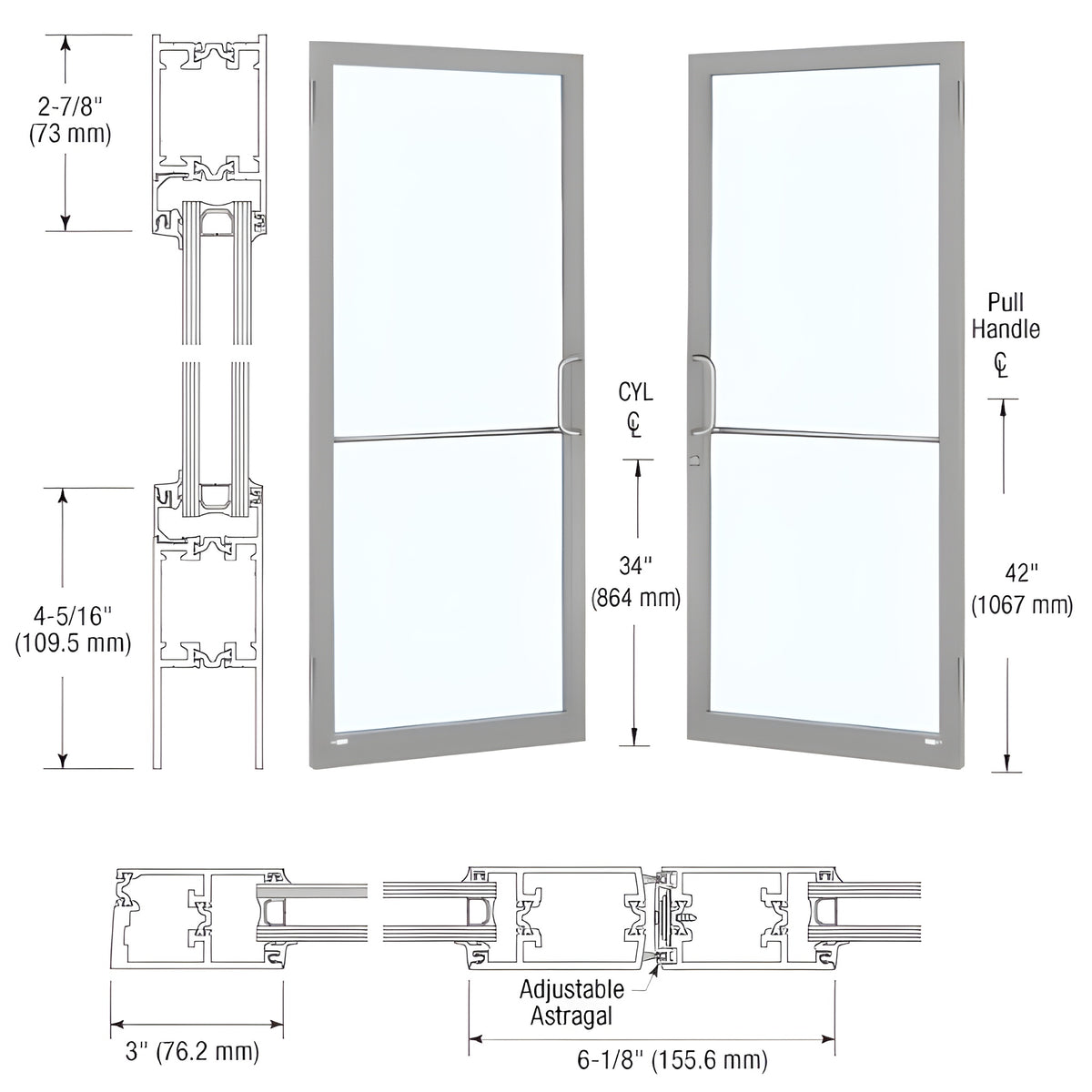

This Custom Narrow Stile Entrance Door (SKU: 1D22511) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (supplied by others). Designed for commercial storefronts and narrow-stile entrances, it accepts a wide range of optional hardware for custom configurations.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Need help or a quote for SKU 1D22511? Contact CRL Customer Service or order online today.
Specifications
BIM Objects - rvt
