CRL-U.S. Aluminum Clear Anodized Class 1 Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers
Item# 1D22811
Shipping Weight:
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight:
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- 4-5/16" (110 mm) Bottom Rail; 10" (254 mm) Bottom Rail option available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications (handles, pivots, closers, etc.)
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
- Designed for commercial storefront and entrance applications—ready for Gear Hinge hardware and other commercial hardware systems

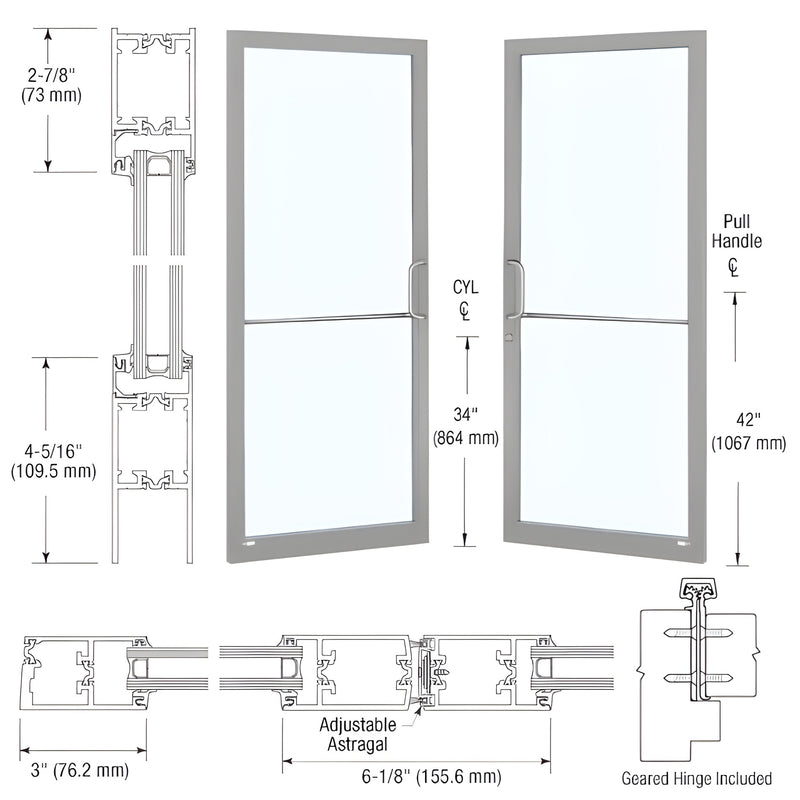

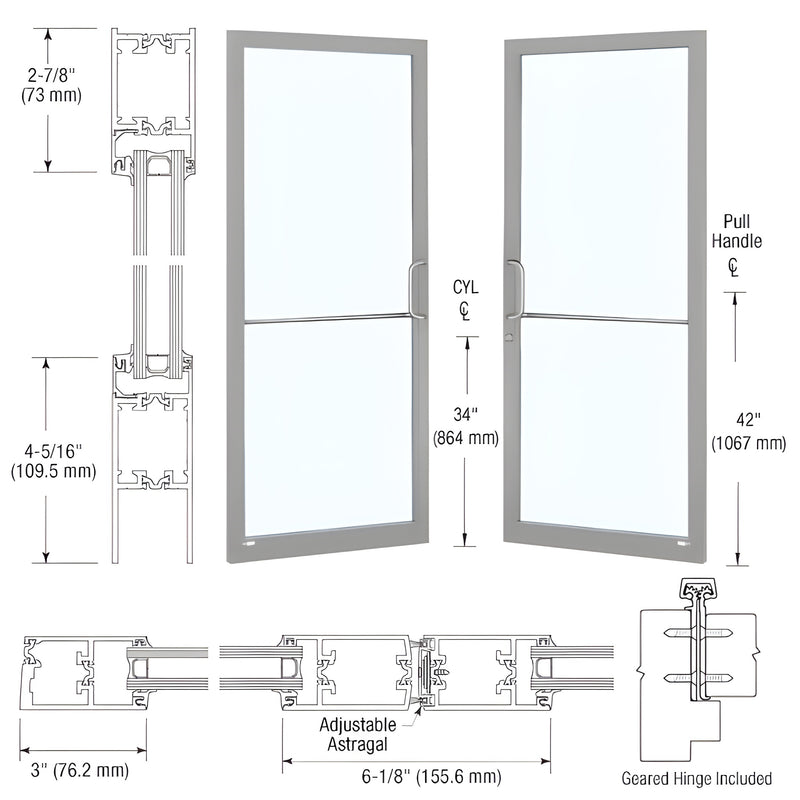

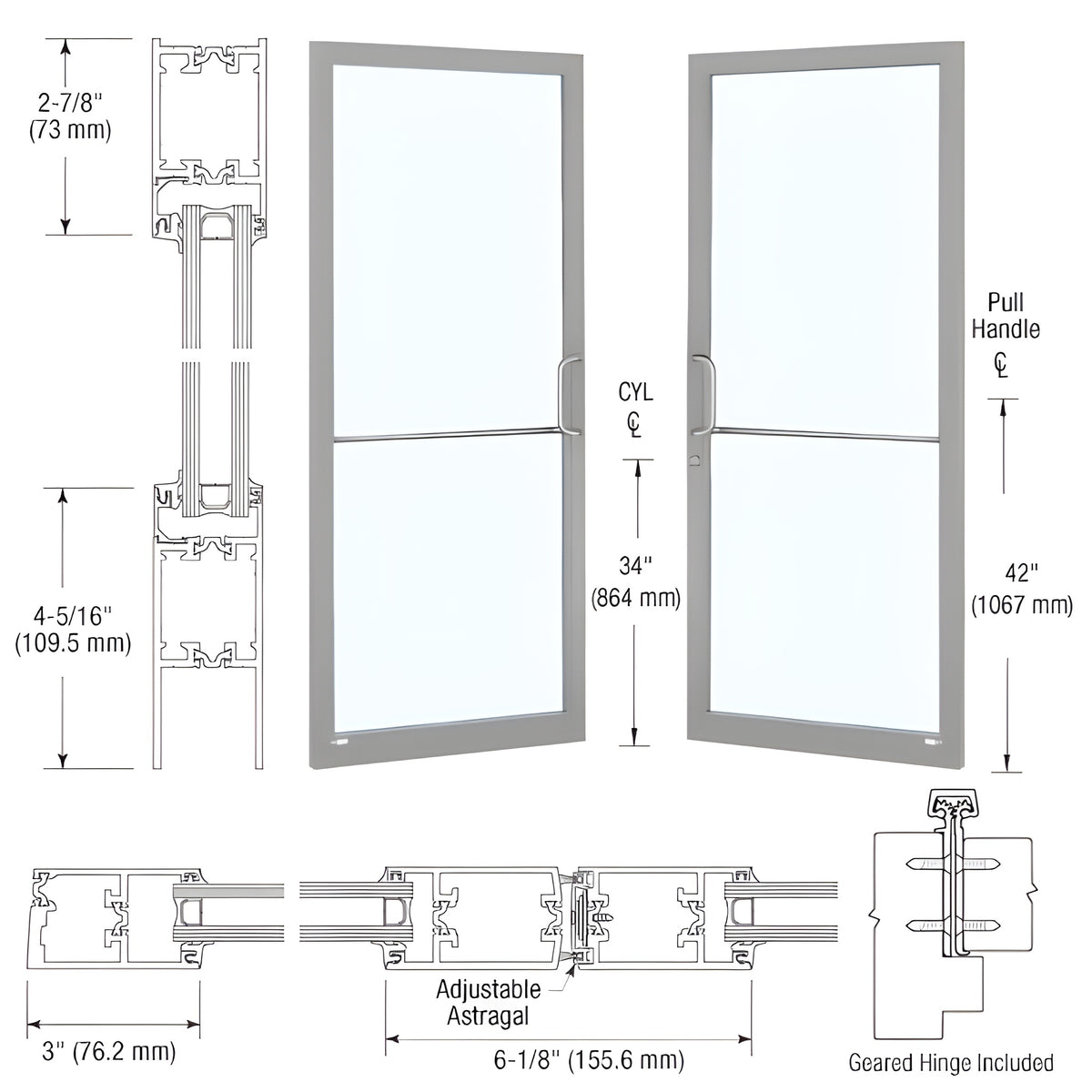

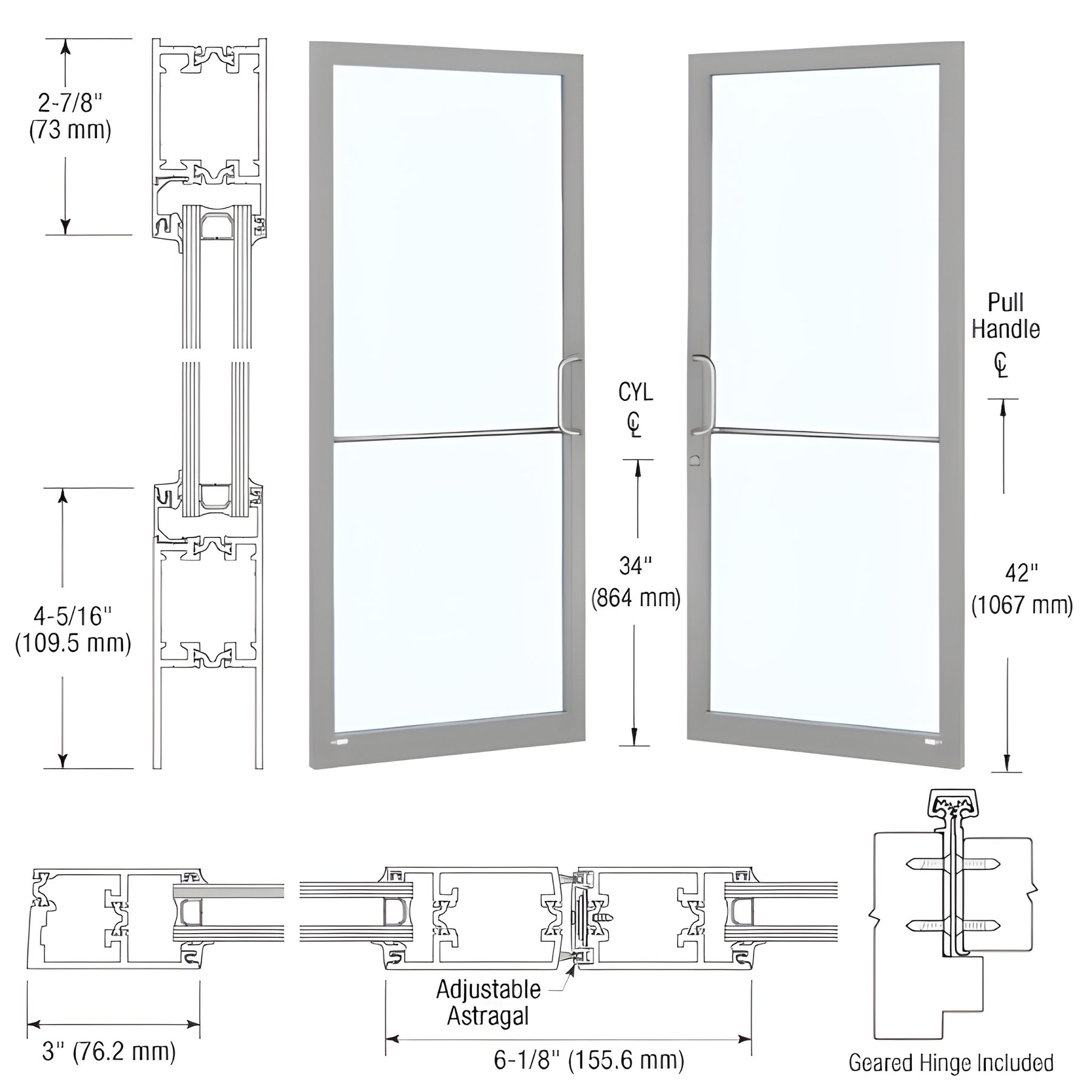

This CRL Custom Narrow Stile Entrance Door (SKU: 1D22811) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. The door ships ready for custom fabrication and is built to accept a wide range of optional commercial hardware. Glass stops are sized for 1/4" (6 mm) tempered glass (by others).
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
BIM Objects - rvt
