CRL-U.S. Aluminum 400T Clear Anodized Med Stile Butt Door Hinge Pair
CRL-U.S. Aluminum 400T Clear Anodized Med Stile Butt Door Hinge Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D42411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 7-1/4" (184 mm) Bottom Rail
- 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)

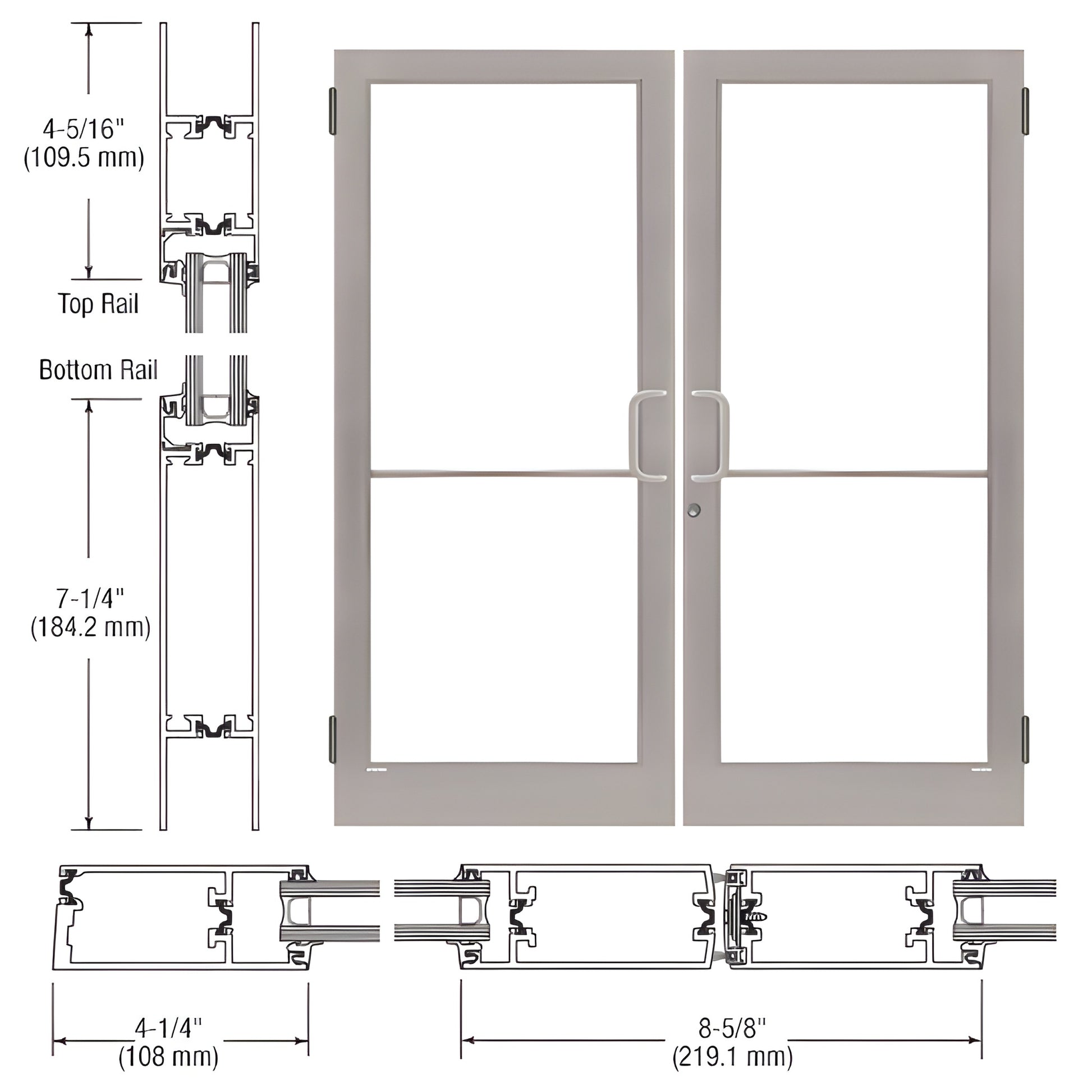

CRL Custom Medium Stile Entrance Door (SKU: 1D42411) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed for commercial storefronts, this medium stile entrance door is butt-hinge ready and engineered for custom fabrication to accept a wide range of optional hardware (handles, pivots, locksets) to meet project-specific requirements.
Optional 10" bottom rail upgrade offers ADA and Title 21 compliance for accessible entries. Door accepts a 1" (25 mm) tempered insulating glass unit (sold separately) for improved thermal performance while maintaining a storefront aesthetic. Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage.
Ready to spec this CRL custom medium stile entrance door for your project? Contact CRL Customer Service to confirm options and lead times.
Specifications
BIM Objects - rvt
