CRL-U.S. Aluminum 400T Clear Anodized Butt Hinge Pair Entrance Doors
CRL-U.S. Aluminum 400T Clear Anodized Butt Hinge Pair Entrance Doors
Regular price
$3,422.70 CAD
Regular price
Sale price
$3,422.70 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D42511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/4" (184 mm) bottom rail (10" / 254 mm bottom rail available to comply with A.D.A. and Title 24 applications)
- Custom fabricated to accept optional hardware applications

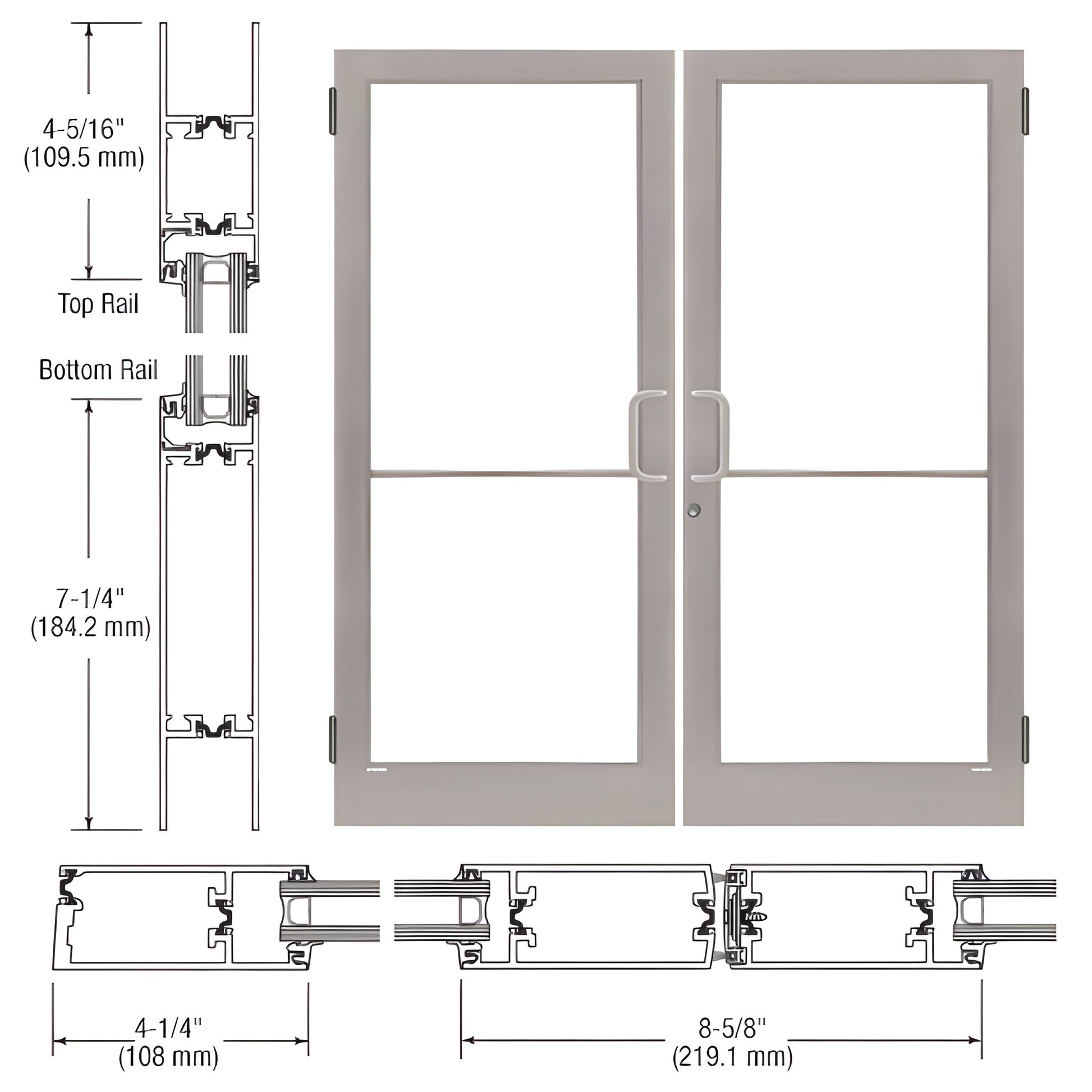

This CRL Custom Medium Stile Entrance Door (SKU: 1D42511) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed as a medium stile entrance door frame for commercial and retail storefronts, it includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The frame is ready for custom fabrication to accept a wide range of optional hardware, making it ideal for custom aluminum entrance door installations and ADA-compliant threshold configurations.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer upon receipt.
Need this custom medium stile entrance door for a specific hardware or ADA requirement? Contact CRL Customer Service to confirm options and place an order.
Specifications
BIM Objects - rvt
