CRL-U.S. Aluminum 36x84 Clear Anodized 400T Single Door Gear Hinge

• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available for A.D.A. and Title 21 compliance
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)

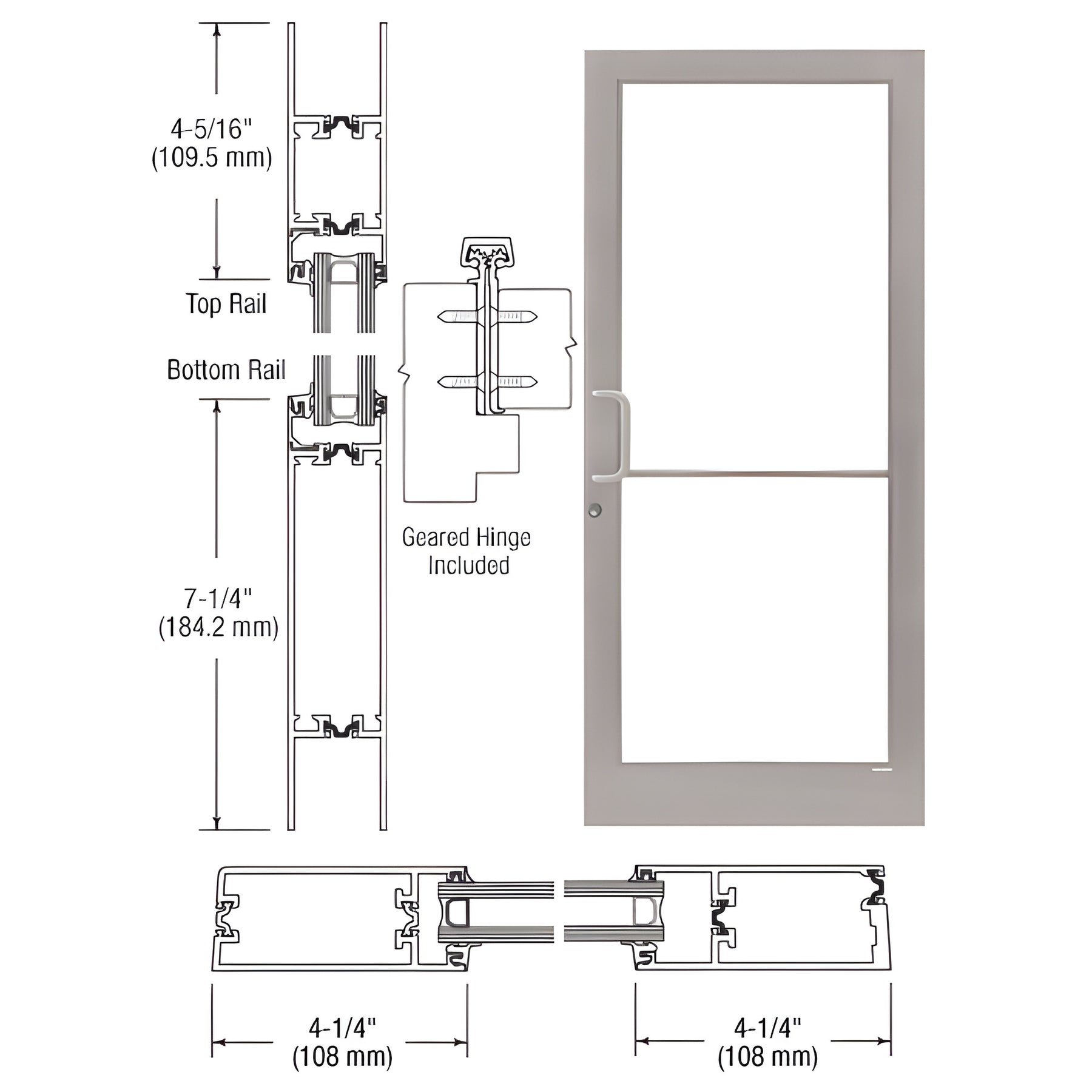

CRL Custom Medium Stile Entrance Door — SKU: 1D41811. Built with 4-1/4" (108 mm) stiles, 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed for medium-stile commercial entrances, this door ships ready for Gear Hinge hardware, includes glass stops for 1/4" (6 mm) tempered glass (by others), and is custom-fabricated to integrate a wide range of optional hardware. Ideal for storefront and commercial entrance applications where durable, customizable medium stile construction is required.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection standards. For A.D.A. compliance, choose the 10" bottom rail option.

Differentiators: Custom fabrication for optional hardware, included keyed‑alike cylinders and lock, ADA bottom‑rail option, and compatibility with 1" tempered insulating glass.

Ready to order or need a quote? Contact CRL Customer Service or add SKU 1D41811 to your cart.
