CRL-U.S. Aluminum 36x84 Clear Anodized 400T Med Stile Gear-Hinge Door

• Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and one cylinder
• 7-1/4" (184 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications (gear hinge locations and other customized hardware)
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)

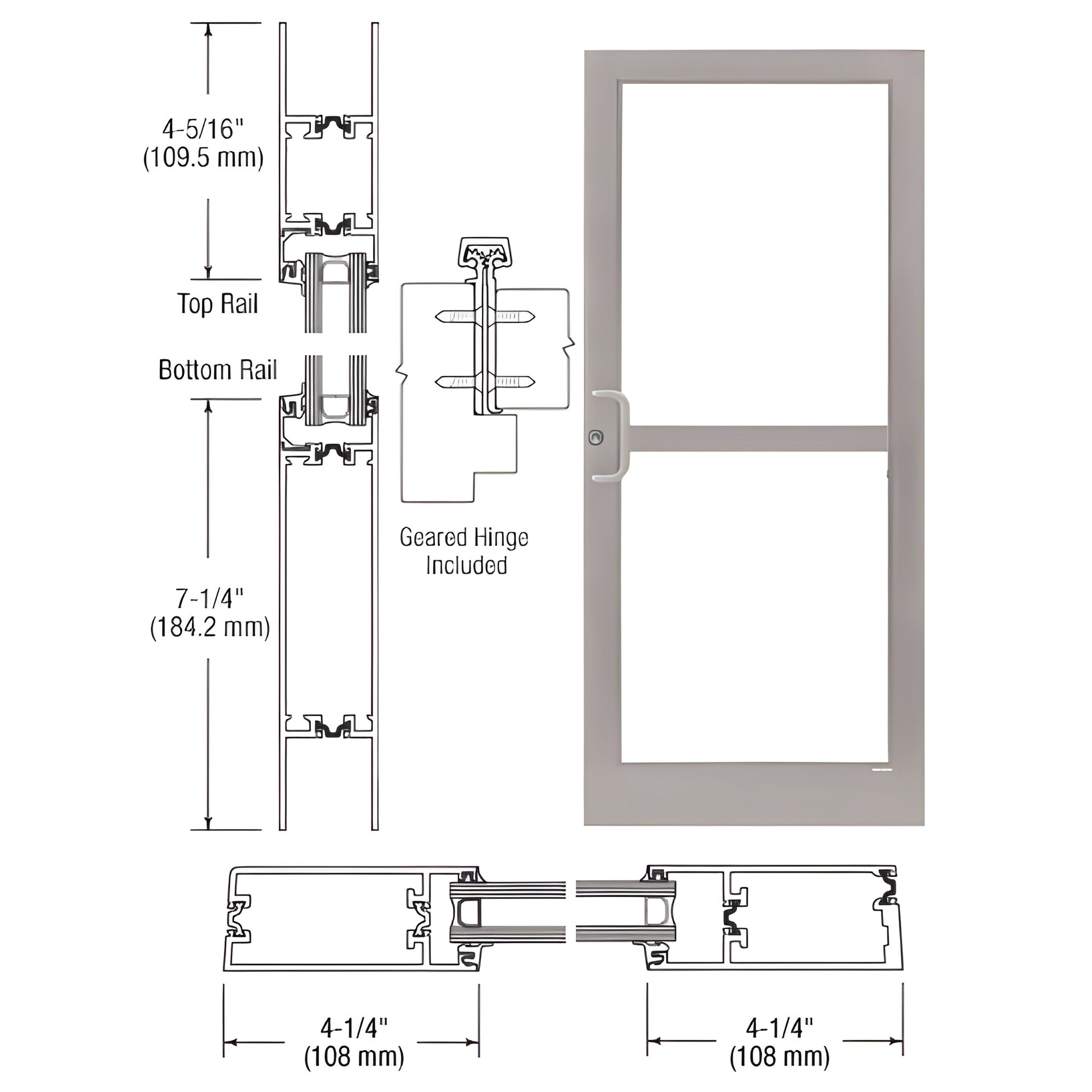

This CRL Custom Medium Stile Entrance Door (SKU: 1Z41811) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Standard preparation includes stiles for gear hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication and a wide range of optional hardware, including concealed vertical rod panic hardware for commercial storefronts and emergency egress doors.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Doors under 36" (914 mm) may not pass A.D.A. inspection. Designed for commercial entrance and storefront applications requiring tempered insulating units and customizable hardware prep.

Order SKU 1Z41811 or contact CRL for custom configurations and ADA-compliant bottom rail options.
