CRL-U.S. Aluminum 250T Clear Anodized Narrow Stile Butt Hinge

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)

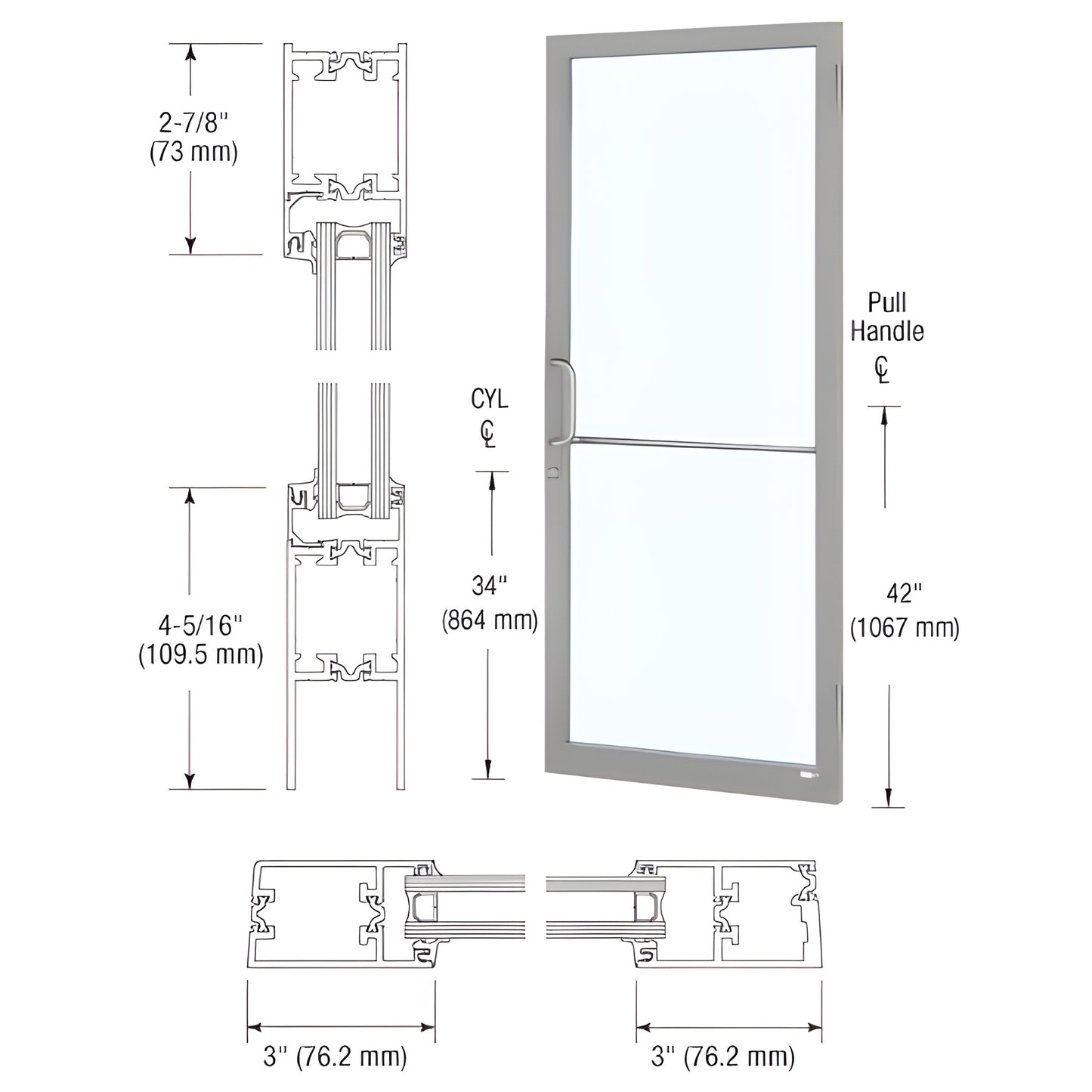

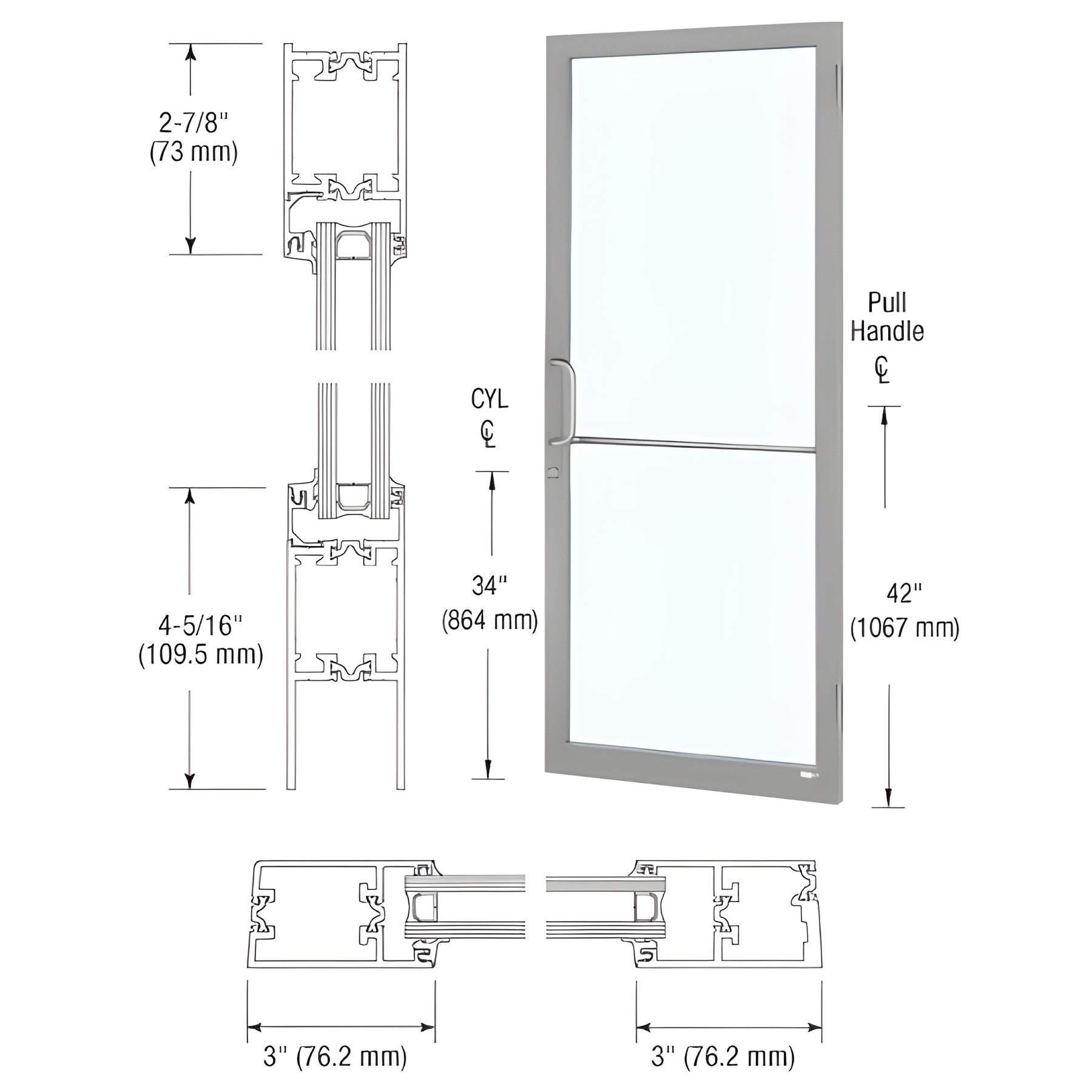

CRL Custom Narrow Stile Entrance Door (SKU: 1D21511) — Built for storefronts and commercial entryways, this narrow stile glass entrance door features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Designed for compatibility with butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others), the door is ready for custom fabrication to accept a wide range of optional hardware for commercial storefront, office, and retail applications.

Key differentiators: narrow stile profile for increased glass area, optional 10" bottom rail for ADA compliance, and preconfigured hanging hardware plus keyed‑alike cylinders for simplified installation and security. Note: included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Order SKU 1D21511 or contact CRL for custom hardware options and ADA guidance.
