CRL-U.S. Aluminum Clear Anodized Class 1 Custom Single Series 250T Narrow Stile Geared Hinge Thermal Entrance Door for Surface Mount Door Closer

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
• Custom Fabricated to Accept Optional Hardware Applications
• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)

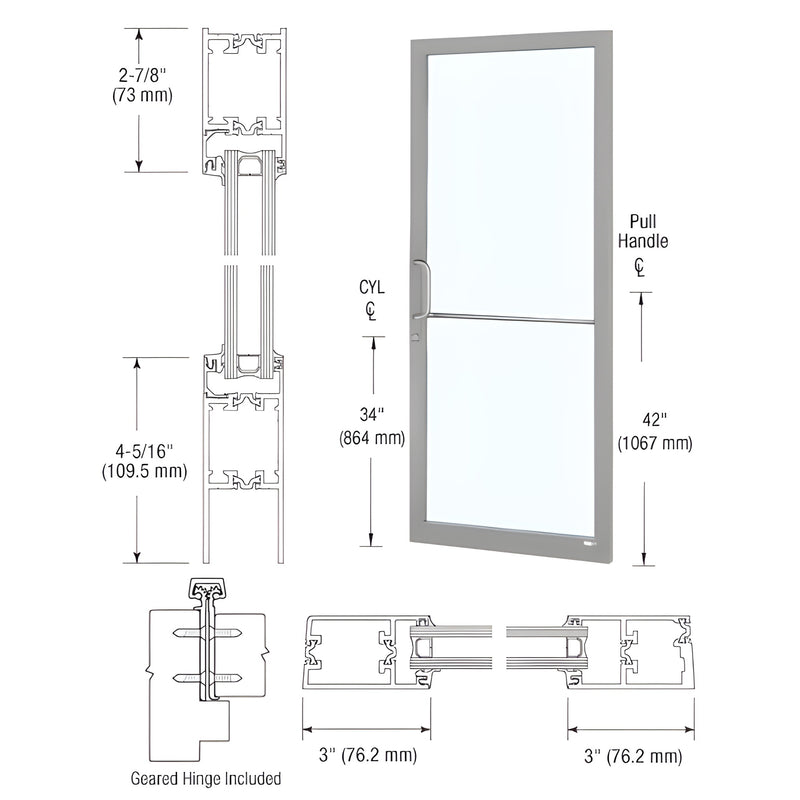

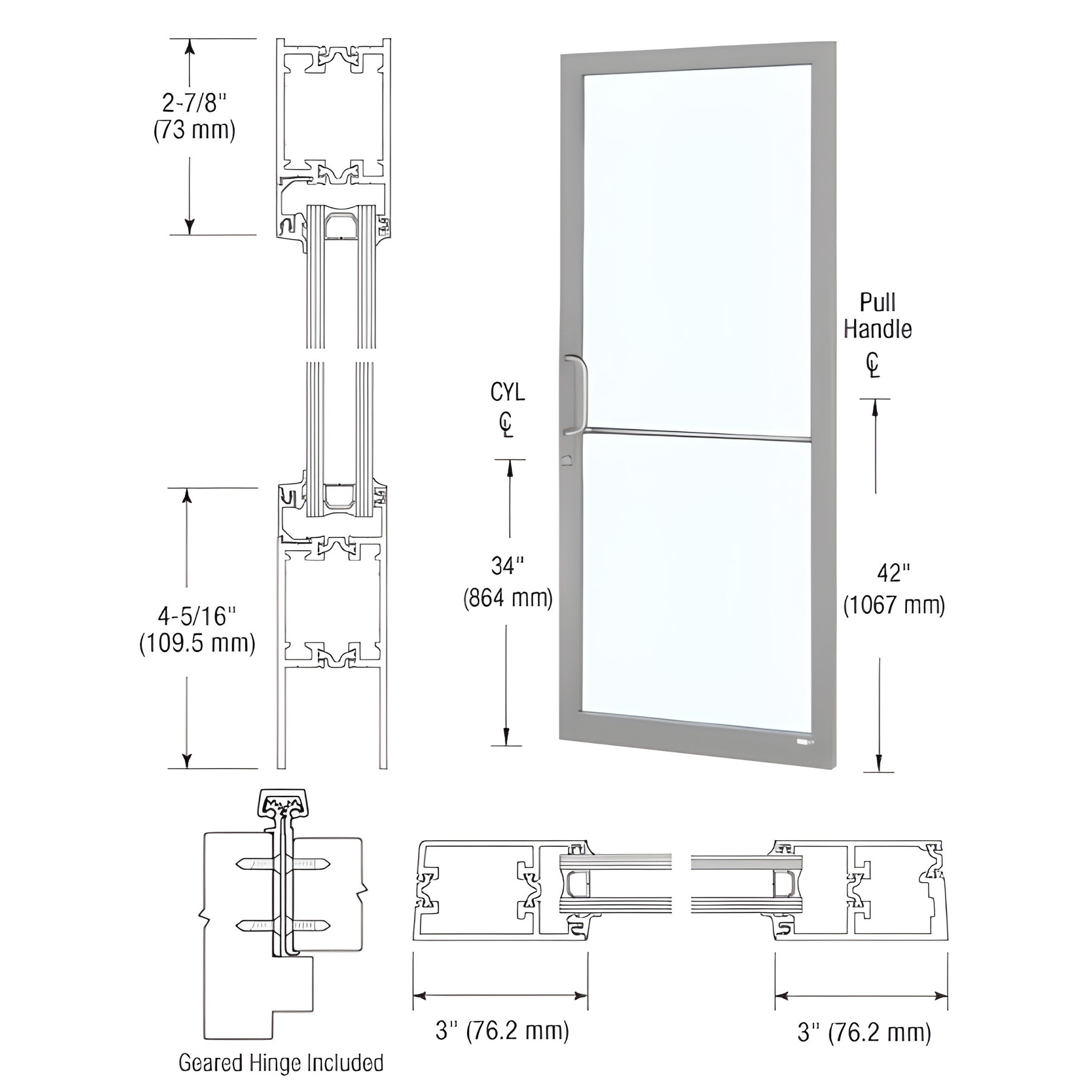

This CRL Custom Narrow Stile Entrance Door (SKU: 1D21811) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Designed for commercial storefront and glass entrance applications, it ships ready for custom fabrication to accept a wide range of optional hardware, including provisions for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). It accommodates a 1" (25 mm) tempered insulating unit for improved thermal performance (glass sold separately).

Standard package includes protruding hardware (handles, pivots, etc.) boxed separately to prevent damage in transit; customers must install these items. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. A 10" (254 mm) bottom rail option is available for ADA and Title 21 compliance—ideal for accessible commercial entrances seeking code-compliant solutions.

Order SKU 1D21811 or contact CRL for custom fabrication and ADA-compliant bottom rail options.
