Product Details
- 4-5/16" (110 mm) Bottom Rail
- 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
- Custom Fabricated to Accept Optional Hardware Applications
- Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders

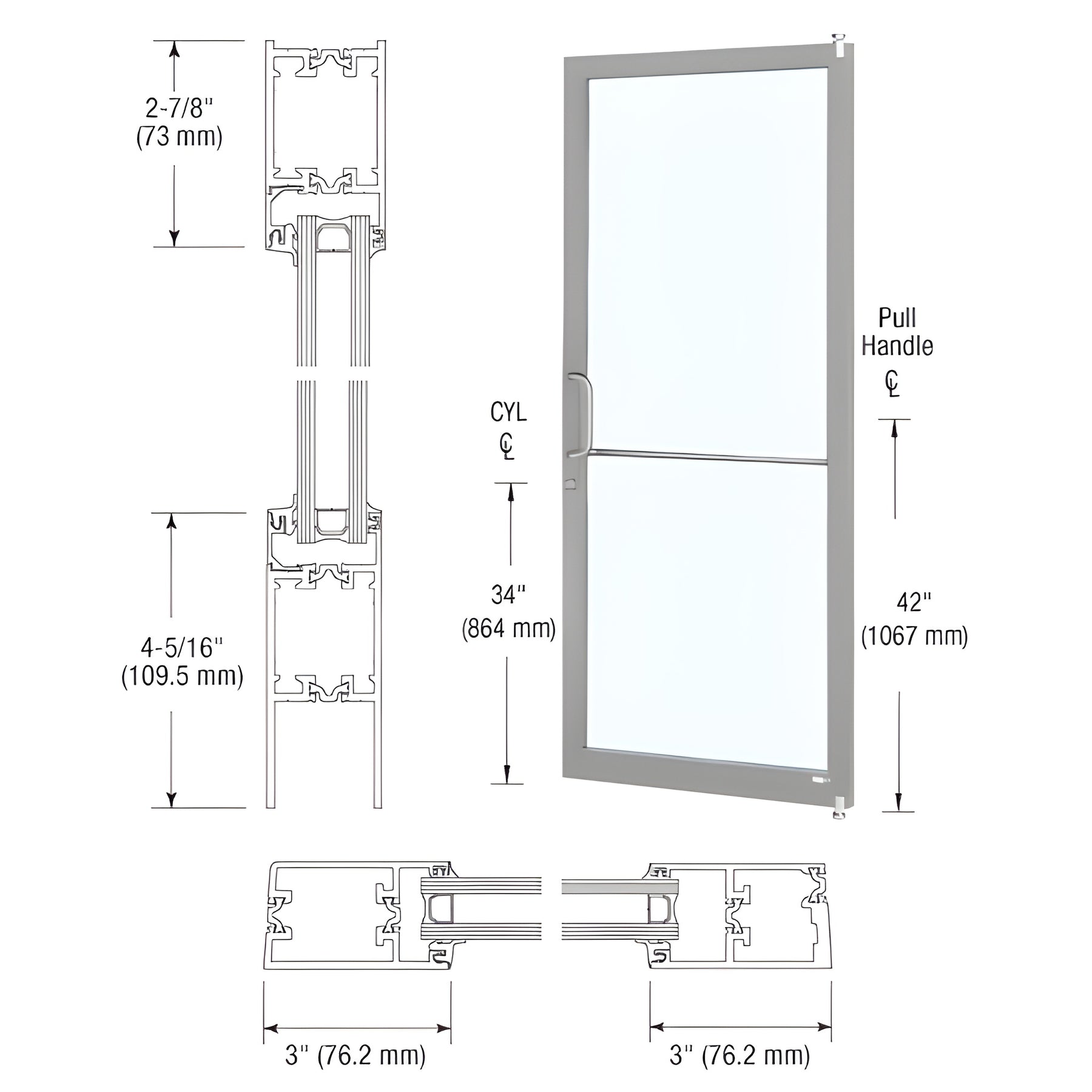

This CRL Custom Narrow Stile Entrance Door is built with 3" (76 mm) Stiles, 2-7/8" (73 mm) Top Rail, and 4-5/16" (110 mm) Bottom Rail. Standard features include stiles for Offset Pivot hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
