CRL-U.S. Aluminum 400T Clear Anodized Butt Hinge for Entrance Door

• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder

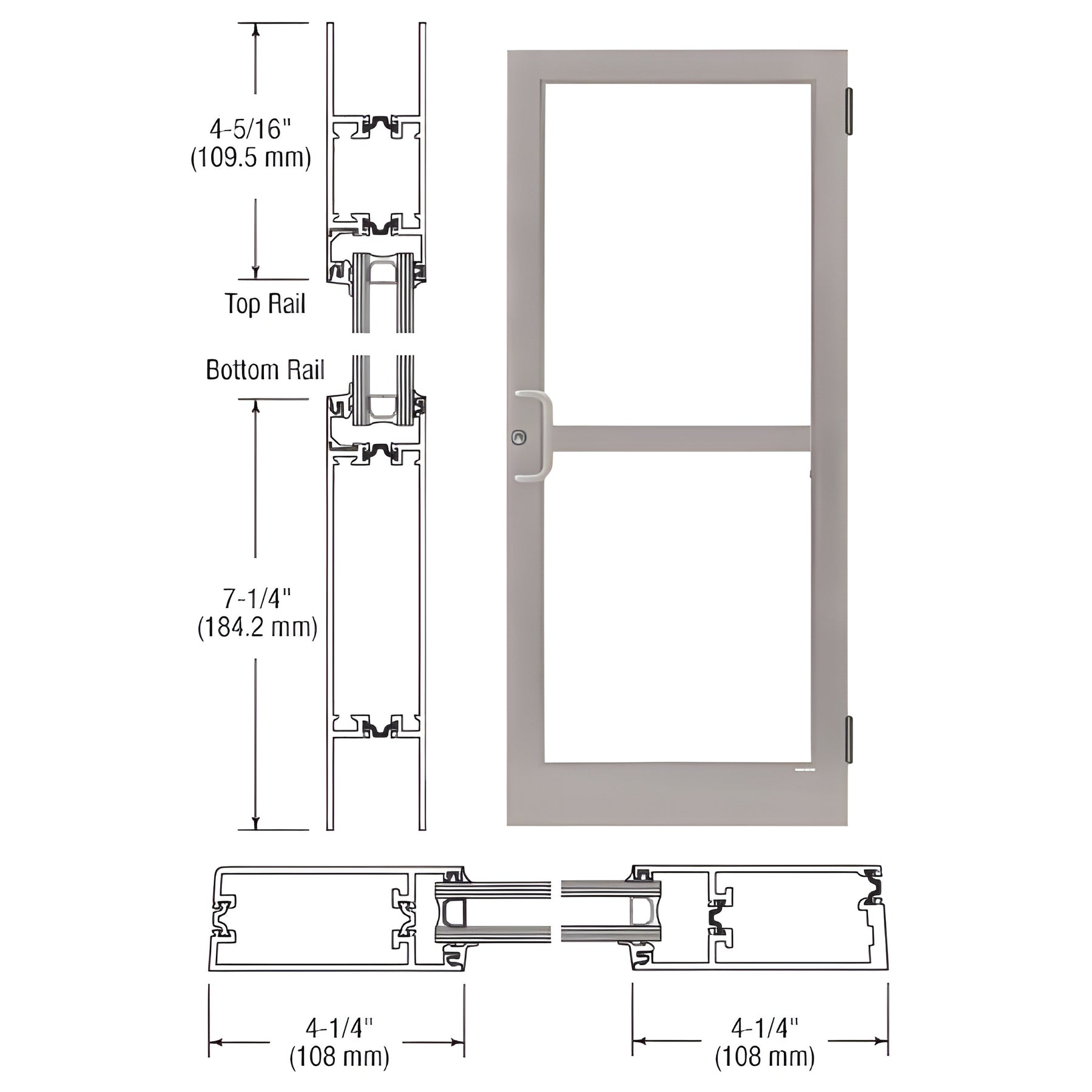

This CRL Custom Medium Stile Entrance Door features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Built for commercial use, it ships with stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accept a wide range of optional hardware for storefront and commercial entry solutions.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed at job site. Door widths under 36" (914 mm) may not pass A.D.A. inspection. For ADA-compliant installations, choose the 10" (254 mm) bottom rail option.

SKU: 1Z41511 — Order this commercial medium stile entrance door for durable, customizable storefront performance. Contact us to configure hardware and glazing options.
