CRL-U.S. Aluminum IT451 Clear Anodized Custom Open-Back Hinge Frame
CRL-U.S. Aluminum IT451 Clear Anodized Custom Open-Back Hinge Frame
Regular price
$2,028.74 CAD
Regular price
Sale price
$2,028.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1B71411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

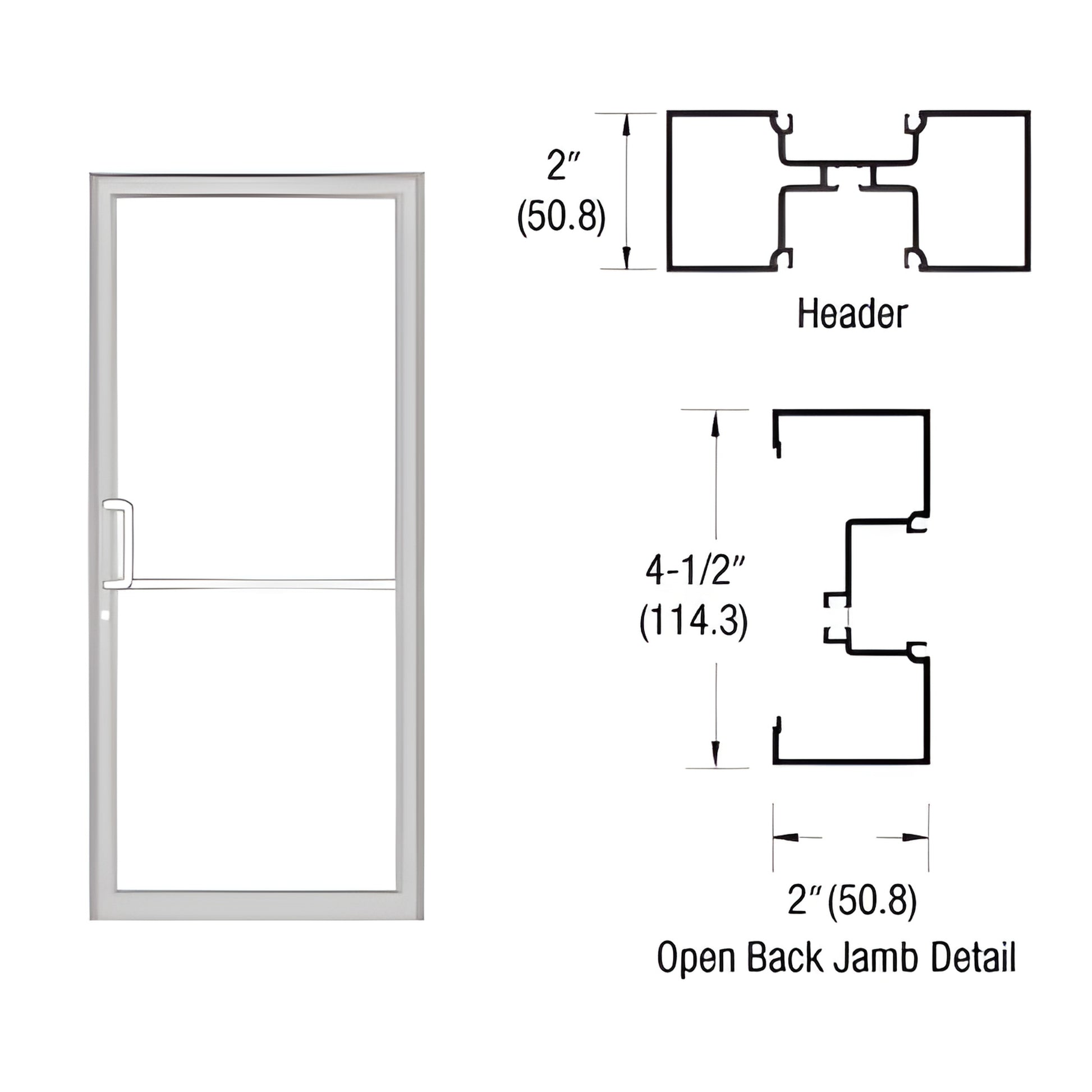

- 2" x 4-1/2" (50.8 x 114.3 mm) Up and Over Frame with Open Back Jambs — commercial-grade aluminum, ideal for retrofit and new-construction openings
- Aluminum Threshold Included
- Custom Size — configurable to non‑standard openings
Complete Frame built to accommodate a base 36" x 84" butt-hinge 1-3/4" door for a 105º overhead concealed closer with offset arm. Constructed using 1T442 open back jambs with 1450 header. Includes DS051 door stops for 1-3/4" door, weatherstrip, standard hardware, and hardware preparations.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection. SKU: 1B71411
Contact CRL Customer Service to order SKU 1B71411 or request a shipping weight and quote.
