CRL-U.S. Aluminum IG500 Clear-Anodized UpOver Door Frame Geared Hinge
CRL-U.S. Aluminum IG500 Clear-Anodized UpOver Door Frame Geared Hinge
Regular price
$2,342.57 CAD
Regular price
Sale price
$2,342.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P41911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes prep for overhead concealed closer and CVR panic strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available

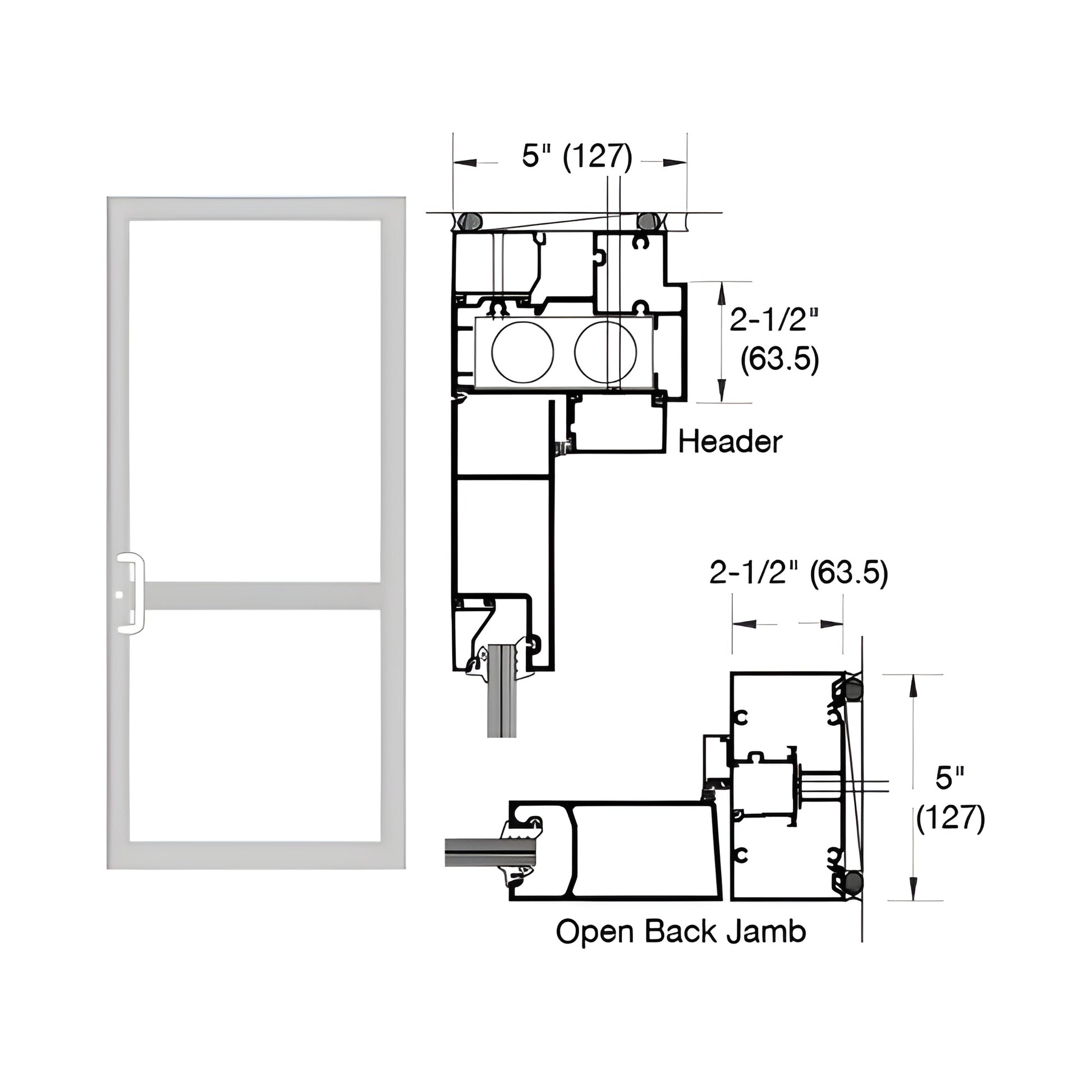

- 2-1/2" x 5" (63.5 x 127 mm) geared hinge up/over door frame (geared hinge not included)
This Custom Up/Over Door Frame (SKU: 0P41911) is engineered for a single geared-hinged hurricane impact door using 9/16" (14) laminated impact glazing. Constructed from IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header to accept an overhead concealed closer, with TH811 air threshold and hardware preparations for an overhead concealed closer and standard CVR panic strike. Ideal as a hurricane impact door frame or replacement frame for coastal and high-wind installations.
When installing hurricane impact products, always refer to FPA guidelines.
Request a quote or order SKU 0P41911
