CRL-U.S. Aluminum Clear Anodized Class 1 Series IG500 Custom Up/Over Door Frame for Geared Hinged, CVR Strike, and Overhead Concealed Closer

Product Details

• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold
• 2-1/2" x 5" (63.5 x 127 mm) Geared Hinge Up/Over Door Frame (Geared Hinge Not Included)
• Includes Prep for Overhead Concealed Closure and CVR Panic Strike

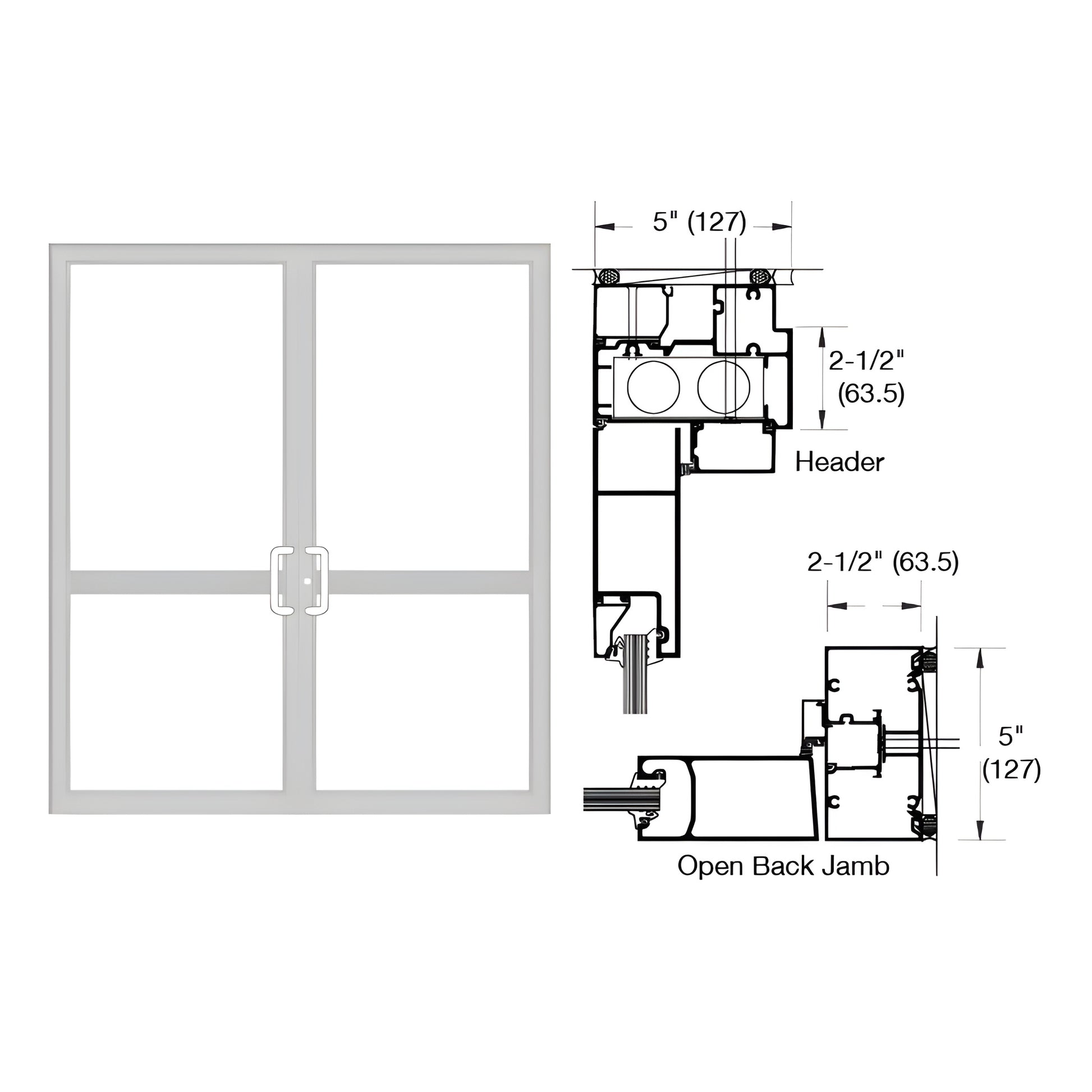

This Custom Up/Over Door Frame is built to accommodate a Pair Geared Hinged Hurricane Impact Doors using 9/16" (14) Laminated Impact Glazing, Constructed using IG526/IG047/IG046 Door Jambs, IG577/IG563/IG200 Header for Overhead Concealed Closer, and TH811 Air Threshold, Hardware preparations include Overhead Concealed Closer, standard CVR Panic strike.

When installing hurricane impact product always refer to FPA Guidelines.
