CRL-U.S. Aluminum Left Up-and-Over Hinge Frame, Clear Anodized
CRL-U.S. Aluminum Left Up-and-Over Hinge Frame, Clear Anodized
Regular price
$484.06 CAD
Regular price
Sale price
$484.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0Z71211R36
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

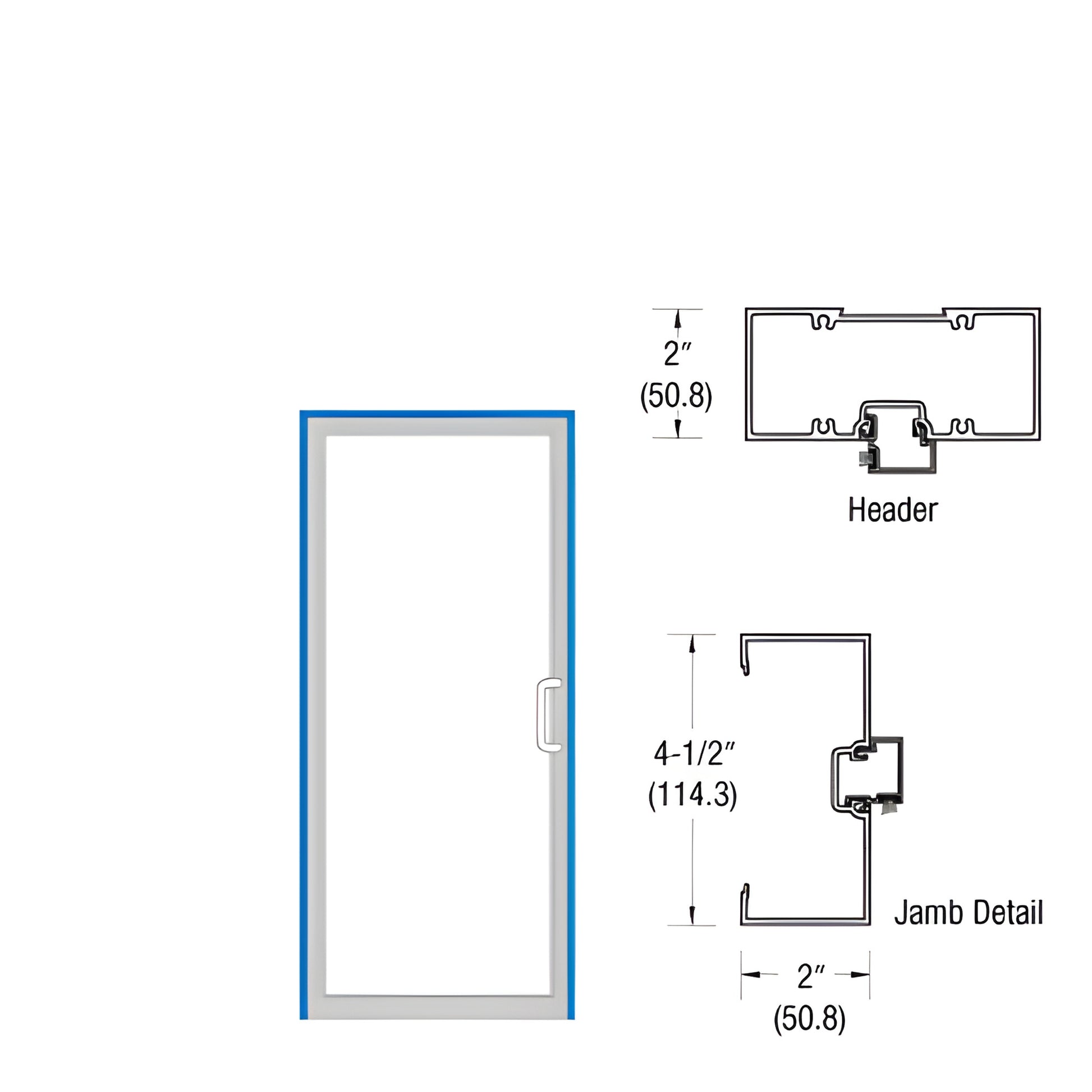

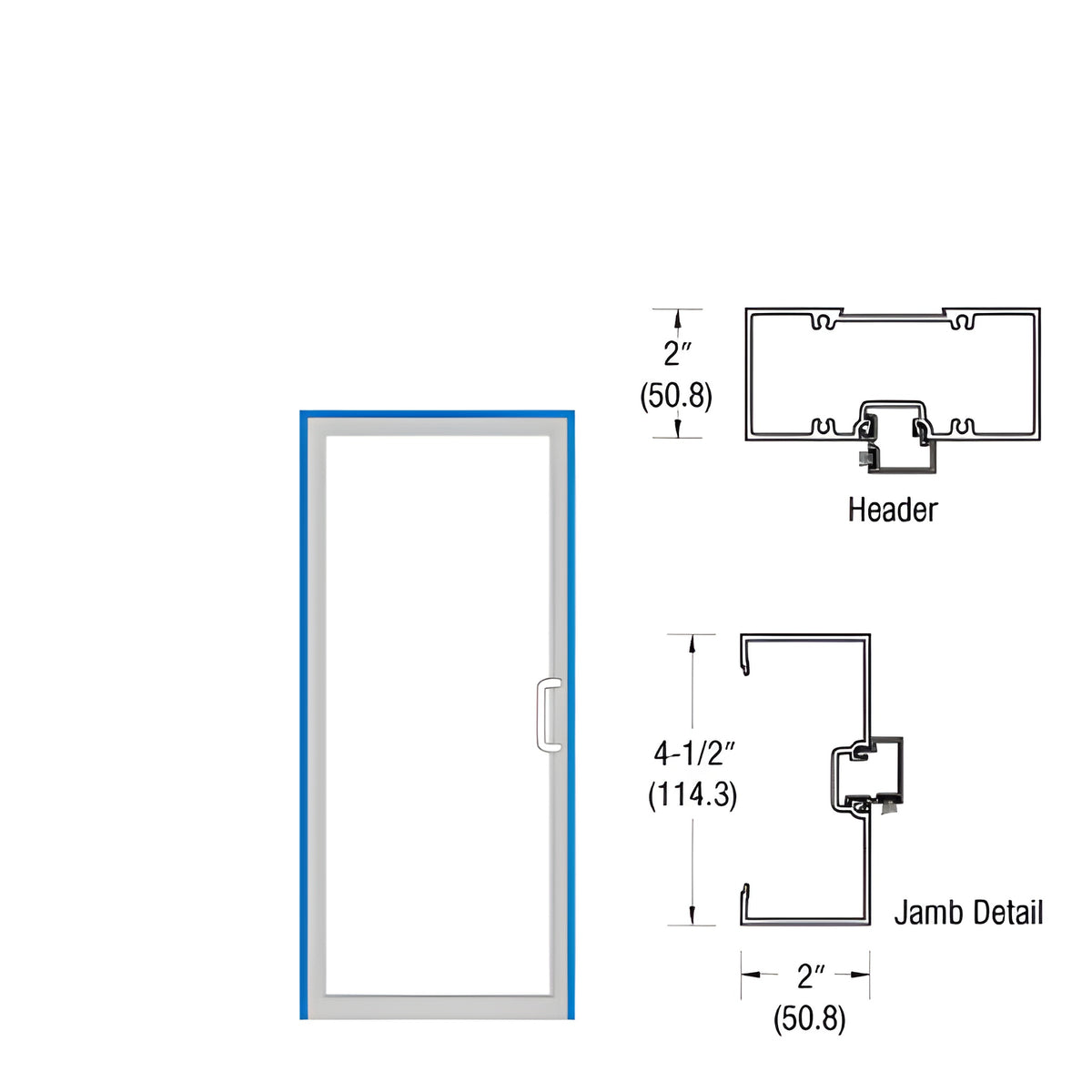

- 40" x 86" (1.02 x 2.18 m) overall frame size
- Standard 2" x 4-1/2" (51 x 114 mm) frame
- Single-door and double-door frame options
- Available in open back jamb profile for easier field wiring and adjustments
- Prepped for offset pivots and concealed vertical rod panic devices (panic hardware not included)
- 36" x 84" (914 mm x 2.13 m) door opening
2" x 4-1/2" (51 x 114 mm) up-and-over frame for pair of doors constructed using IS466/DS047 open back door jambs and I450/DA201 header with offset arm cover. Frame is prepped for OP400 offset pivots, 105° concealed overhead closer, and strikes for concealed vertical rod panic systems, making it ideal for commercial, institutional, and high-traffic exit applications.
SKU: 0Z71211R36
Order this prepped commercial door frame (open back jamb, prepped for concealed vertical rod panic and offset pivots) for a faster installation—contact CRL Customer Service to confirm weight or availability.
