CRL-U.S. Aluminum 72x84 Clear Anodized Pair Gear Hinge Entrance Doors
CRL-U.S. Aluminum 72x84 Clear Anodized Pair Gear Hinge Entrance Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware (handles and pivots boxed separately to prevent transit damage)
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass sold separately)
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications (gear hinge-ready stiles)

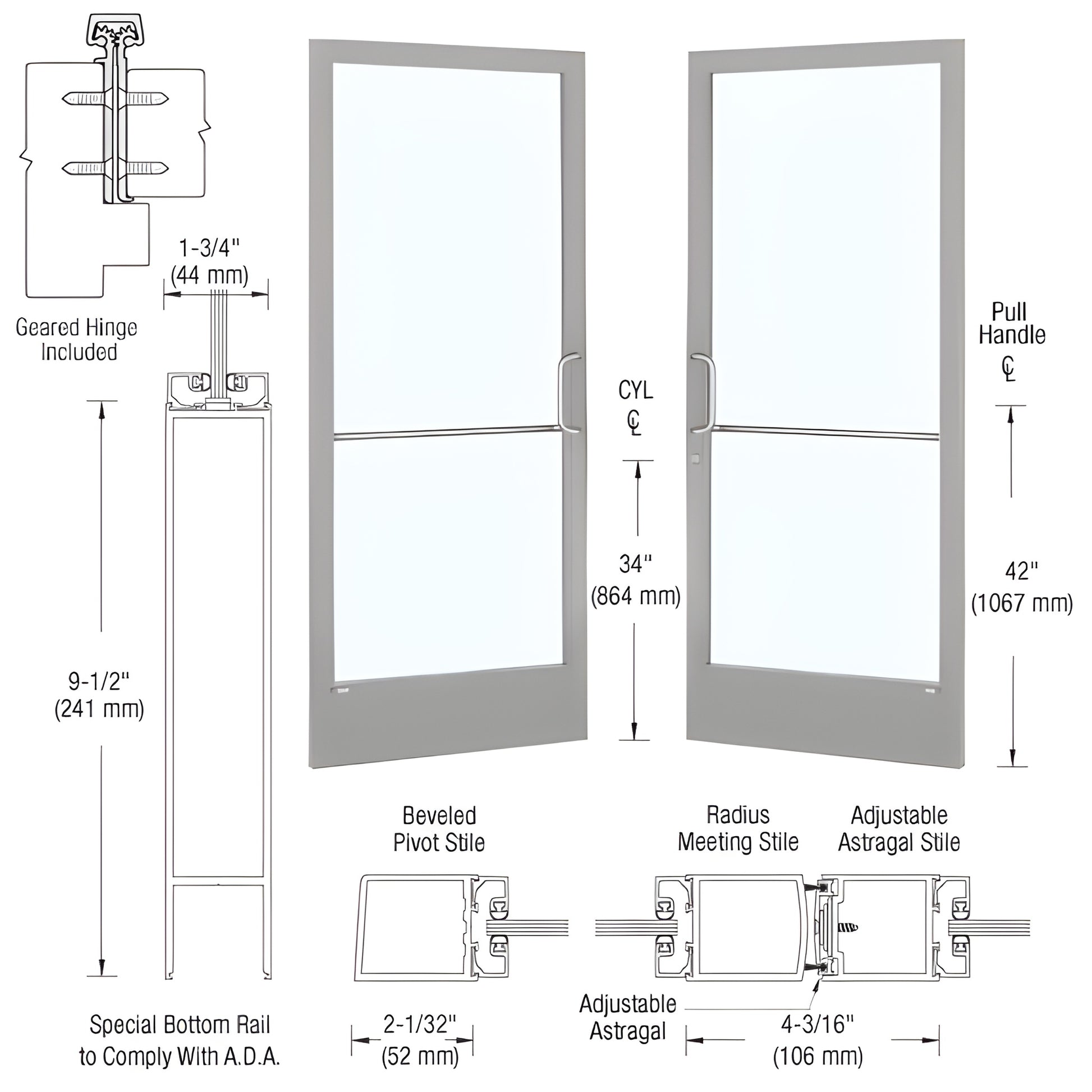

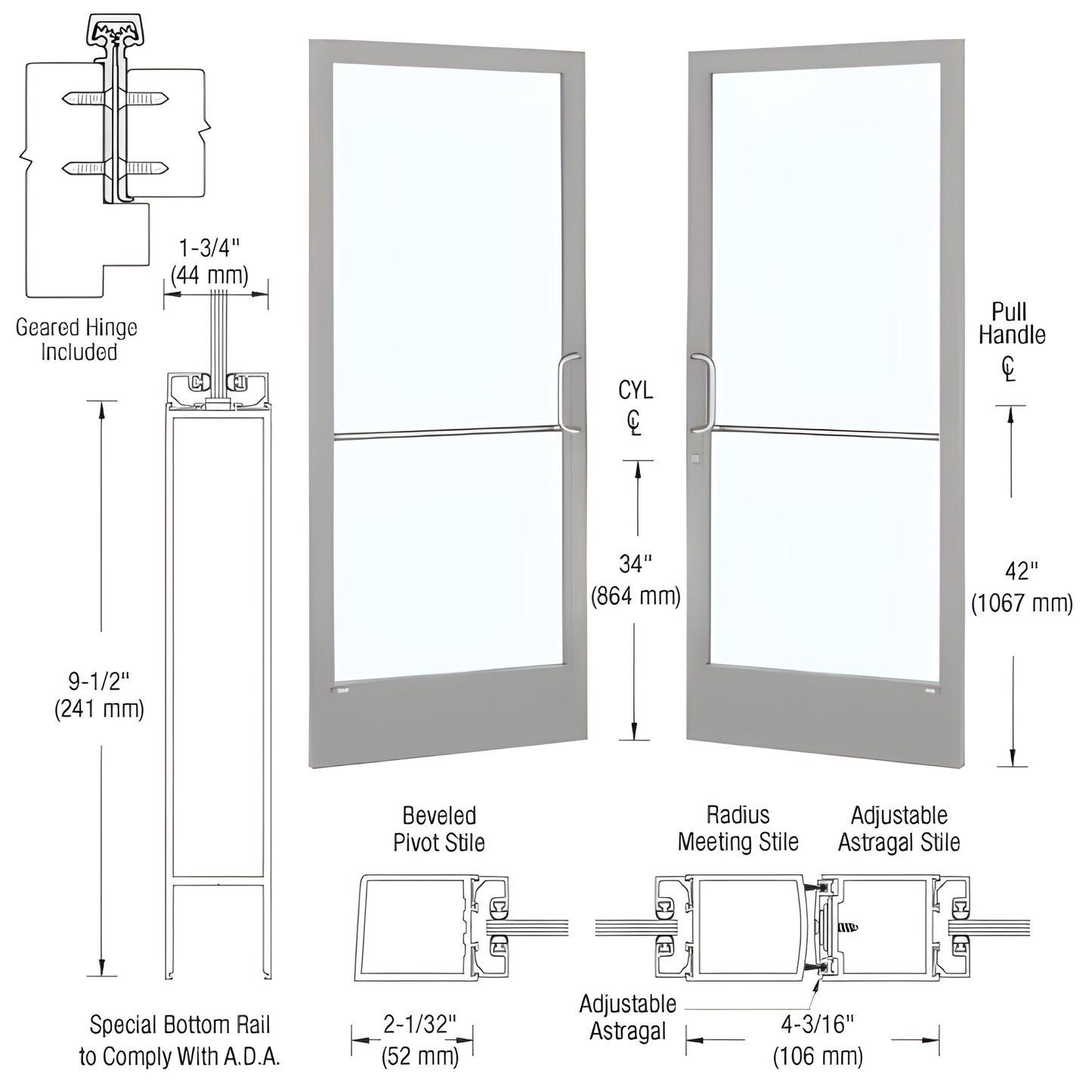

This CRL Custom Narrow Stile Entrance Door (SKU: CD22811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard design includes stiles prepared for gear-hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom fabrication, it supports multiple optional hardware configurations for commercial and storefront installations.
Order the CD22811 custom narrow stile entrance door today — contact CRL for pricing and lead times.
Specifications
BIM Objects - rvt
