CRL-U.S. Aluminum 72x84 Narrow Stile Doors Series 250 Gear Hinge
CRL-U.S. Aluminum 72x84 Narrow Stile Doors Series 250 Gear Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)

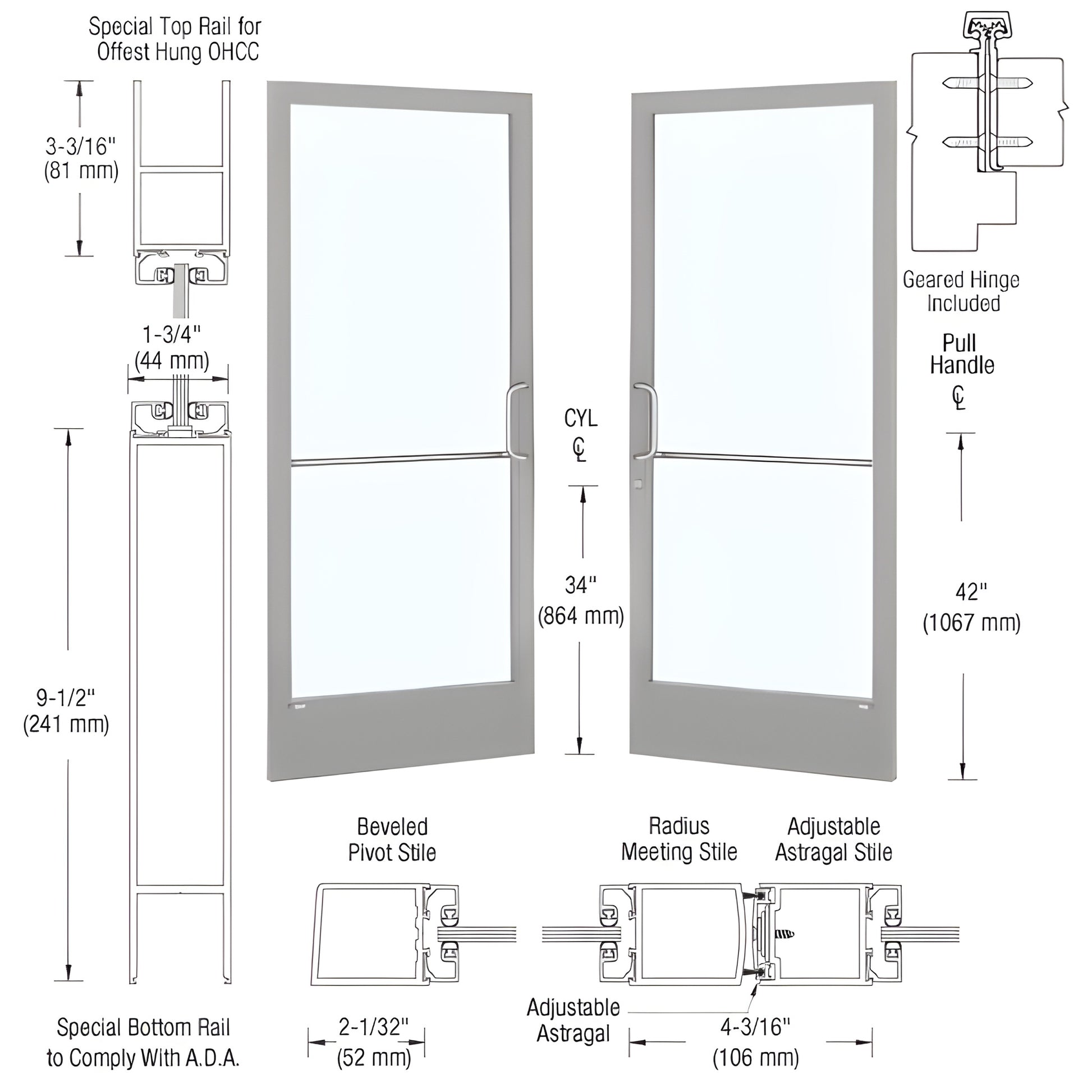

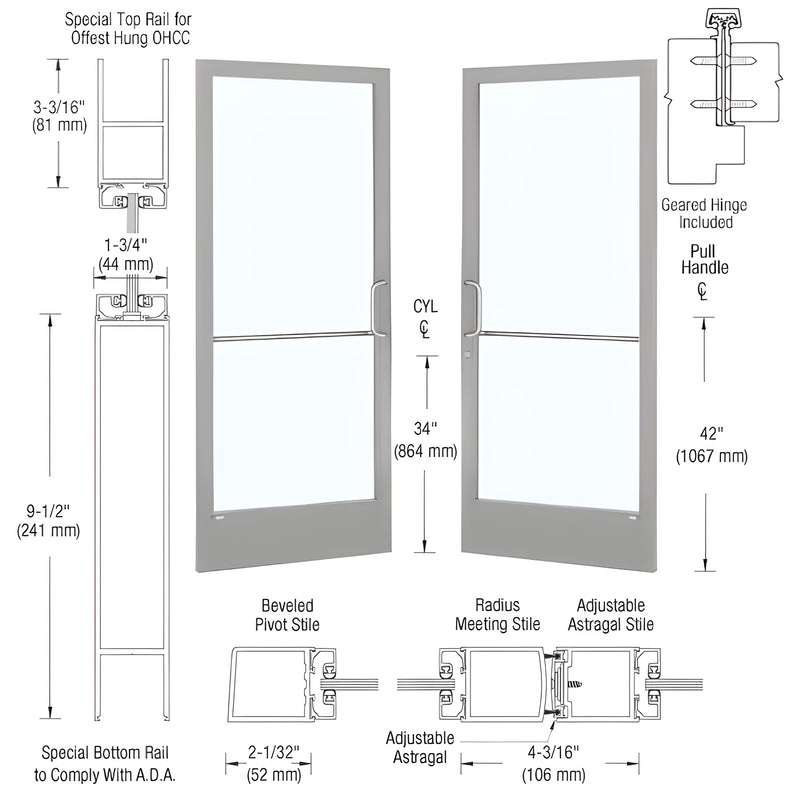

This CRL Custom Narrow Stile Entrance Door (SKU: CD22911) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed as a narrow stile glass entrance door, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Built for custom narrow-stile storefront and commercial glass door applications, it supports a wide range of optional hardware and accessory integrations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Order the CD22911 CRL Custom Narrow Stile Entrance Door for ADA-compliant commercial storefront installations — contact CRL to confirm options and lead times.
Specifications
BIM Objects - rvt
