CRL-U.S. Aluminum 72x84 Clear Anodized Double Entrance Door Gear Hinge
CRL-U.S. Aluminum 72x84 Clear Anodized Double Entrance Door Gear Hinge
Regular price
$2,370.60 CAD
Regular price
Sale price
$2,370.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1Z42811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/4" (184 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications and a wide range of commercial storefront hardware

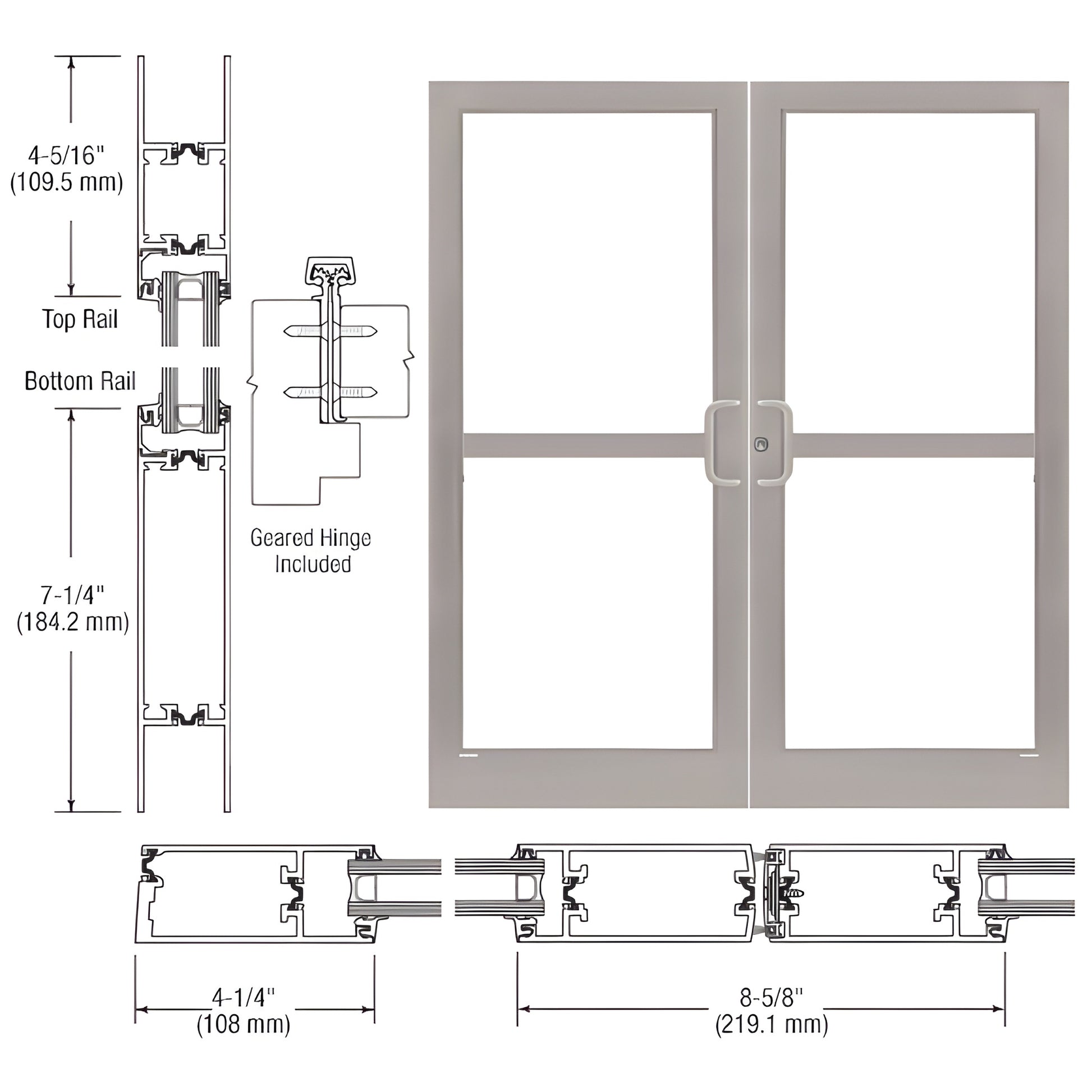

CRL Custom Medium Stile Entrance Door (SKU: 1Z42811) — Built with 4-1/4" (108 mm) stiles, 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Stiles are prepped for Gear Hinge hardware and include glass stops for 1/4" (6 mm) tempered glass supplied by others. Designed for custom fabrication to accommodate concealed vertical rod panic hardware and other optional commercial door hardware.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent shipping damage and must be installed by the customer upon receipt.
Order this medium stile entrance door for a customizable, ADA-capable commercial storefront solution — contact CRL to configure options and hardware.
Specifications
BIM Objects - rvt
