CRL-U.S. Aluminum S400 Offset Pivot Entry Doors - Clear Anodized
CRL-U.S. Aluminum S400 Offset Pivot Entry Doors - Clear Anodized
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD42211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Finish/Color
Clear Anodized Class 1
Overview

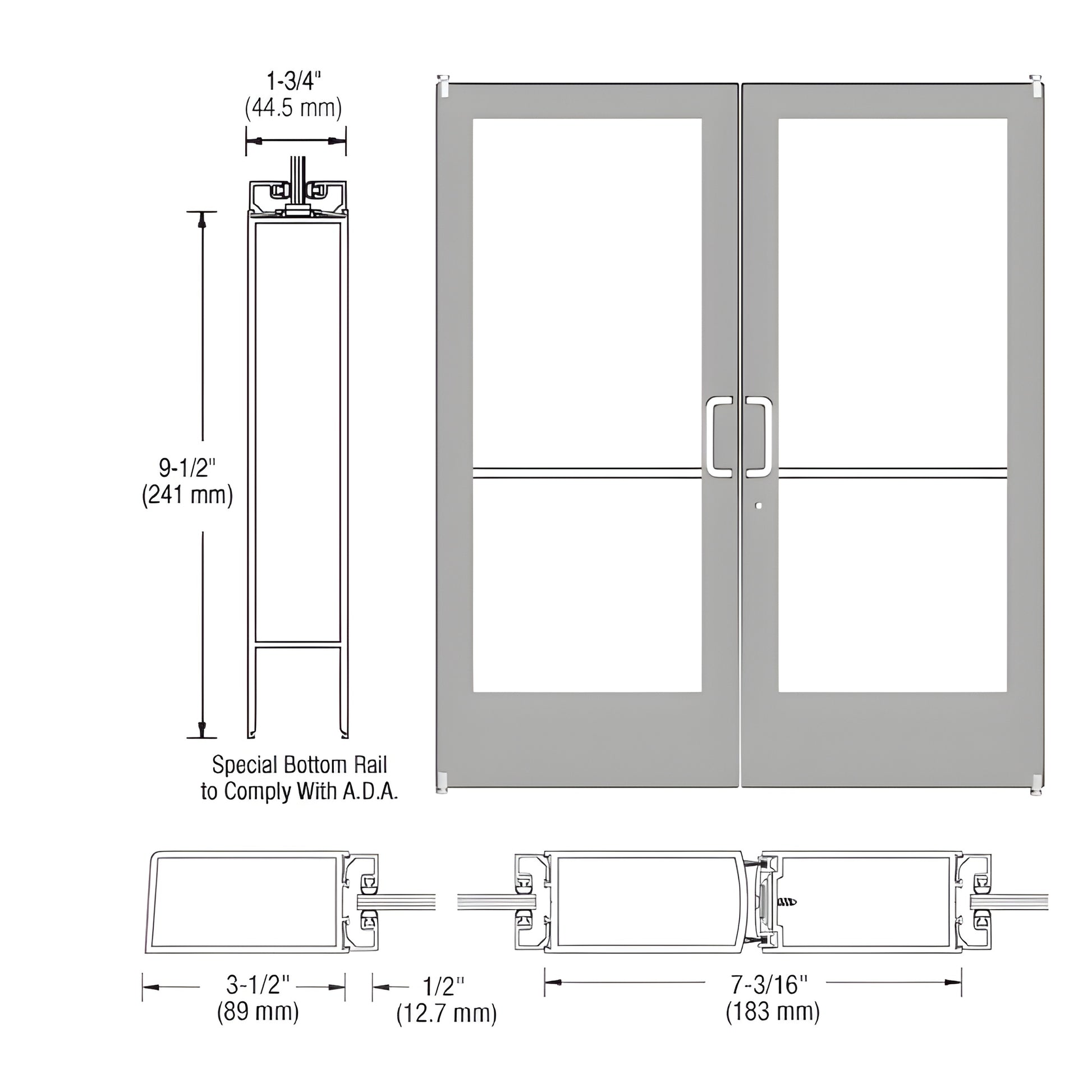

- 9-1/2" (241 mm) bottom rail — ADA compliant installation
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
This CRL Custom Medium Stile Entrance Door (SKU: CD42211) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial entrances, it ships ready for Offset Pivot hardware and includes glass stops for 1/4" tempered glass (by others). Custom fabrication accommodates a wide range of optional hardware for storefront, office, and institutional applications.
Hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Specifications
BIM Objects - rvt
