CRL-U.S. Aluminum 550 Wide-Stile Geared Hinge for Surface Closers
CRL-U.S. Aluminum 550 Wide-Stile Geared Hinge for Surface Closers
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD52811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

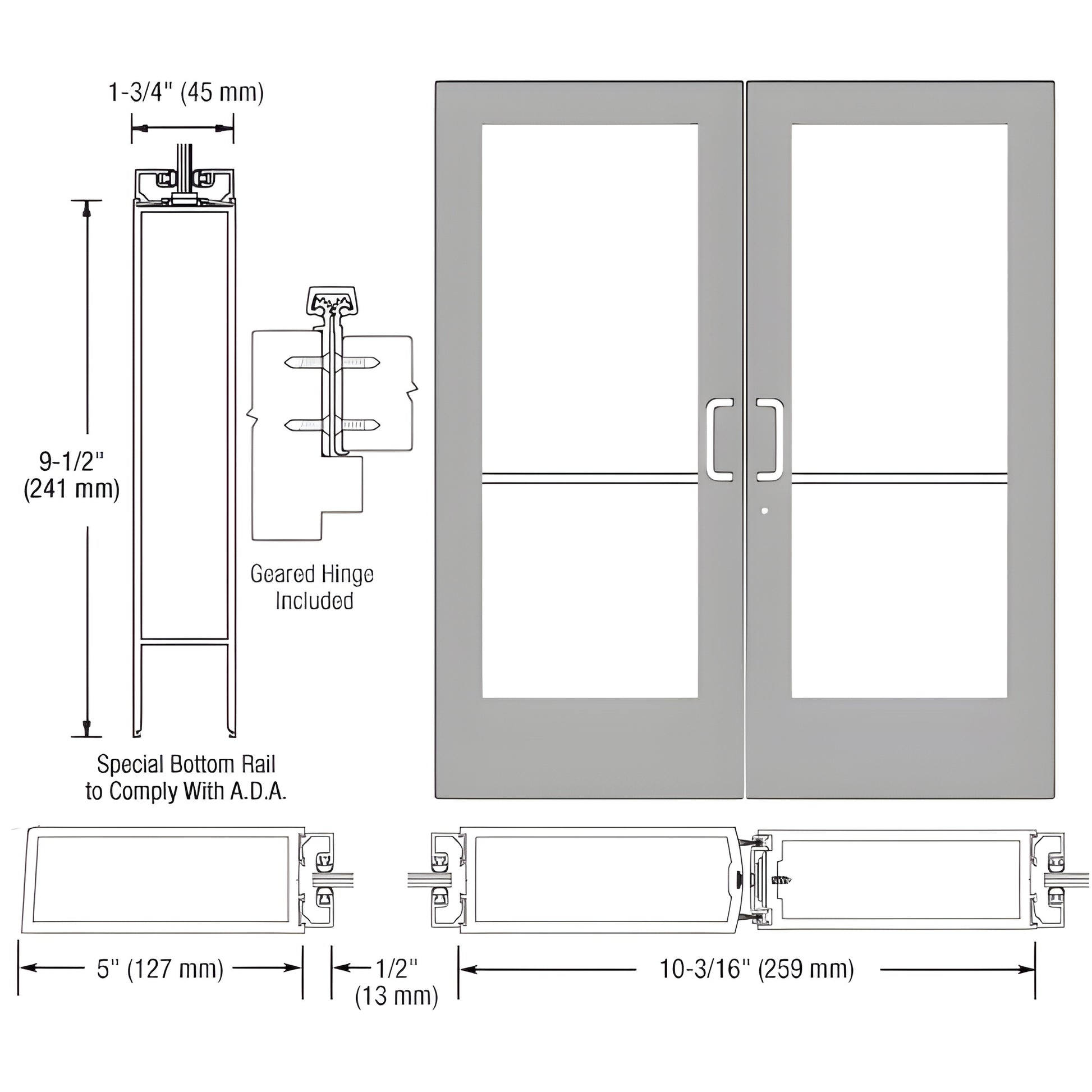

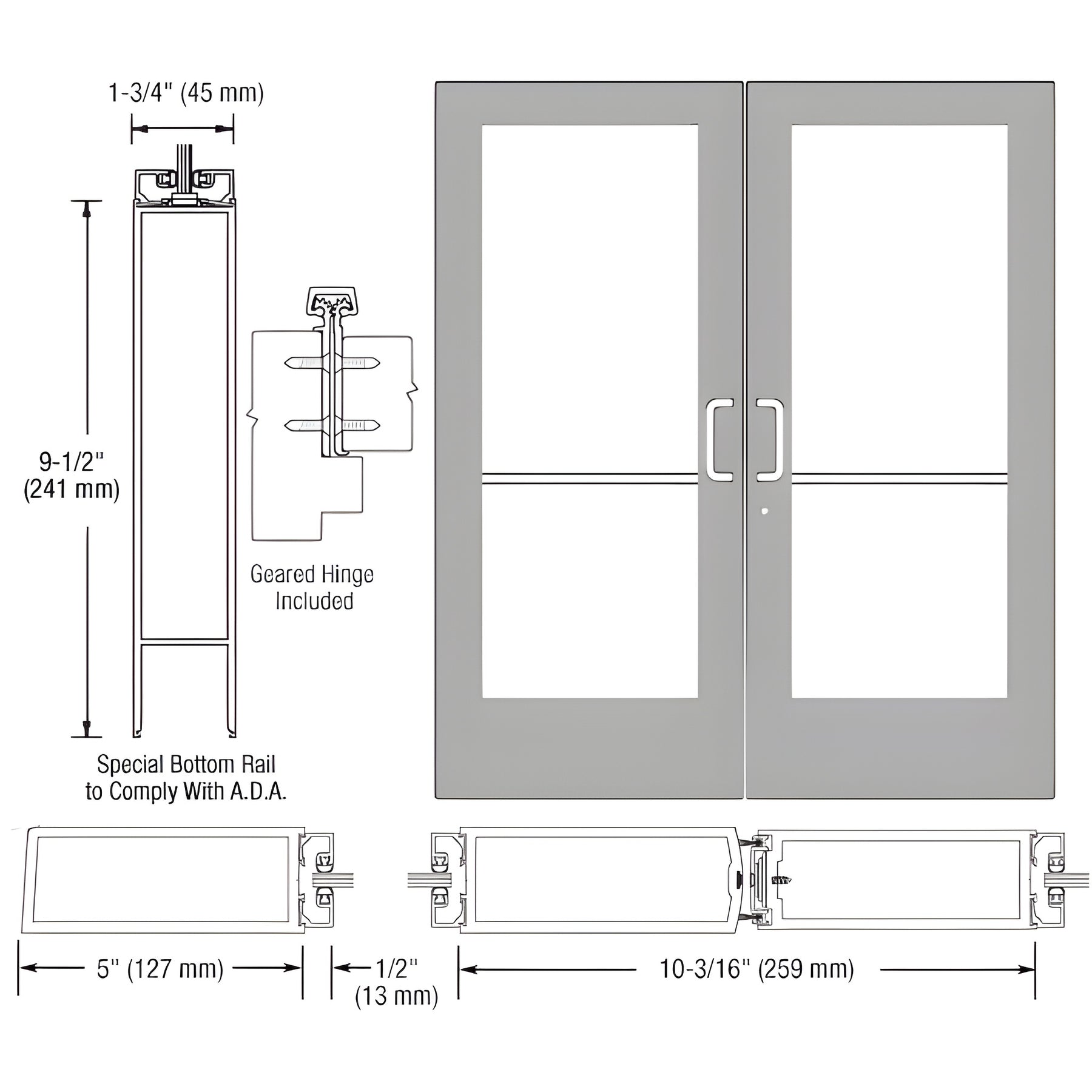

This CRL Custom Wide Stile Entrance Door (SKU: CD52811) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard construction includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is engineered for custom fabrication to accept optional commercial hardware and accessories commonly used on storefront and commercial glass entrance systems.
Customer must install included protruding hardware (handles, pivots, etc.) boxed separately to prevent damage in transit.
Highlights: custom wide stile entrance door, commercial glass entrance solution, ADA-compliant bottom rail, compatible with tempered insulating units.
Ready to specify? Contact CRL for ordering and custom hardware options.
Specifications
BIM Objects - rvt
