CRL-U.S. Aluminum 550 Geared-Hinge Wide Stile Custom Entrance Pair
CRL-U.S. Aluminum 550 Geared-Hinge Wide Stile Custom Entrance Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD52911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

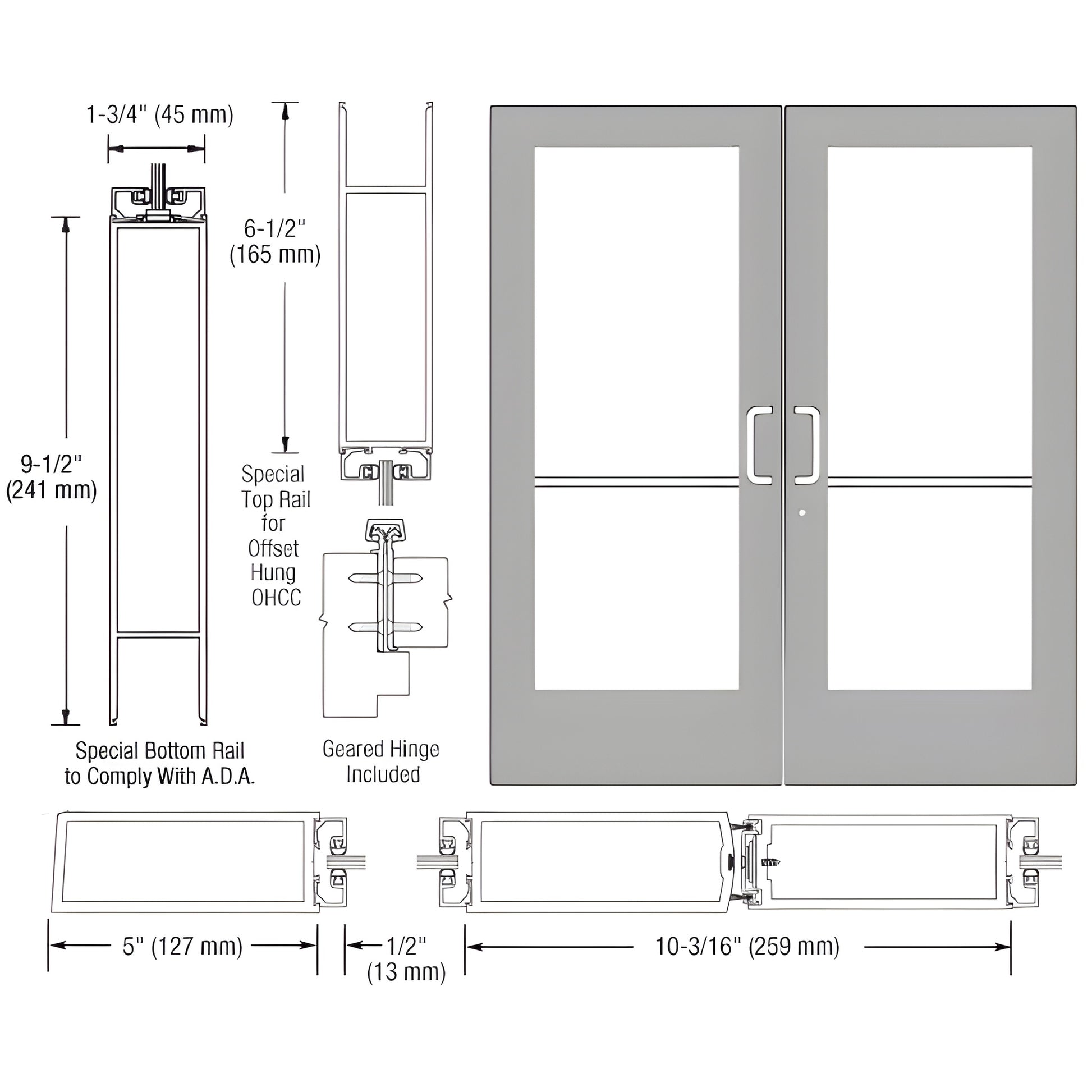

- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
CRL Custom Wide Stile Entrance Door — SKU: CD52911 — Built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard features include stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Custom fabrication options make this wide stile entrance door ideal for commercial storefronts, ADA-compliant entrances, and retrofit projects.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order the CRL Custom Wide Stile Entrance Door (SKU: CD52911) for a customizable, ADA-ready commercial door solution.
Specifications
BIM Objects - rvt
