CRL-U.S. Aluminum Narrow Stile Geared Hinge for Surface-Mount Closer
Item# CD21811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications
- Accepts 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)

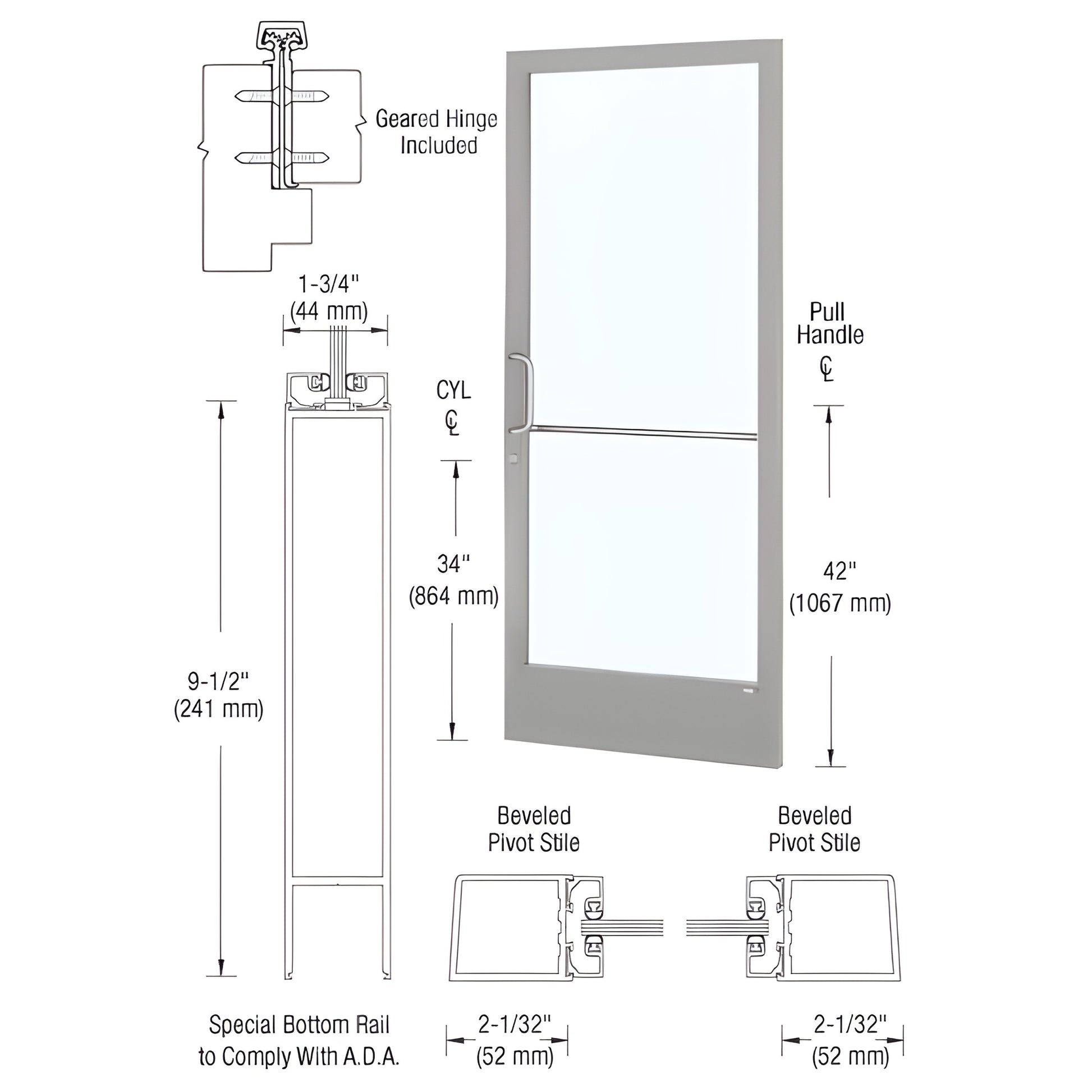

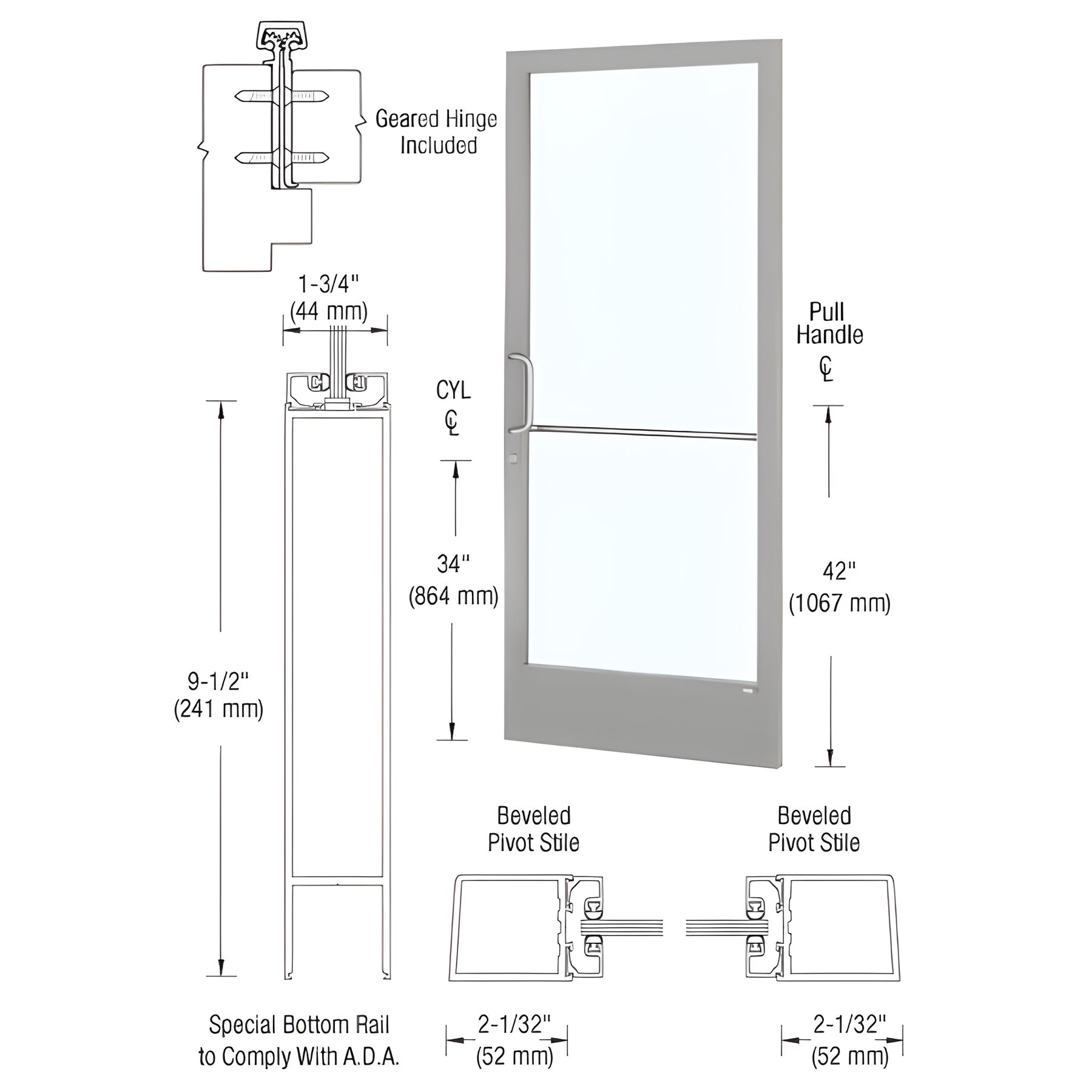

This CRL Custom Narrow Stile Entrance Door (SKU: CD21811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts, the narrow stile entrance door is ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass by others). The door is custom-fabricated to accommodate additional optional hardware applications for flexible installation and security configurations.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; actual colors may vary by monitor.
Order the CRL Custom Narrow Stile Entrance Door (CD21811) for a customizable, ADA-ready storefront solution.
