CRL-U.S. Aluminum Series 400 Clear Anodized Butt-Hinged Entry Door
CRL-U.S. Aluminum Series 400 Clear Anodized Butt-Hinged Entry Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

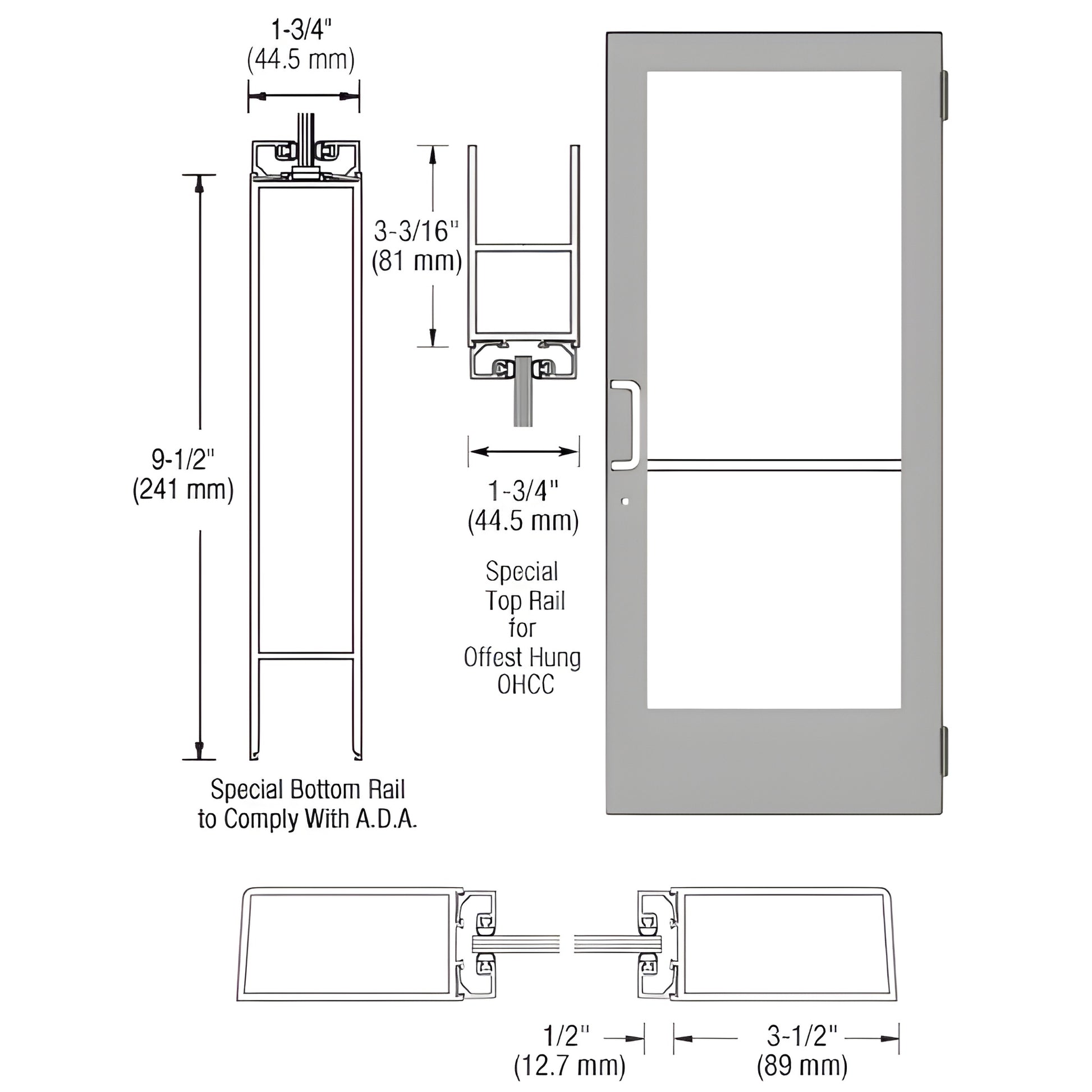

Custom Medium Stile Entrance Door with 3-1/2" (89 mm) stiles, 2-1/8" (54 mm) top rail, and 9-1/2" (241 mm) bottom rail. Designed for storefront and commercial entrance applications, this medium stile door ships with stiles prepared for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass by others). Built for quick customization to accept a wide range of optional hardware—ideal when you need an ADA-compliant commercial entrance or a tempered glass storefront door.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths less than 36" (914 mm) may not pass A.D.A. inspection.
SKU: CD41411 — Contact us to configure hardware options or request a quote.
Specifications
BIM Objects - rvt
