CRL-U.S. Aluminum 400 Clear Anodized Entrance Door - Closer Ready
CRL-U.S. Aluminum 400 Clear Anodized Entrance Door - Closer Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail — ADA-compliant for accessible threshold requirements
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

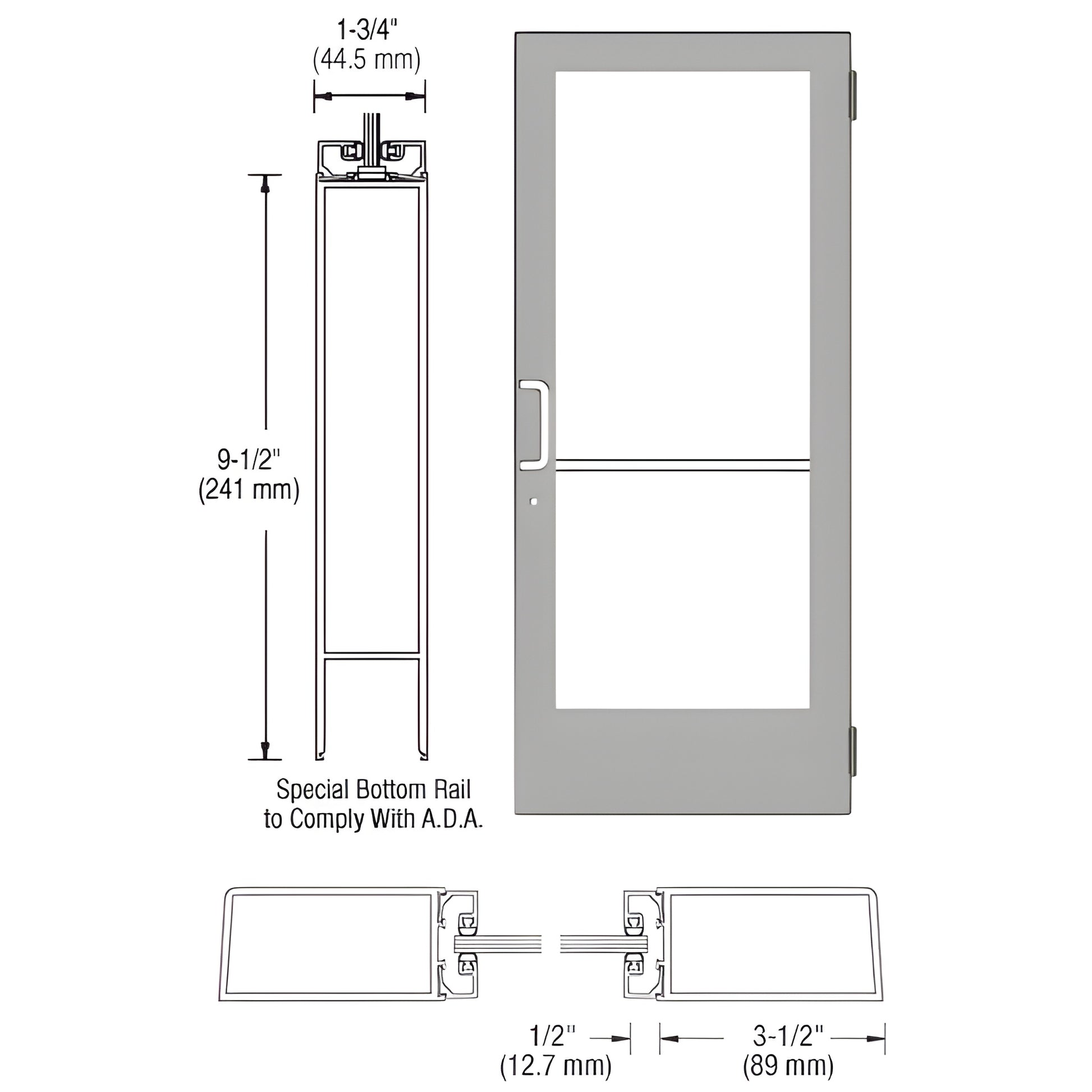

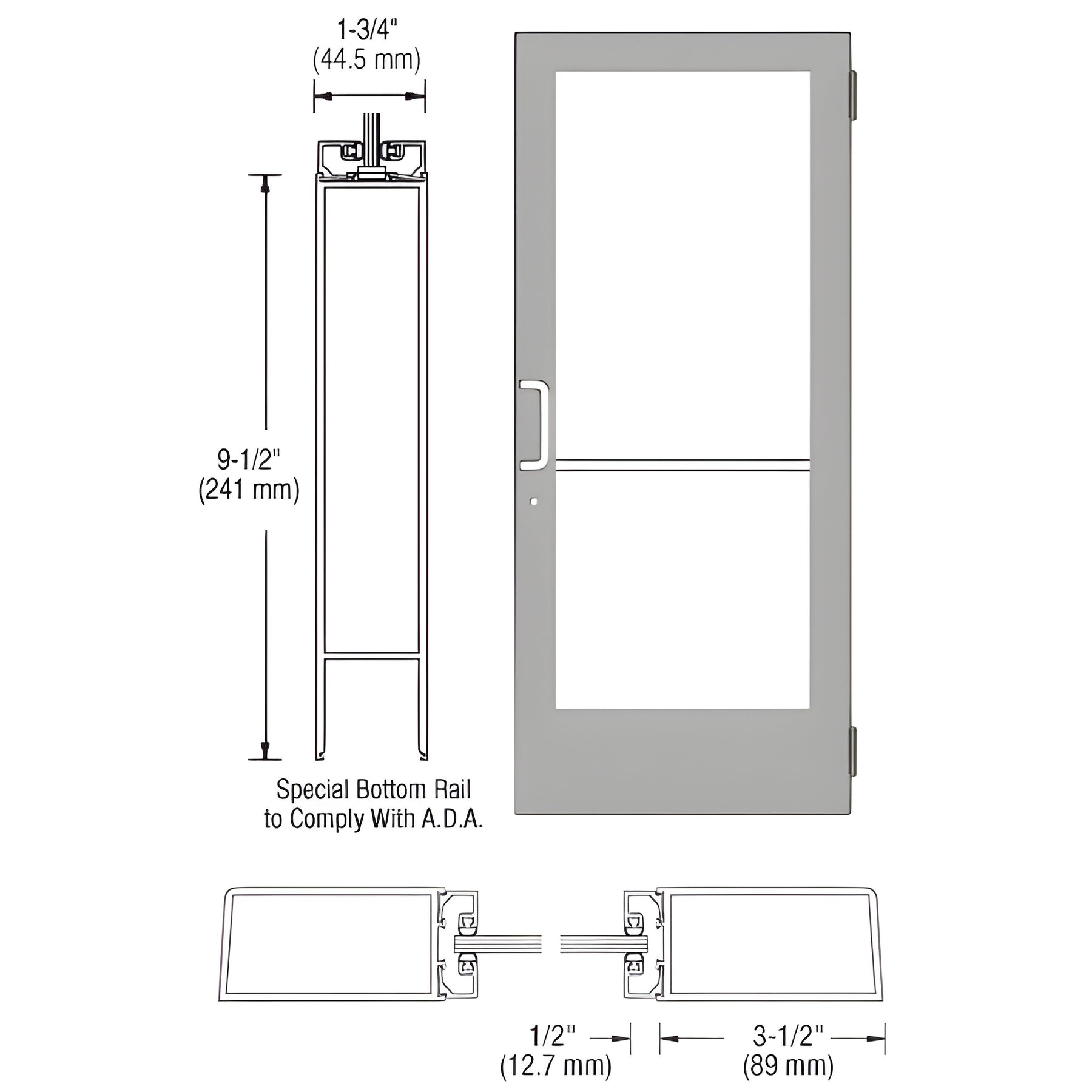

CRL Custom Medium Stile Entrance Door (SKU: CD41511) — Built with 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Door is factory-prepared for butt hinge hardware and glass stops sized for 1/4" tempered glass (glass supplied by others). Designed for custom hardware integration and commercial entrance use.
Note: Handles, pivots and other protruding hardware are boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
Order the CRL Custom Medium Stile Entrance Door (CD41511) today or contact us for hardware and glass options.
Specifications
BIM Objects - rvt
