CRL-U.S. Aluminum Series 400 Geared Hinge Door, Clear Anodized
CRL-U.S. Aluminum Series 400 Geared Hinge Door, Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail installed for ADA compliance
- Custom fabricated to accept a wide range of optional hardware applications

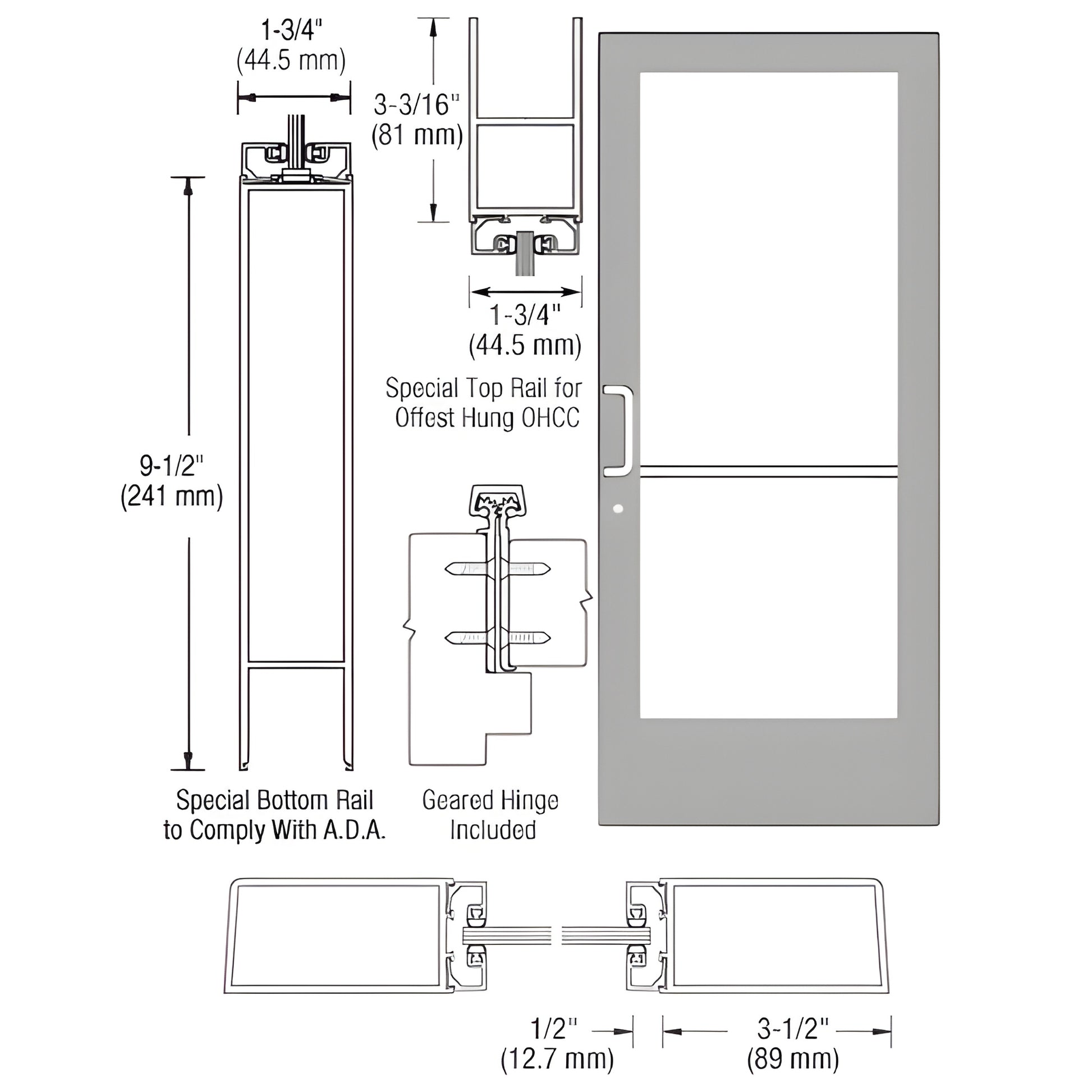

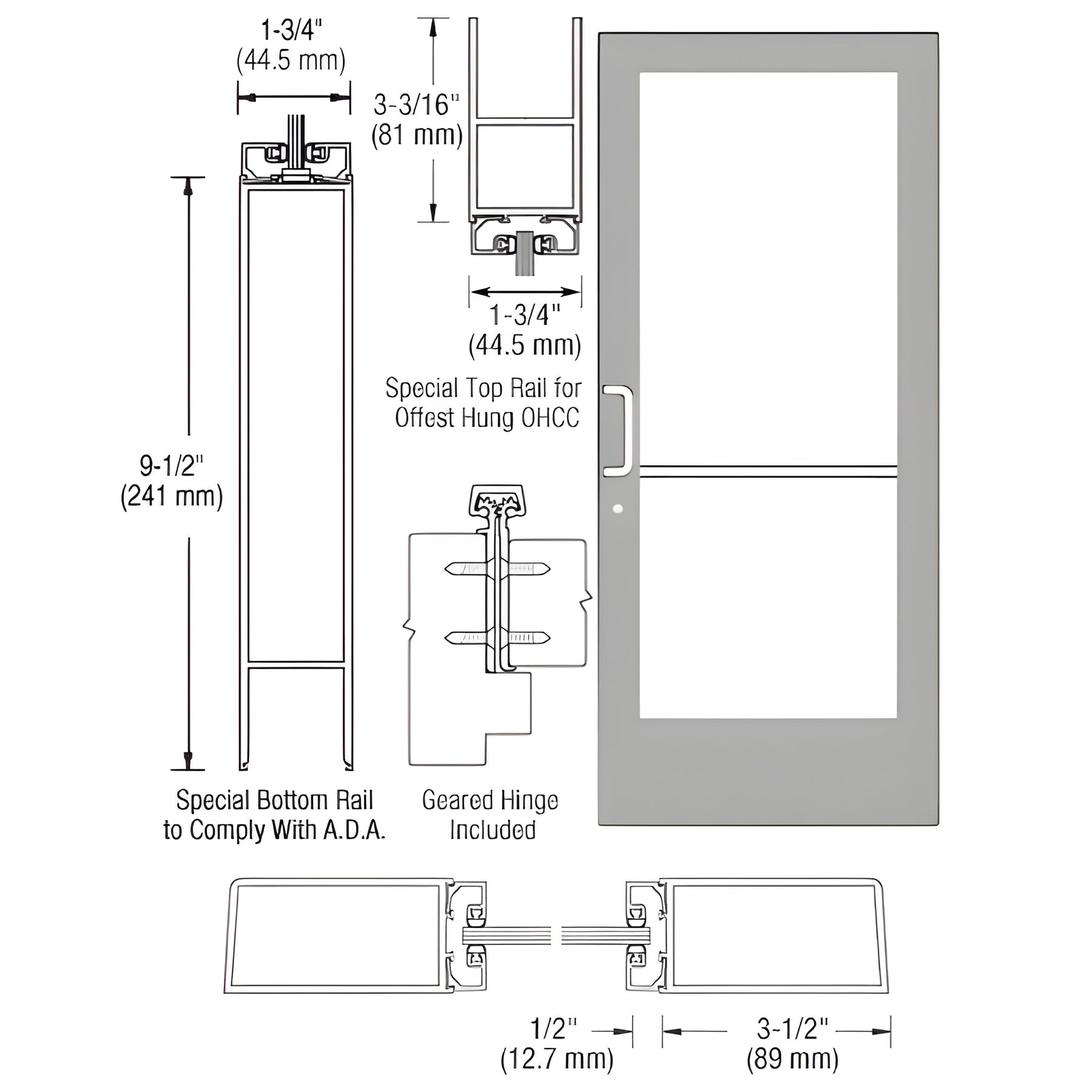

CRL Custom Medium Stile Entrance Door (SKU: CD41911) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Built for storefront and commercial use, this custom medium-stile door is ready for gear hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass supplied by others. Designed for custom hardware integration and keyed-alike cylinder convenience, it’s a reliable choice for commercial entrance doors requiring tempered glass compatibility.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not pass ADA inspection.
Order SKU CD41911 today or contact CRL for custom hardware options.
Specifications
BIM Objects - rvt
